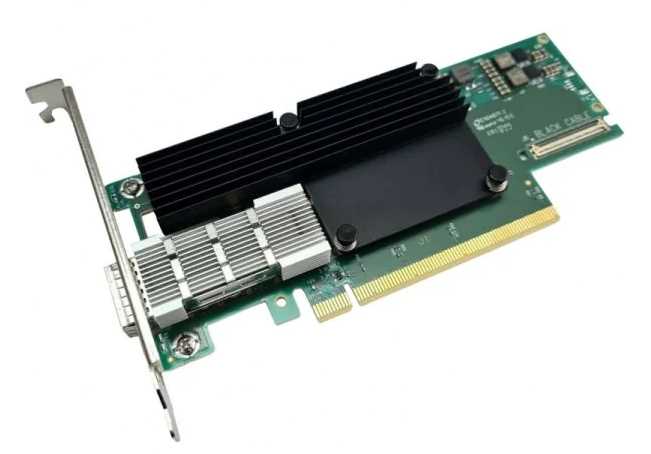

Mellanox ConnectX-6 VPI 200GbE HDR QSFP56 PCIe 4.0 Adapter

Brand:

The Mellanox MCX653105A-HDAT-SP ConnectX-6 VPI Network Adapter is a high-performance 200Gb/s networking solution featuring a single QSFP56 port, PCIe 4.0 x16 interface, and support for both HDR InfiniBand and 200Gb Ethernet. Designed for AI infrastructure, HPC clusters, cloud data centers, enterprise networking, and storage environments, it delivers ultra-low latency, advanced RDMA acceleration, intelligent hardware offloads, and exceptional throughput for mission-critical workloads.

OVERVIEW

  • The Mellanox MCX653105A-HDAT-SP ConnectX-6 VPI Network Adapter is engineered to provide industry-leading networking performance for modern data centers, artificial intelligence platforms, cloud computing environments, and high-performance computing infrastructures. Featuring a single QSFP56 port with support for up to 200Gb/s HDR InfiniBand and 200Gb Ethernet connectivity, this adapter enables ultra-fast communication between servers, storage systems, GPUs, and distributed applications.
  • Powered by NVIDIA Mellanox ConnectX-6 VPI architecture, the adapter supports both Ethernet and InfiniBand protocols, providing deployment flexibility across enterprise, research, and hyperscale environments. The PCIe Gen4 x16 interface maximizes bandwidth while minimizing bottlenecks for data-intensive applications such as machine learning, deep learning, financial analytics, cloud services, and scientific simulations.

USE CASES

  • Artificial Intelligence (AI) infrastructure
  • Machine learning clusters
  • High-performance computing (HPC)
  • Cloud and hyperscale data centers
  • Enterprise virtualization platforms
  • Financial trading environments
  • Scientific research computing
  • Storage networking and NVMe-oF
  • GPU-to-GPU communication
  • Big data analytics platforms
  • Software-defined networking (SDN)
  • KEY FEATURES

  • 200Gb/s HDR InfiniBand and 200Gb Ethernet connectivity
  • Single QSFP56 high-speed network port
  • PCI Express 4.0 x16 host interface
  • NVIDIA Mellanox ConnectX-6 VPI architecture
  • Supports both InfiniBand and Ethernet protocols
  • HDR InfiniBand networking support
  • Ultra-low latency performance
  • Advanced RDMA acceleration technology
  • GPUDirect and storage acceleration support
  • Hardware-based packet processing
  • Enterprise virtualization support
  • Intelligent traffic management
  • High-performance cloud networking
  • TECHNICAL SPECIFICATIONS

  • Product Model: MCX653105A-HDAT-SP
  • Product Series: Mellanox ConnectX-6 VPI
  • Product Type: VPI Network Adapter
  • Maximum Data Rate: 200Gb/s
  • Port Configuration: 1 x QSFP56 Port
  • Connector Type: QSFP56
  • Supported Ethernet Speeds: 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, 200GbE
  • Supported InfiniBand Speeds: SDR, DDR, QDR, FDR, EDR, HDR
  • Host Interface: PCI Express 4.0 x16
  • PCIe Compatibility: PCIe Gen3 and Gen4
  • Adapter Architecture: NVIDIA Mellanox ConnectX-6 VPI
  • Maximum Bandwidth: 200Gb/s
  • Latency: Sub 0.6 Microseconds
  • Message Rate: Up to 215 Million Messages per Second
  • RDMA Support: Yes
  • RoCE Support: Supported
  • SR-IOV Support: Yes
  • ASAP2 Virtual Switch Offload: Supported
  • Hardware-Based I/O Virtualization: Supported
  • GPUDirect Support: Supported
  • NVMe over Fabrics (NVMe-oF): Supported
  • Jumbo Frame Support: Supported
  • QoS Support: Supported
  • PXE Boot Support: Supported
  • UEFI Support: Supported
  • TCP/IP Offload: Supported
