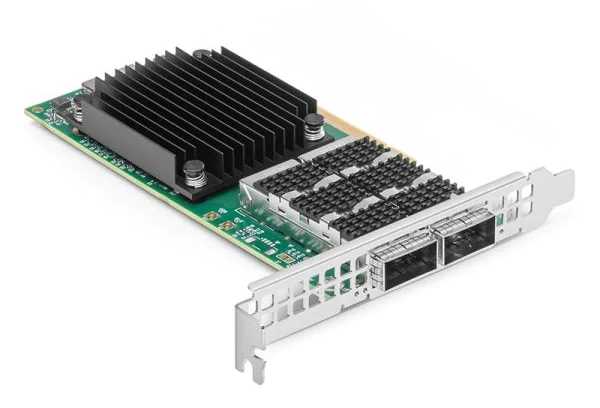

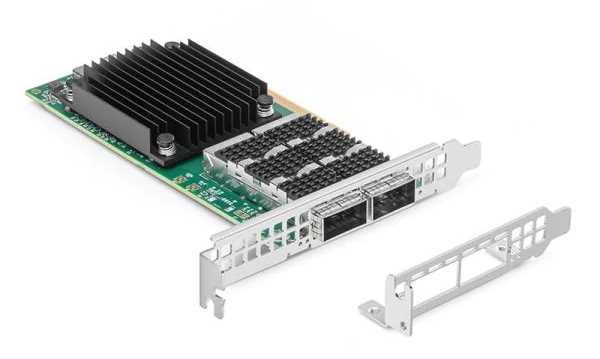

Mellanox ConnectX-6 Dx 100GbE Dual-Port QSFP56 Adapter

Brand:

The Mellanox MCX623106AN-CDAT ConnectX-6 Dx Network Adapter is a high-performance 100GbE Ethernet adapter featuring dual QSFP56 ports and a PCIe 4.0 x16 interface. Designed for enterprise data centers, cloud computing, AI workloads, storage networking, and high-performance computing environments, it delivers ultra-low latency, advanced acceleration technologies, and reliable high-bandwidth connectivity for modern network infrastructures.

OVERVIEW

The Mellanox MCX623106AN-CDAT ConnectX-6 Dx Network Adapter provides exceptional Ethernet performance for organizations requiring scalable, high-speed connectivity across demanding enterprise and cloud environments. Featuring dual QSFP56 ports supporting up to 100GbE connectivity and PCIe Gen4 x16 technology, this adapter enables faster data transfer, lower latency, and improved workload efficiency.

Built on NVIDIA Mellanox ConnectX-6 Dx architecture, the adapter offers intelligent hardware acceleration, advanced packet processing, virtualization support, and optimized network performance. The No Crypto version is ideal for deployments requiring compliance with specific regulatory or export requirements while maintaining enterprise-class networking capabilities.

USE CASES

  • Cloud and hyperscale data centers
  • AI and machine learning infrastructure
  • High-performance computing (HPC) clusters
  • Enterprise virtualization environments
  • Storage networking and NVMe over Fabrics
  • Financial trading and analytics platforms
  • Big data processing environments
  • High-speed server interconnects
  • Software-defined networking deployments
  • Research and scientific computing
  • Enterprise application acceleration
  • KEY FEATURES

  • Dual-port 100GbE Ethernet connectivity
  • 2 x QSFP56 high-speed network ports
  • PCI Express 4.0 x16 host interface
  • NVIDIA Mellanox ConnectX-6 Dx architecture
  • No Crypto version for regulatory compliance
  • Ultra-low latency networking performance
  • Advanced hardware offload capabilities
  • High packet processing efficiency
  • Virtualization and cloud-ready networking
  • Optimized for AI and HPC workloads
  • Intelligent traffic acceleration
  • TECHNICAL SPECIFICATIONS

  • Product Model: MCX623106AN-CDAT
  • Product Series: Mellanox ConnectX-6 Dx
  • Product Type: Ethernet Network Adapter
  • Network Technology: 100 Gigabit Ethernet (100GbE)
  • Port Configuration: 2 x QSFP56 Ports
  • Connector Type: QSFP56
  • Host Interface: PCI Express 4.0 x16
  • Adapter Architecture: NVIDIA Mellanox ConnectX-6 Dx
  • Maximum Data Rate: Up to 100GbE per Port
  • Bus Standard: PCIe Gen4
  • Network Protocol: Ethernet
  • RDMA Support: Yes
  • RoCE Support: RoCE v2
  • SR-IOV Support: Yes
  • Virtualization Acceleration: Supported
  • Hardware Offload Engine: Supported
  • TCP/IP Offload: Supported
  • Overlay Network Offloads: VXLAN, NVGRE, GENEVE
  • GPUDirect Support: Supported
  • Product Model: MCX623106AN-CDAT
  • Product Series: Mellanox ConnectX-6 Dx
  • Product Type: Ethernet Network Adapter
  • Network Technology: 100 Gigabit Ethernet (100GbE)
  • Port Configuration: 2 x QSFP56 Ports
  • Connector Type: QSFP56
  • Host Interface: PCI Express 4.0 x16
  • Adapter Architecture: NVIDIA Mellanox ConnectX-6 Dx
  • Maximum Data Rate: Up to 100GbE per Port
  • Bus Standard: PCIe Gen4
  • Network Protocol: Ethernet
  • RDMA Support: Yes
  • RoCE Support: RoCE v2
  • SR-IOV Support: Yes
  • Virtualization Acceleration: Supported
  • Hardware Offload Engine: Supported
  • TCP/IP Offload: Supported
  • Overlay Network Offloads: VXLAN, NVGRE, GENEVE
  • GPUDirect Support: Supported
