Home Networking Conferencing, Phones Speakerphones Mackie SRM450v3 12" 1000W Powered PA Loudspeaker System

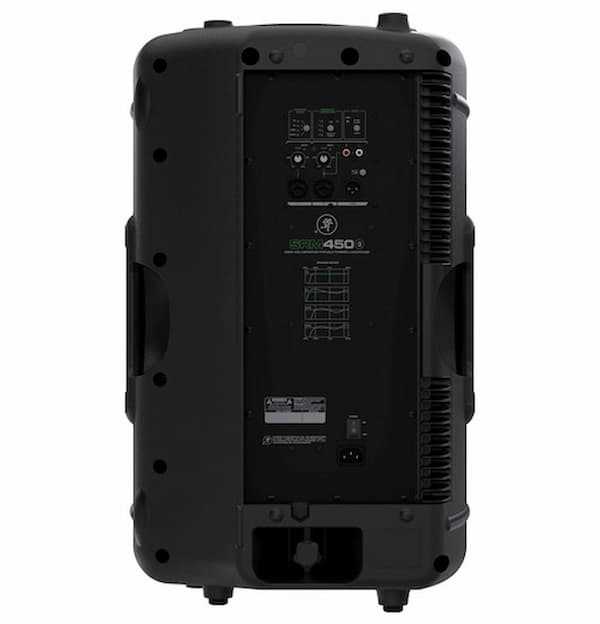

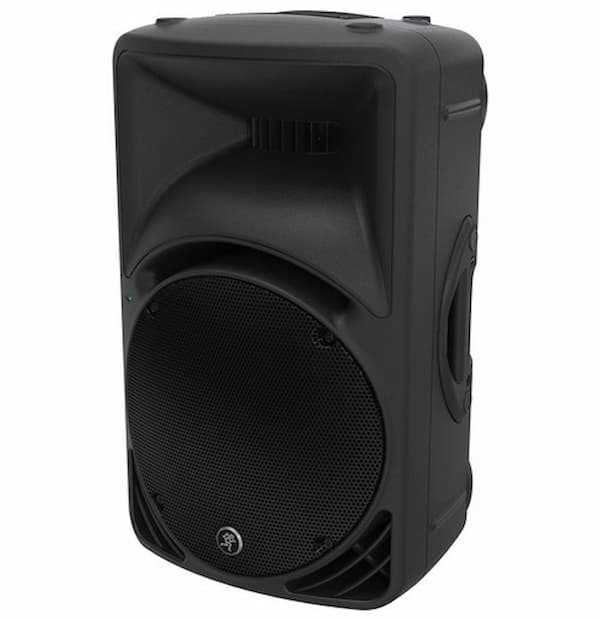

Mackie SRM450v3 12" 1000W Powered PA Loudspeaker System


Brand:

Specifications

   Product details:
  • Warranty: 1 Year
  • Brand: Mackie
  • Model: SRM450v3
   Key Features:
  • Portable PA for Live Sound Applications
  • Built-In DSP for Speaker Voicing Modes
  • Integrated Feedback Destroyer
  • 2-Channel Mixer with Gain Controls
  • Works with Mic, Line & Hi-Z Signals
  • Channel 2 Offers XLR & Stereo RCA Inputs
  • Built-In Limiter for System Protection
  • Use as Angled Floor Monitor
  • Pole Cup for Mounting on Speaker Stand
  • Includes Power Cord
   Technical Specifications:
  • Configuration: Active 2-Way
  • Enclosure Type: Bass-Reflex Loudspeaker
  • Total Power Capacity: 500 W RMS
  • 1000 W Peak
  • Amplifier Power Rating: LF:400 W RMS,800 W Peak, HF:100 W RMS,200 W Peak
  • Amplifier Class: LF:Class-D,HF:Class-AB
   Drivers:
  • HF Driver: 1 x 1.4" / 36 mm Titanium Dome Tweeter
  • MF Driver: None
  • LF Driver: 1 x 12" / 304.8 mm Woofer
  • Magnet: HF:Ferrite,LF:Ferrite
   Performance:
  • Frequency Response: 47 Hz to 20 kHz -3 dB
  • 42 Hz to 23 kHz -10 dB
  • Maximum SPL: 128 dB SPL
  • Coverage Angle: 90° H x 45° V
  • I/O Impedance: Input:
  • 8 Kilohms (Balanced)
  • 1 Megohms (Unbalanced)
  • 25 Kilohms (Unbalanced)
  • THD: <1%
  • Protections: Excursion, Output Limiter, Thermal
   Connectivity:
  • Audio I/O: 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
  • 1 x Stereo RCA Unbalanced Aux Input
  • 1 x XLR 3-Pin Male Balanced Line Thru
  • Network I/O: None
  • USB: None
  • Wireless Connectivity: None
   Signal Processing:
  • Crossover: 3 kHz
  • EQ: None
  • Parametric EQ: None
  • Semi-Parametric EQ: None
  • Dynamic Processing: Peak Limiter
  • Alignment Delay: None
  • Phase Adjustment: None
  • Digital Signal Processing: Venue Settings, Voicing Modes
   Power:
  • AC Input Power: Factory Selectable:
  • 100 to 120 VAC, 50 / 60 Hz
  • AC Power Connector: 1 x IEC
  • Power Consumption: 160 W
   Physical:
  • Mounting: 1 x Pole Socket (Bottom)
  • 3 x M10 Fly Point
  • Monitor Angle: 40°
  • Handles: 1 x Each Side
  • Construction Material: Metal Grille, Polypropylene
  • Dimensions: 26.1 x 16 x 14.8" / 663 x 406 x 376 mm
  • Weight: 37 lb / 16.8 kg
   Packaging Info:
  • Package Weight: 41.7 lb
  • Box Dimensions (LxWxH): 27.5 x 16.5 x 15




Features

Brand:
Mackie
GTIN, UPC, EAN, JAN or ISBN:
0663961044225
Warranty:
1 Year
