Home Networking Network Switches Linksys 8-Port Business Desktop Gigabit Switch- LGS108-AP

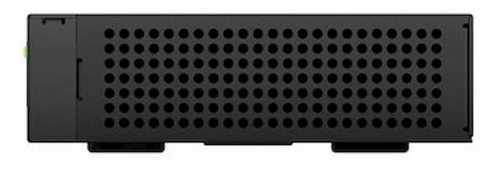

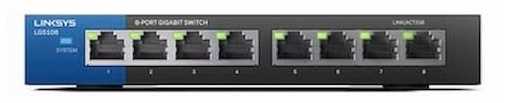

Linksys 8-Port Business Desktop Gigabit Switch- LGS108-AP


Brand:

Specifications

   Product details:
  • Brand: Linksys
  • 5 Years Warranty
  • Model: LGS108

    Network Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az

    Ports:
  • 8 Gigabit Ethernet (10/100/1000) Ports

    LEDs:
  • Link and activity indicators

    Performance:
  • Full line rate and forwarding rate of 64B frame at:
  • 1.488 Mpps for 1000M port
  • 0.1488 Mpps for 100M port
  • 0.01488 Mpps for 10M port

    MAC Address Table Size:
  • 4,000 entries

    Bandwidth:
  • 16 Gbps (non-blocking)

    Fans:
  • None

    Minimum System Requirements:
  • Connected devices need Ethernet connectivity and Ethernet cables

    Dimensions (LxWxH):
  • 168 x 90 x 26 mm

    Weight:
  • 0.358 kg

    Power:
  • 100-240VAC, 50/60Hz, 5VDC

    Power Consumption:
  • 0.997W/3.355W

    Power Consumption:
  • 1.07W / 3.53W

    Power Input:
  • 12V 0.5A

    Power Saving:
  • Cable connected detection, cable length detection, sleep mode.

    2 Monitors:
  • External

    Operating Temperature:
  • 0–50°C

    Storage Temperature:
  • -40–70°C

    Operating Humidity:
  • 10–90% (non-condensing)

    Storage Humidity:
  • 10–90% (non-condensing)

    Mounting:
  • Wall

    Regulatory Compliance:
  • FCC Class B, CE

  • Features:
  • Wired connection speed up to 1000 Mbps
  • 8 Gigabit Ethernet auto-sensing ports
  • Easy plug & play connection
  • QoS
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard





Features

Brand:
Linksys
Warranty:
5 Years
