Lenovo ThinkSystem SR630 V3 Rack Server (Black)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: Lenovo
  • Model: SR630

    SPECIFICATION
  • Form Factor: Form Factor 1U rack
  • Processor: Up to 2x 4th Gen Intel® Xeon® Scalable processors, up to 60 cores and 350W TDP

    Drive Bays:
  • Up to 4x 3.5" or 12x 2.5" or 16x EDSFF E1.S drives

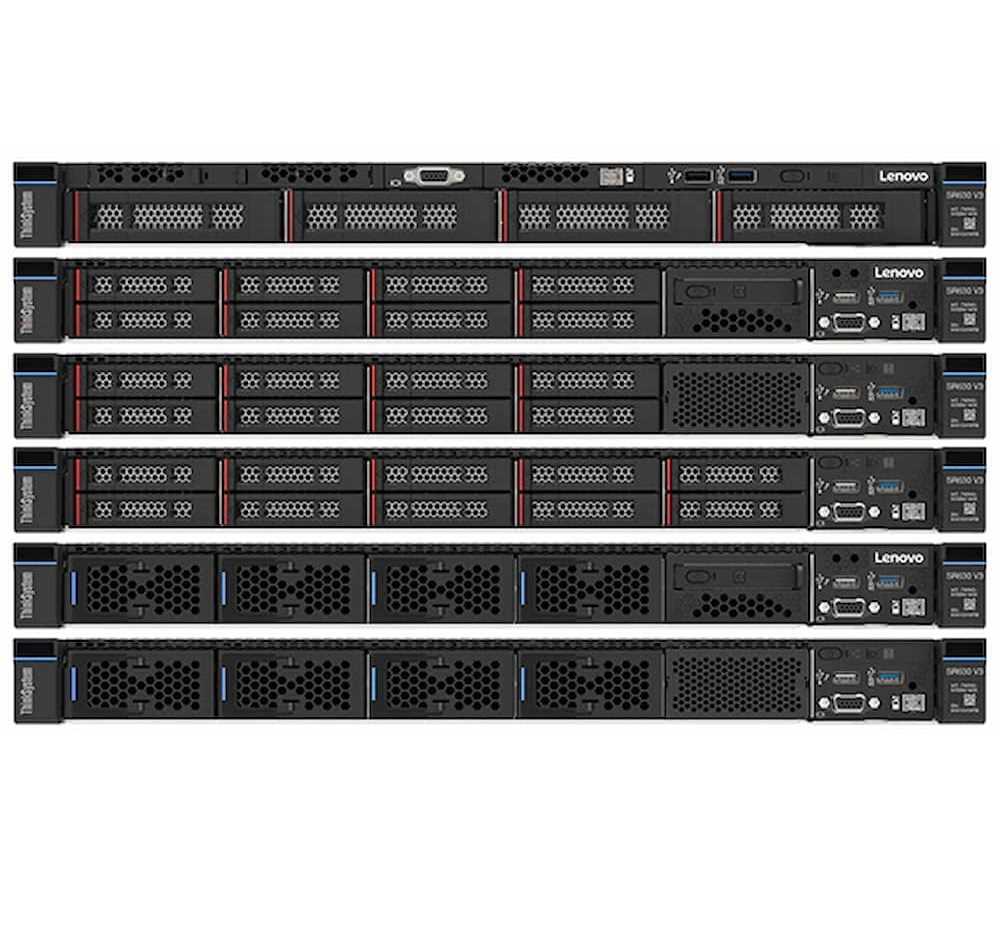

  • Front: up to 4x 3.5" / 10x 2.5” /16x EDSFF E1.short hot swap drives
  • Rear: 2x 2.5"; 7mm SATA/NVMe hot-swap boot drives, support RAID
  • Internal 2x M.2 SATA/NVMe boot drives, support RAID
  • Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
  • Expansion Slots: Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
  • GPUs: Up to 4x single-width GPUs or 2x double-width GPUs
  • Network Interface: LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters

    Ports:

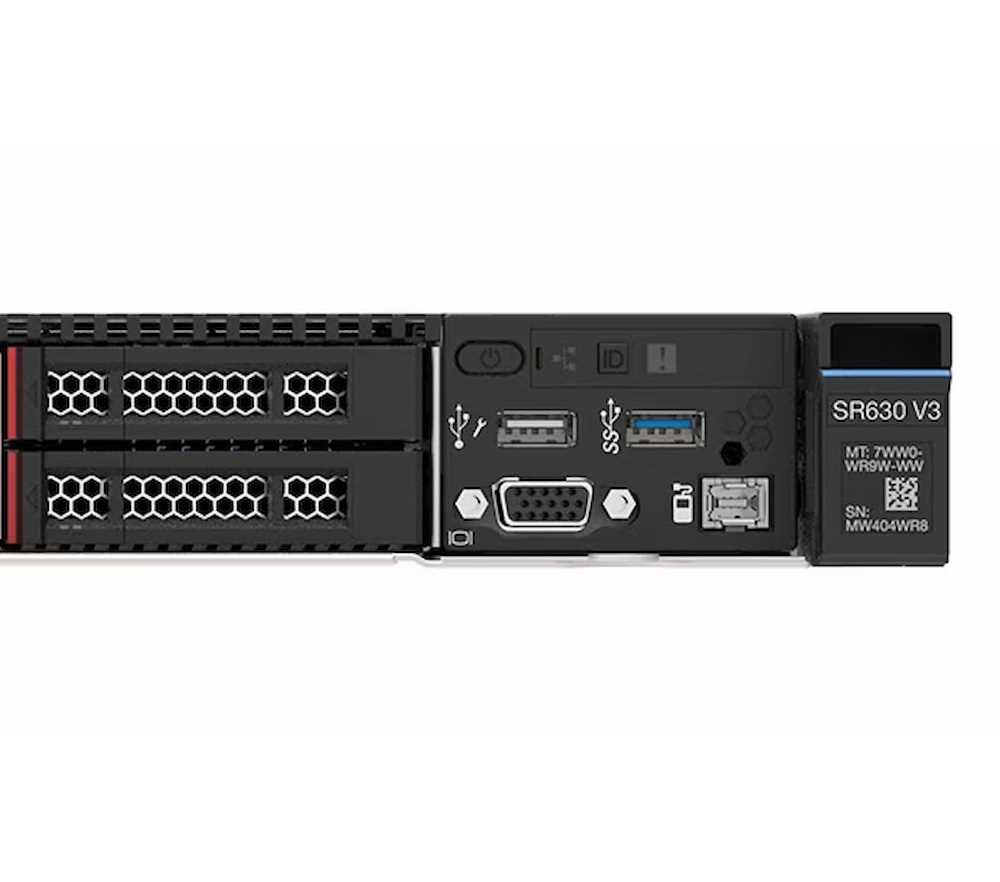

  • Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)

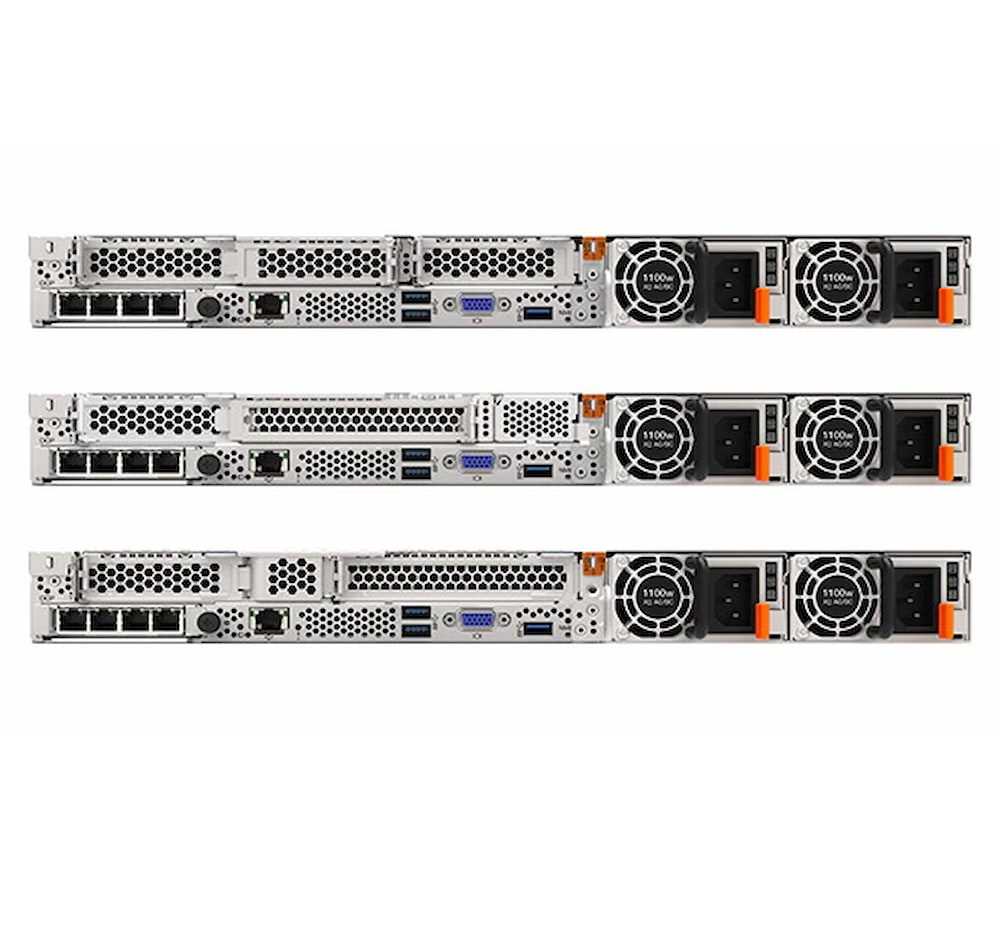

  • Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)
  • HBA/RAID Support: SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
  • Power: Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum
  • Systems Management: Lenovo X Clarity Controller

Features

Brand:
Lenovo
Color:
Black
Conditions:
New
Warranty:
3 Years
