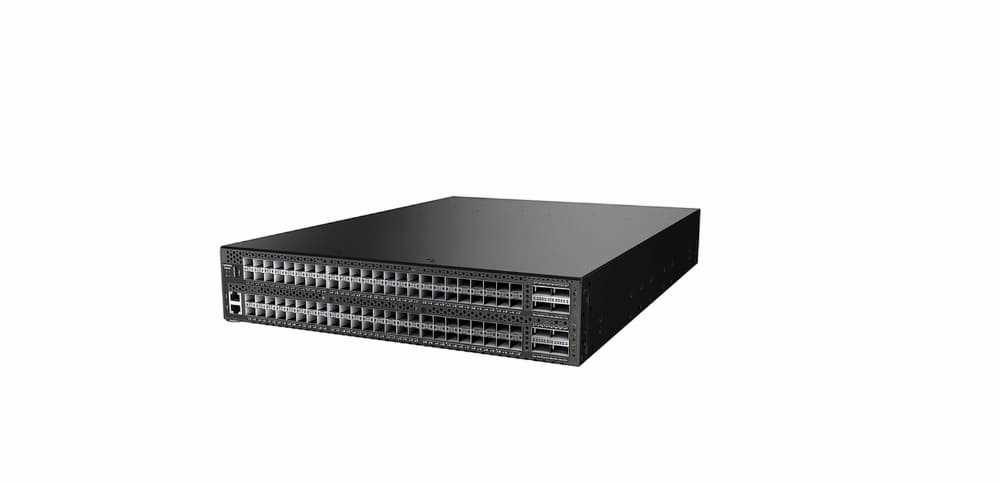

Lenovo ThinkSystem DB730S FC SAN Switch (Grey)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: Lenovo
  • Color: Grey
       Specification:
       Model:
  • 64G: 48 active ports with 64Gbps SWL FC transceivers (R airflow)
       Fibre Channel ports:
  • ?128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports
  • ?48-port base configuration; additional ports are enabled with two 24-port SFP+ PODs (Ports on Demand), plus a 32-port SFP-DD POD (16 2x64G SFP-DD transceivers), scaling the switch from 48 ports to 128 ports.
       Port on Demand Options:
  • 24-Port SW License with 64Gbps SWL FC transceivers
  • 32-Port SW License with 64Gbps SWL SFP-DD FC transceivers
  • Aggregate bandwidth/td>: 8.192Tb/s
  • Maximum fabric latency: Latency for locally switched ports is 460 ns (including FEC).
       Media types (Brocade transceivers required):
  • 64G FC: hot-pluggable SFP-DD, SN connector; 64Gb/s SWL.
  • 64G FC: hot-pluggable SFP+, LC connector; 64Gb/s SWL, LWL 10 km, ELWL 25 km.
  • 32G FC: hot-pluggable SFP+, LC connector; 32Gb/s SWL, LWL 10 km, ELWL 25 km.
  • 10G FC: hot-pluggable SFP+, LC connector; 10Gb/s SWL, LWL 10 km.
  • Fibre Channel distance is subject to fiber-optic cable and port speed.
  • Rack-mount rail kits: Fixed rail kit is included standard, Mid-mount rack kit optional
       Software Included:
  • Enterprise Software: Trunking, Fabric Vision, Extended Fabric and Integrated Routing
       Enclosure:
  • (R) Back-to-front airflow; non-port-side intake; power from back, 2U
  • (F) Front-to-back airflow; non-port-side exhaust; power from back, 2U

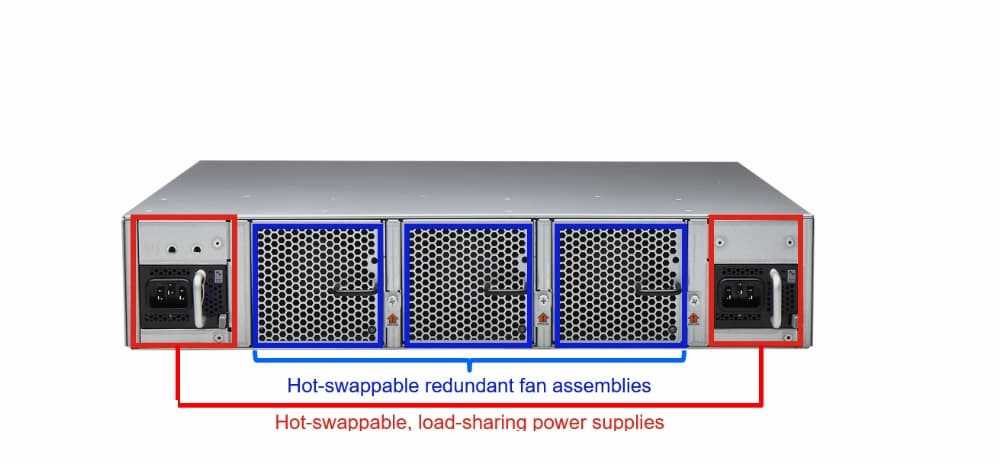

  • Power supply: Dual, hot-swappable redundant power supplies with integrated system cooling fans and status LEDs. 80 Plus Gold



Features

Brand:
Lenovo
Color:
Grey
Conditions:
New
Warranty:
3 Years
