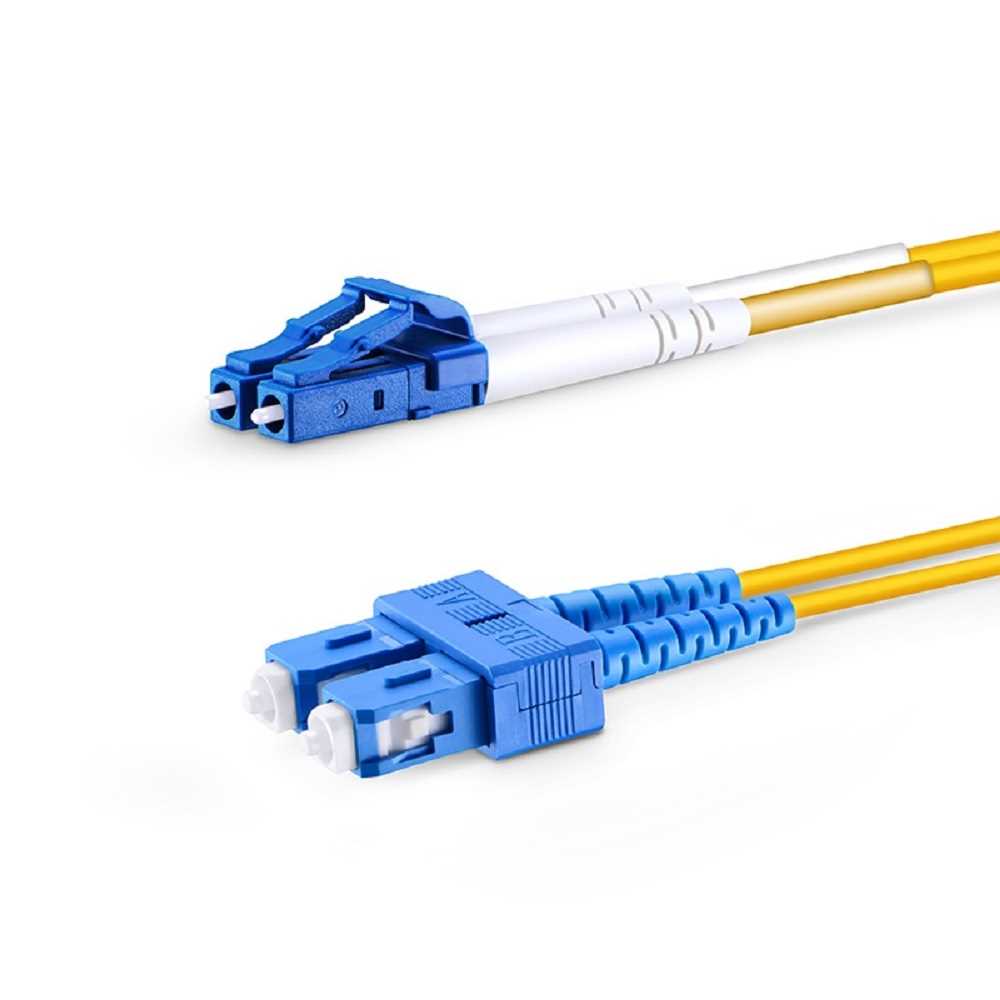

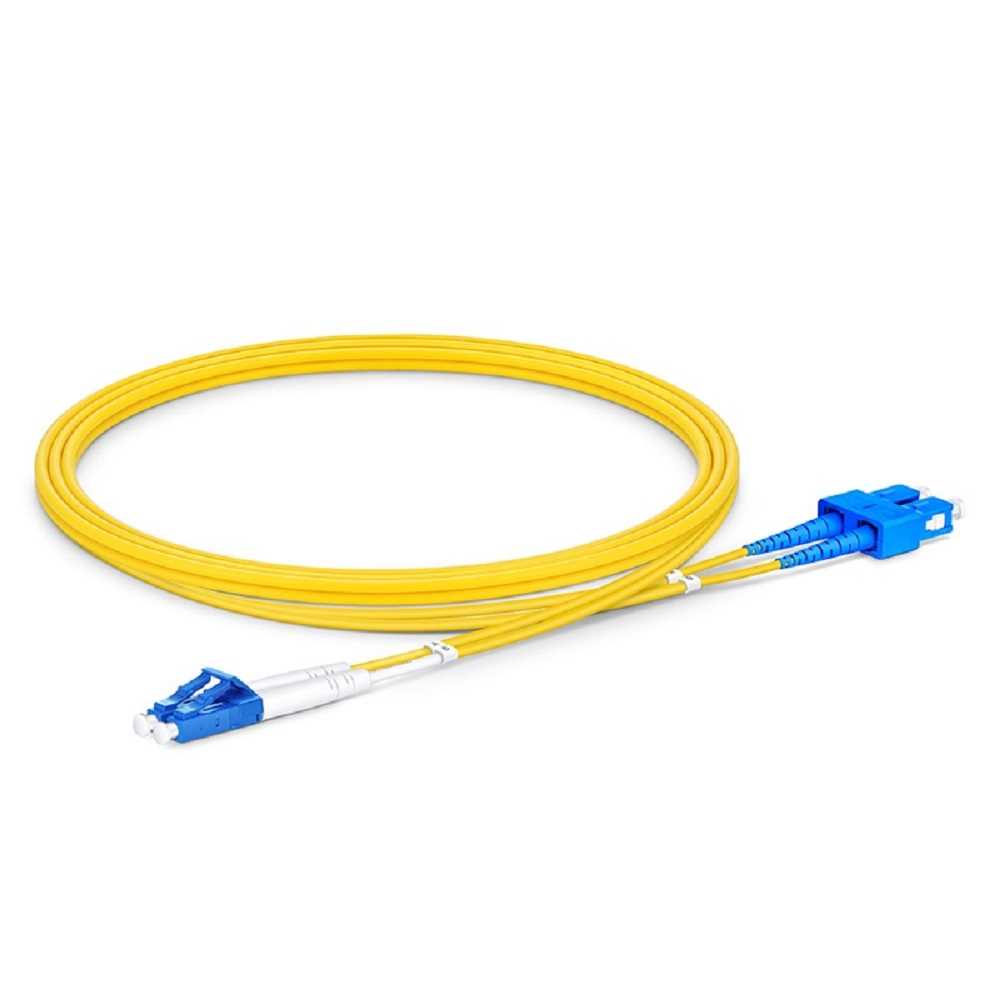

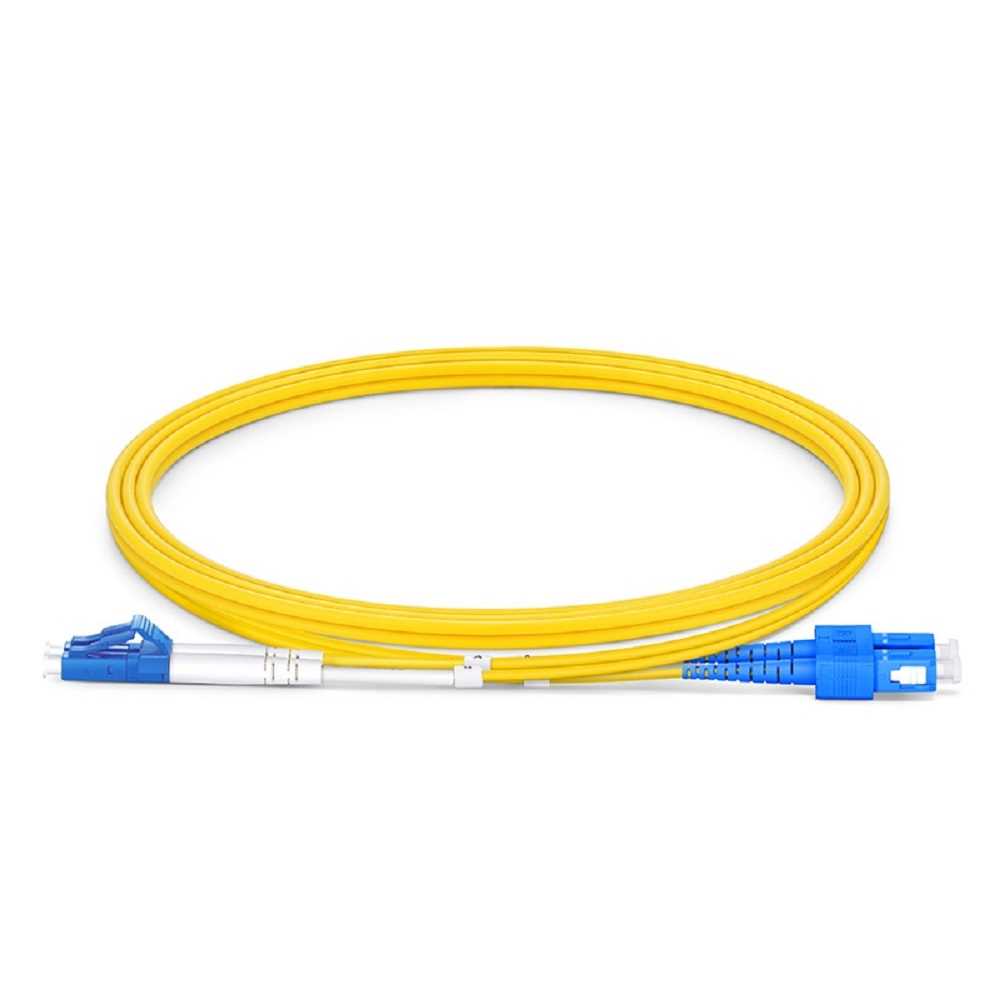

Home Networking Power LC UPC to SC UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm 1m (3ft) Patch Cable with Fiber Optic (Yellow & Blue)

LC UPC to SC UPC Duplex OS2 Single Mode PVC (OFNR) 2.0mm 1m (3ft) Patch Cable with Fiber Optic (Yellow & Blue)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)

    KEY FEATURES
  • PVC (Riser) Flame-retardant Jacket
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)

    SPECIFICATIONS
  • Connector Type: LC UPC to SC UPC
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/ 125µm
  • Wavelength: 1310/ 1550nm
  • Insertion Loss: =0.3dB
  • Return Loss: =50dB
  • Min. Bend Radius (Fiber Core): 10mm
  • Min. Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm: 0.22 dB/km
  • Fiber Count: Duplex
  • Cable Diameter: 2.0mm
  • Cable Jacket: PVC
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -20-70 Degree C
  • Storage Temperature: -40-80 Degree C

Features

Brand:
No Brand
Color:
Yellow & Blue
Conditions:
New
Warranty:
No Warranty
