Home Networking Power LC UPC to LC UPC Duplex OS2 Single Mode PVC 2.0mm 1m (3ft) Patch Cable with Fiber Optic (Yellow)

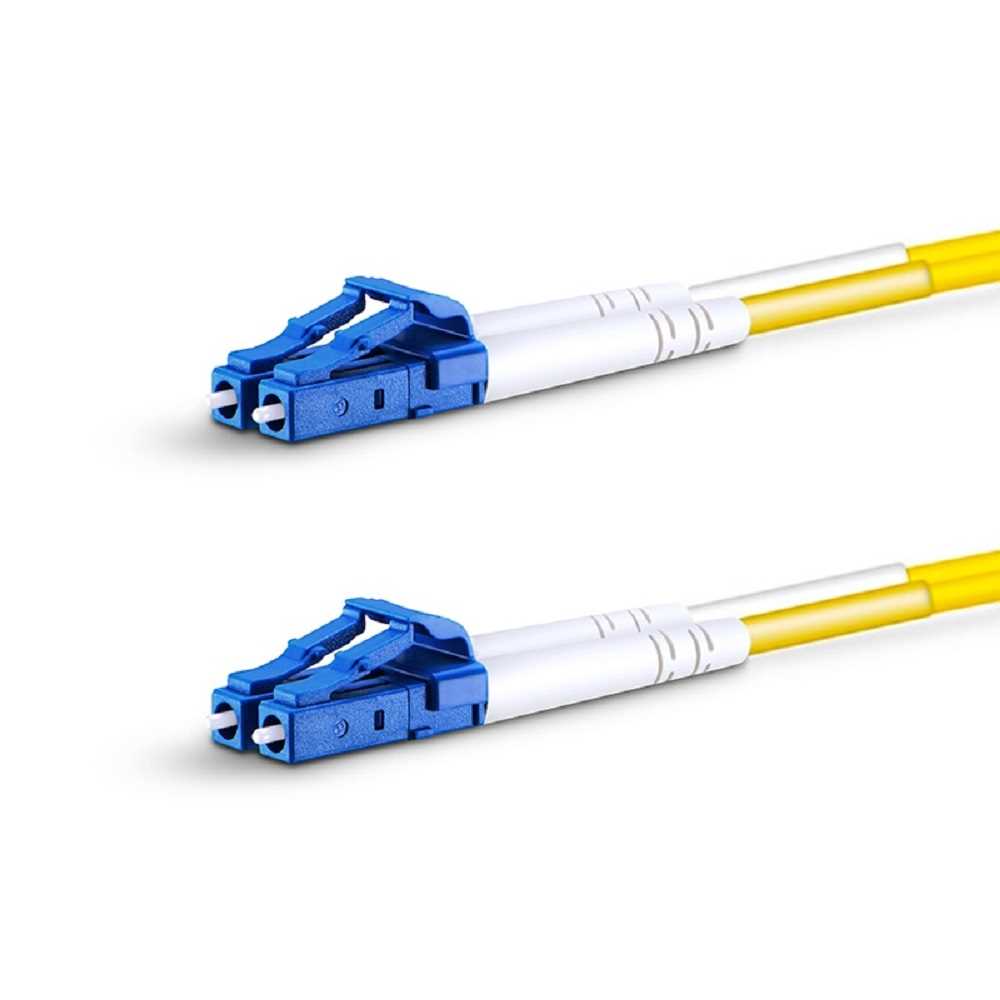

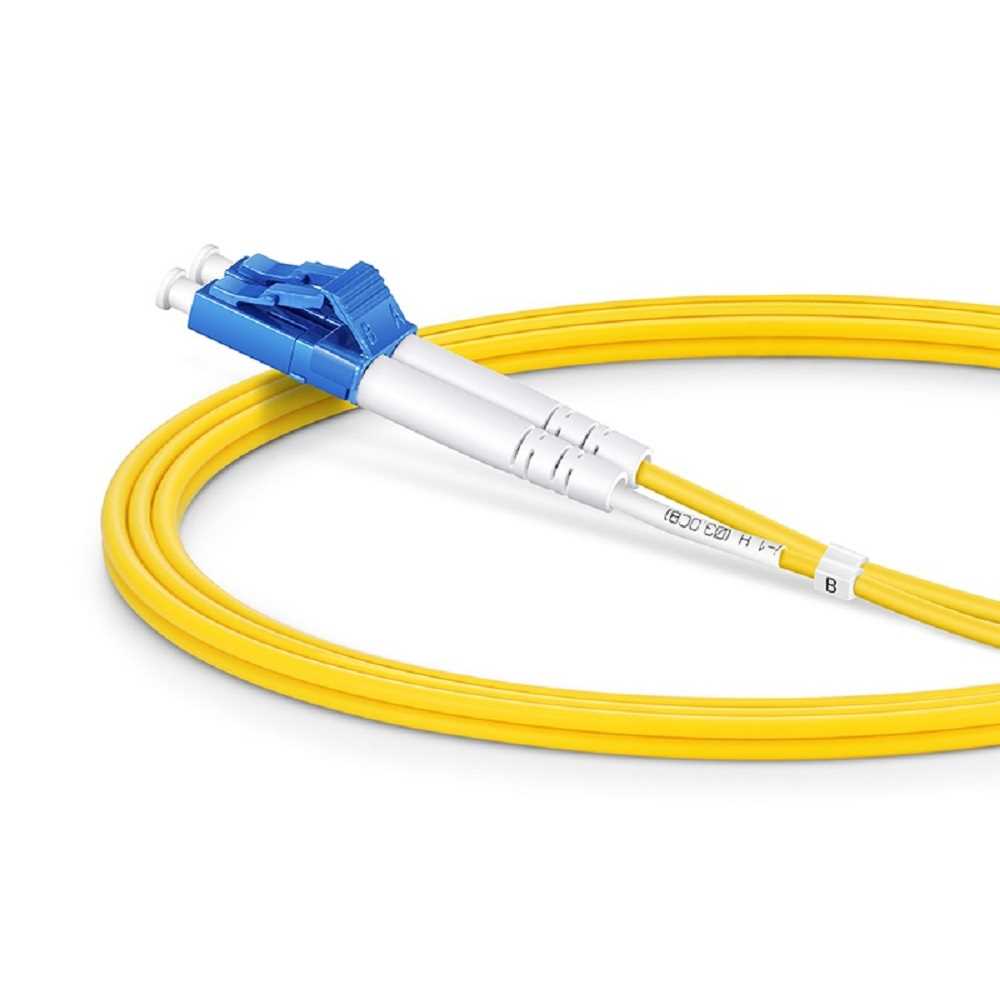

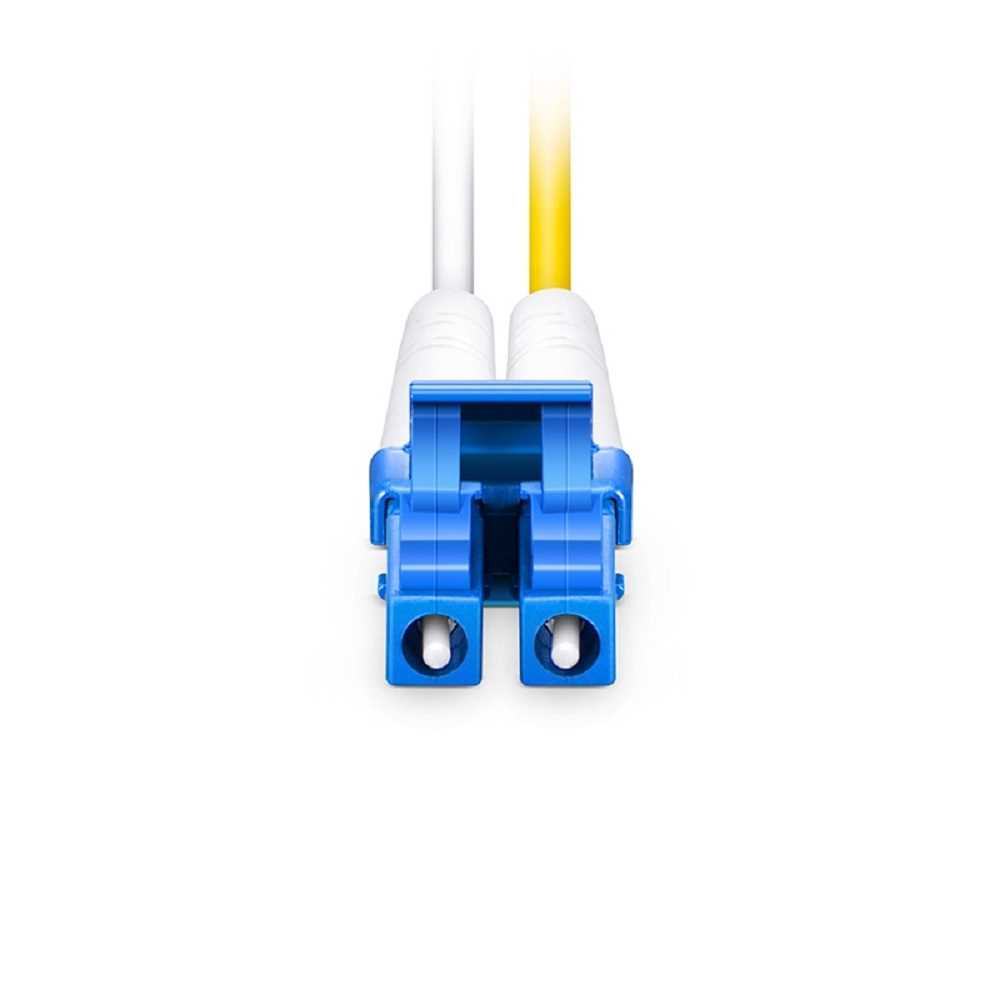

LC UPC to LC UPC Duplex OS2 Single Mode PVC 2.0mm 1m (3ft) Patch Cable with Fiber Optic (Yellow)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)

    KEY FEATURES
  • PVC (Riser) Flame-retardant Jacket
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)

    SPECIFICATIONS
  • Connector Type: LC UPC to LC UPC
  • Fiber Grade: G.657.A1 (Compatible with G.652.D)
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/ 1550nm
  • Insertion Loss: =0.3dB
  • Return Loss: =50dB
  • Min. Bend Radius
  • (Fiber Core): 10mm
  • Min. Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Attenuation at 1310 nm: 0.36 dB/km
  • Attenuation at 1550 nm: 0.22 dB/km
  • Fiber Count: Duplex
  • Cable Diameter: 2.0mm
  • Cable Jacket: PVC
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -20-70 Degree C

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
