Home Networking Wireless Accessories LC UPC to LC UPC Duplex OS2 Single Mode, 24 Fibers Indoor Tight-Buffered Breakout Cable - Yellow

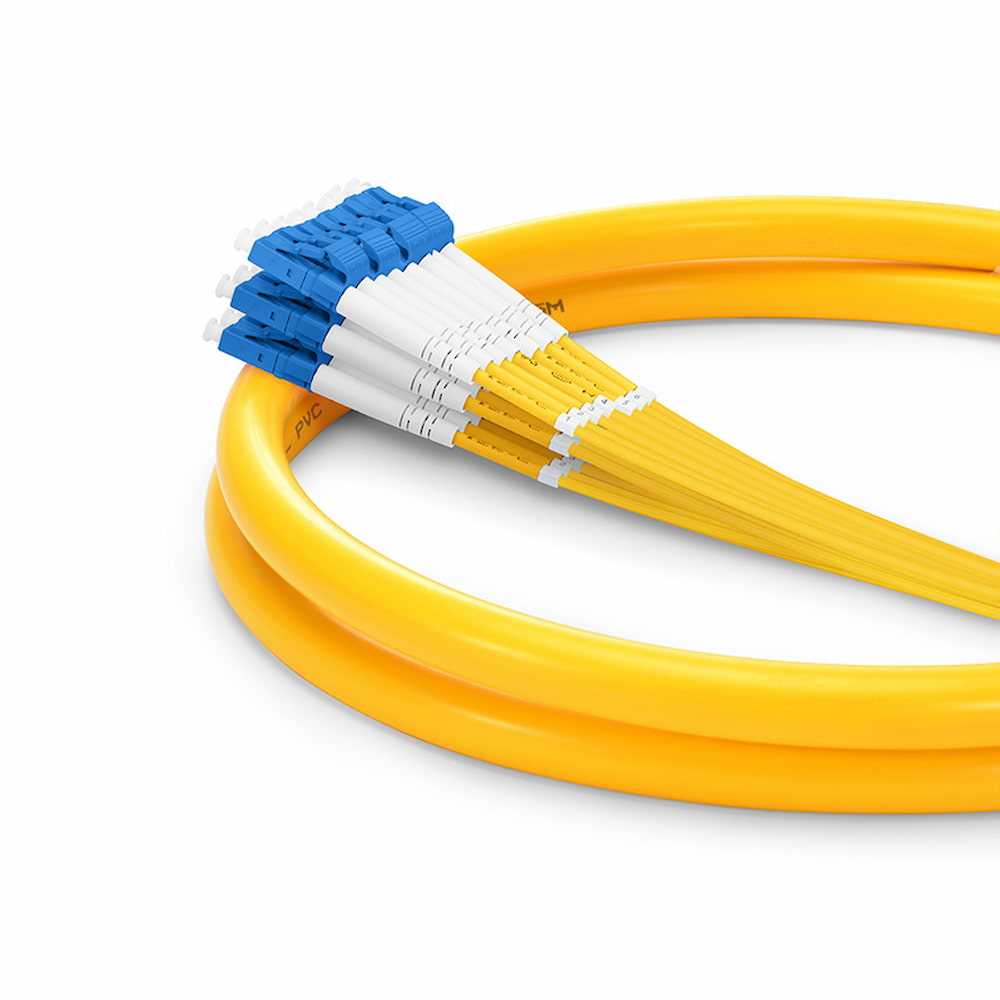

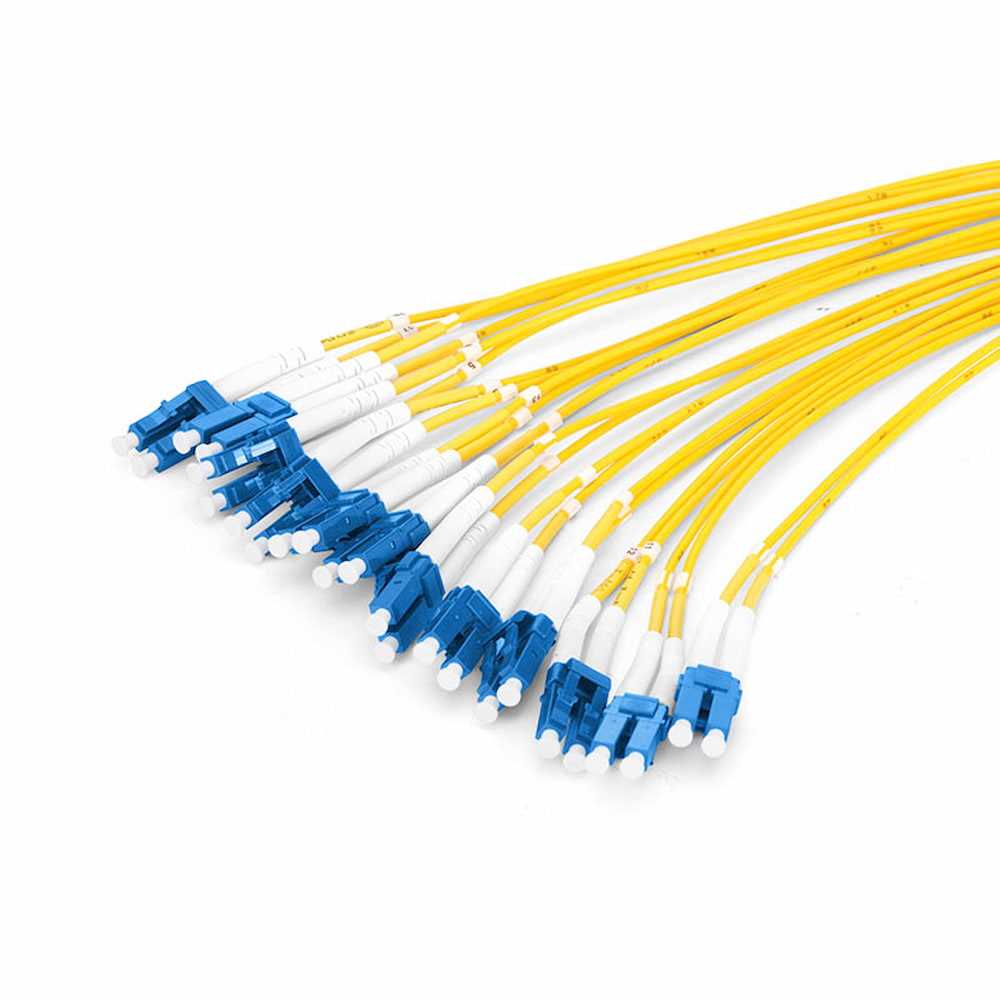

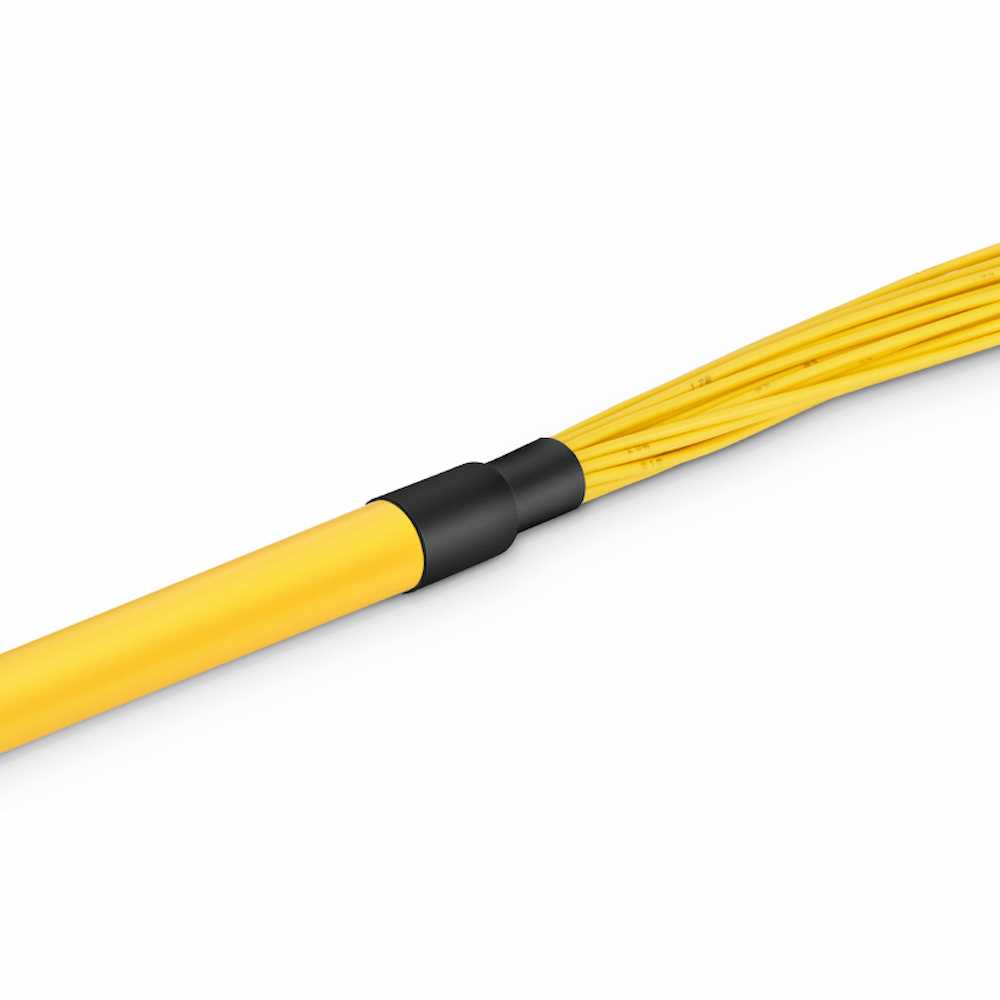

LC UPC to LC UPC Duplex OS2 Single Mode, 24 Fibers Indoor Tight-Buffered Breakout Cable - Yellow


Brand:
No Brand

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Color: Yellow
      Specification:
  • Connector Type: LC Duplex
  • Polish Type: UPC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Count: 24 Fibers
  • Cable Jacket: PVC
  • Fiber Grade: G.657.A1
  • Minimum Bend Radius: 20/10D (Dynamic/Static)
  • Insertion Loss: =0.3dB
  • Return Loss: =50dB
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm: 0.22 dB/km
  • Breakout Diameter: 2.0mm
  • Trunk Diameter: 15.0-16.0mm
  • Breakout Type: 0.5m Equal Breakout
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -40 to +75°C
  • Storage Temperature: -45 to 185°C







Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
