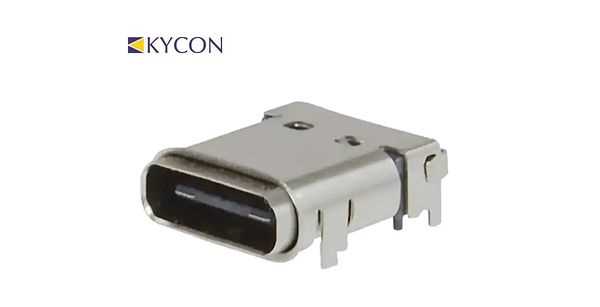

Kycon KUSB67X USB Type-C Connectors (Silver)


Brand:

Specifications

   Product details:
  • 1 Month Warranty
  • Brand: Kycon
  • Model: KUSB67X
   FEATURES
  • USB Type C
  • USB 3.2 Gen 2
  • Right angle
  • IP67 protection rating
  • Double row
  • Meets USB Type-C specifications
  • RoHS and REACH compliant
   SPECIFICATIONS
   Electrical

  • 5A rated current collectively for VBUS pins (A1, A4, A9, A12) and for GND pins (B1, B4, B9, B12), 1.25A for CC and SBU pins, 0.25A for other signal pins
  • 100MO minimum insulation resistance
  • 40mO maximum contact resistance
  • 100VAC (RMS) dielectric withstanding voltage for 1 minute
  • Mechanical
  • 10,000 mating cycles
  • 5N-20N insertion force
  • -25°C to +85°C operating temperature range
  • Materials
  • High-temperature UL 94V-0 material
  • Copper alloy contact material
  • Contact plating
  • Standard: gold flash plated on contact area and solder tails, all over nickel underplate
  • 30 variant: 30u" gold plated on contact area, gold flash plated on solder tails, all over nickel underplate
  • Stainless steel nickel-plated shield
  • Silicone rubber seal

Features

Brand:
Kycon
Warranty:
1 Month
