Home Fiber Optic Cables Fiber Patch Cables Patch Cables Custom Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbal...

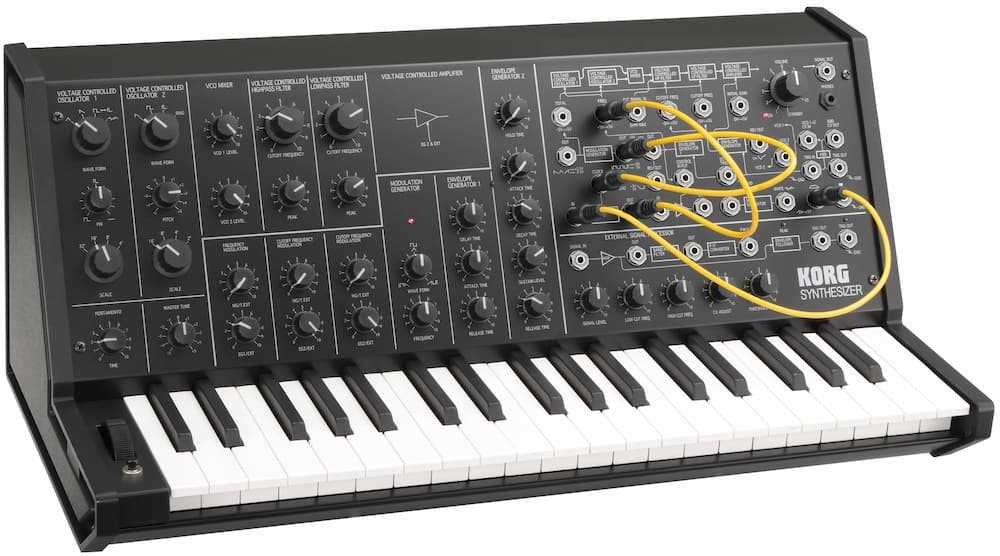

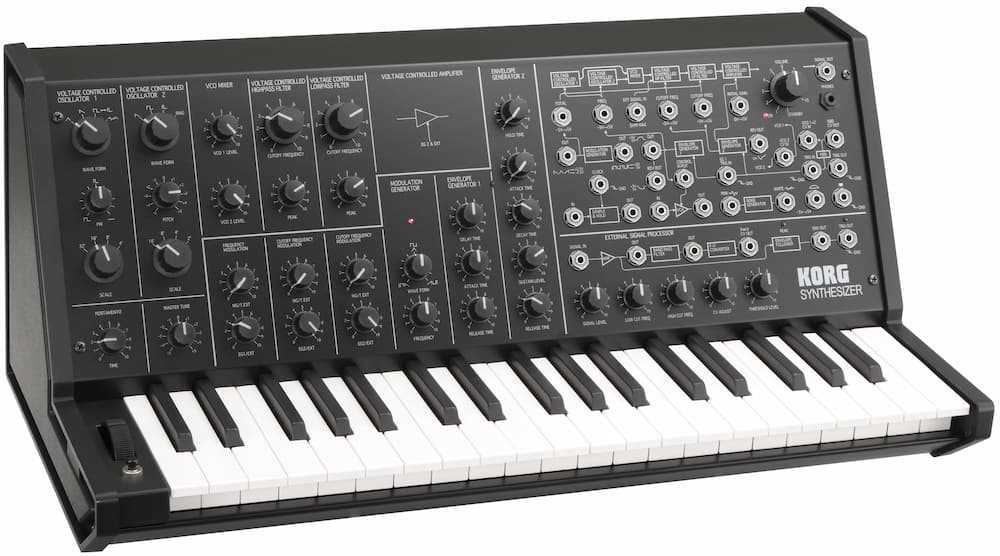

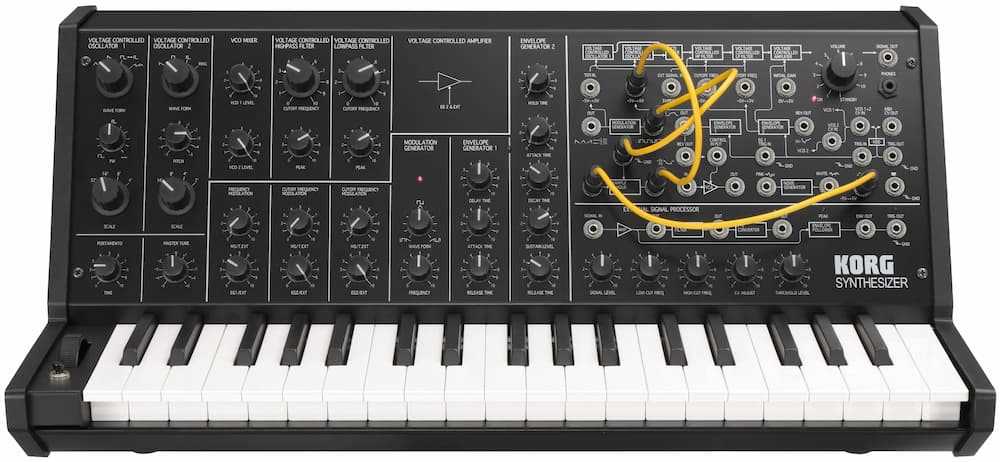

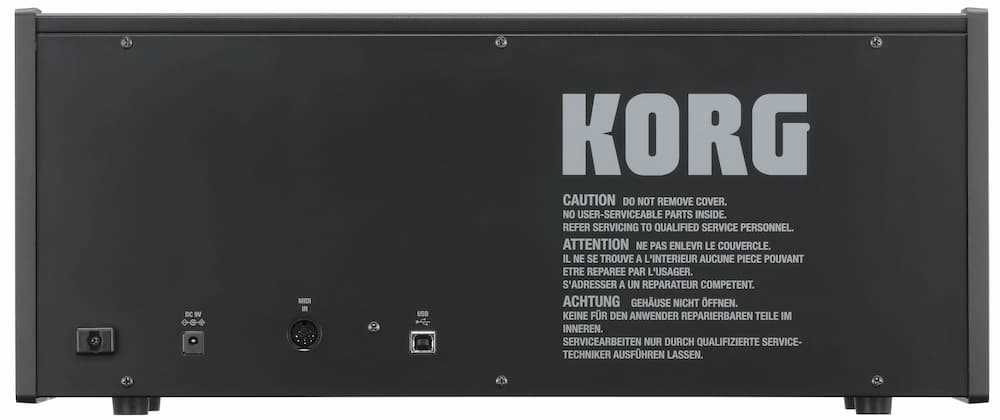

Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Previous
  1. Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
  2. Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
  3. Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
  4. Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
  5. Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables
Next

Korg MS-20 Mini Semi-Modular Monophonic Analog Synthesizer With Knox Gear Closed Back Headphones And 8-Pack Of Hosa CMM-830 3.5mm TS to 3.5mm TS Unbalanced Patch Cables

Brand:
Korg

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Korg
  • Model: MS-20 Mini
  • UPC: 04959112227859
      Specifications:
  • Power Consumption: 9W
  • Power Supply: DC9V
       Control Section:
  • Keyboard C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
  • Voltage Controlled Oscillator 1 (VCO 1) Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)
  • Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
  • Pulse width adjust 1:1 - 1:infinity
  • Voltage Controlled Oscillator 2 (VCO 2) Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)
  • Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)
  • Pitch (± 1 octave)
  • VCO Master control Master tune (± 100cent)
  • Portamento (max. 10sec)
  • Frequency modulation intensity by MG/T.EXT (-5V - +5V)
  • Frequency modulation intensity by EG1/EXT (-5V - 0V)
  • VCO Mixer VCO 1 Level
  • VCO 2 Level
  • Voltage Controlled High Pass Filter (VCF HPF) Cutoff frequency (50Hz - 15,000Hz)
  • Peak (flat - self OSC)
  • Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
  • Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
  • Voltage Controlled Low Pass Filter (VCF LPF) Cutoff frequency (50Hz - 15,000Hz)
  • Peak (flat - self OSC)
  • Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
  • Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
  • Envelope Generator 1 Delay time (10sec)
  • Attack time (10sec)
  • Release time (10sec)
  • Envelope Generator 2 Hold time (20sec)
  • Attack time (10sec)
  • Decay time (10sec)
  • Sustain level (0V - 5V)
  • Release time (10sec)
  • Modulation Generator (LFO) Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)
  • Frequency (0.1Hz ~ 20Hz)
  • Manual controller Control wheel (center click)
  • Momentary switch -->GND
  • Power switch and Volume Volume
  • Indicator LED (KBD trigger, Modulation Generator rate, Power ON) External Signal Processor Control section
       Input signal level:
  • Low cut frequency (50Hz - 2,500Hz)
  • High cut frequency (100Hz - 5,000Hz)
  • CV adjust
  • Threshold level
  • Input and Output Signal In
       Amplifier Out:
  • Band pass filter Out
  • CV Out (0 - +8.4V)
  • ENV Out (0 - +5V)
  • Trig Out (+5V-->GND)
  • Indicator (LED) Peak indicator
  • Trigger indicator Patch Panel
       Keyboard:
  • Keyboard control voltage output (Exponential) (0 - +8V)
  • Keyboard trigger output (+5V-->GND)
  • VCO-1 + VCO-2 control voltage input (Linear response) (0 - +8V)
  • VCO-2 control voltage input (Linear response) (0 - +8V) 2. VCO VCO-1 + VCO-2 external frequency control input (OCT/V) (-5V - +5V)
  • VCF External signal input (3Vp-p max.)
  • External High pass filter cutoff frequency control input (2OCT/V) (-5V - +5V)
  • External Low pass filter cutoff frequency control input (2OCT/V) (-5V - +5V)
  • VCO + VCF : Total external modulation input (T.EXT) (-5V - +5V)
  • External initial gain control input (0 - +5V)



















Features

Brand:
Korg
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
04959112227859
Warranty:
1 Year
