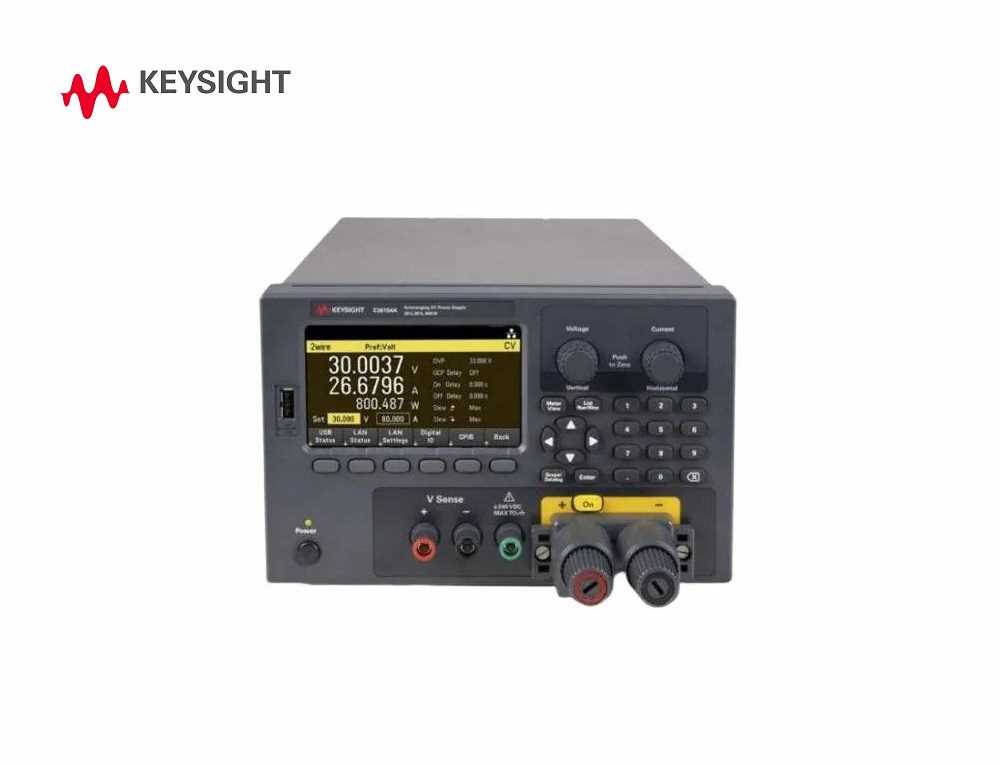

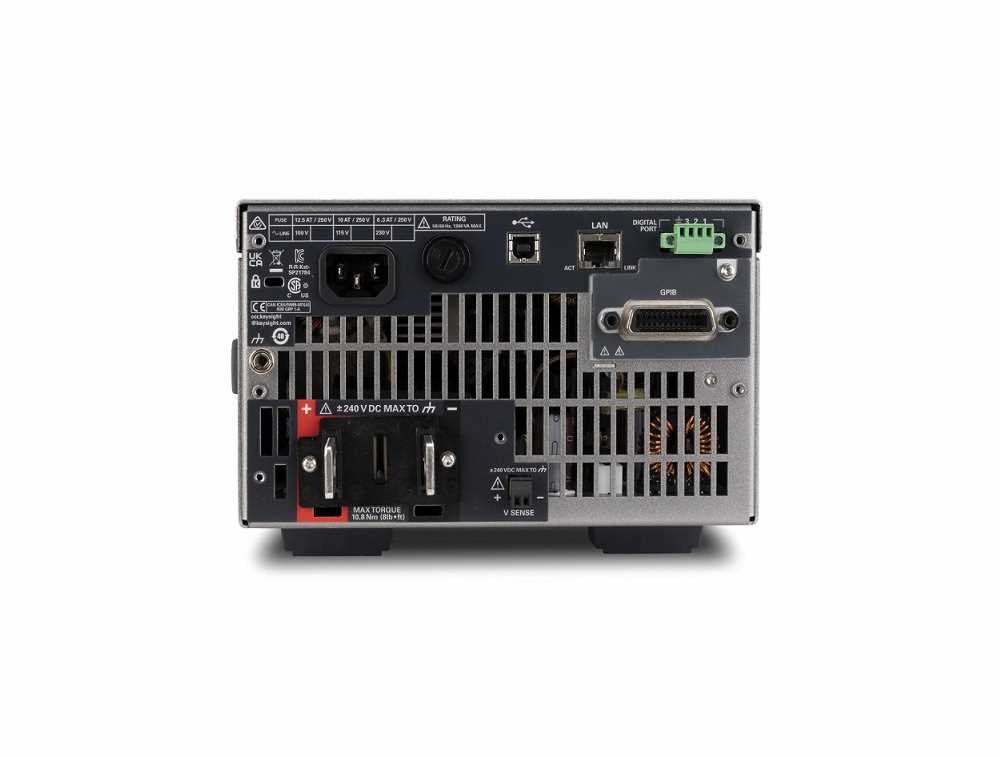

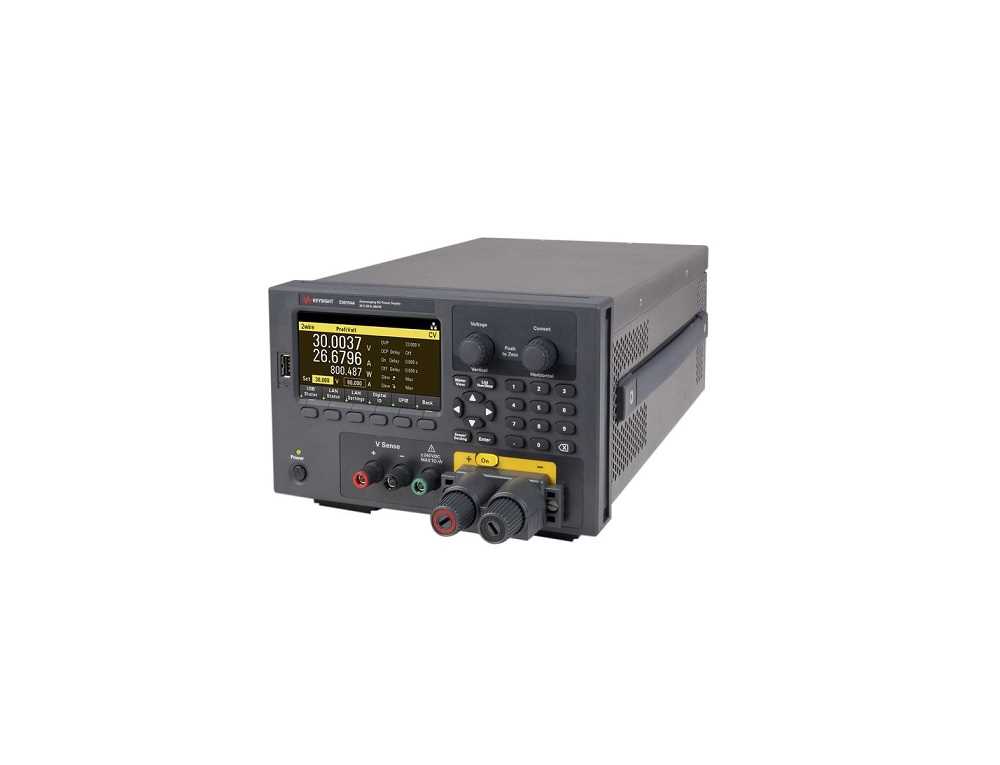

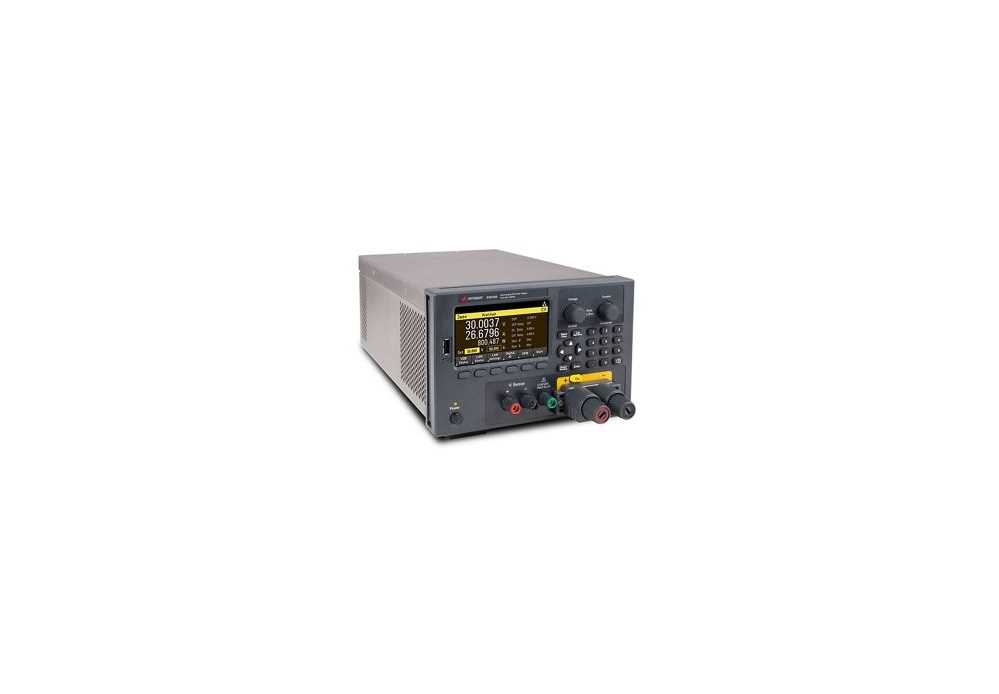

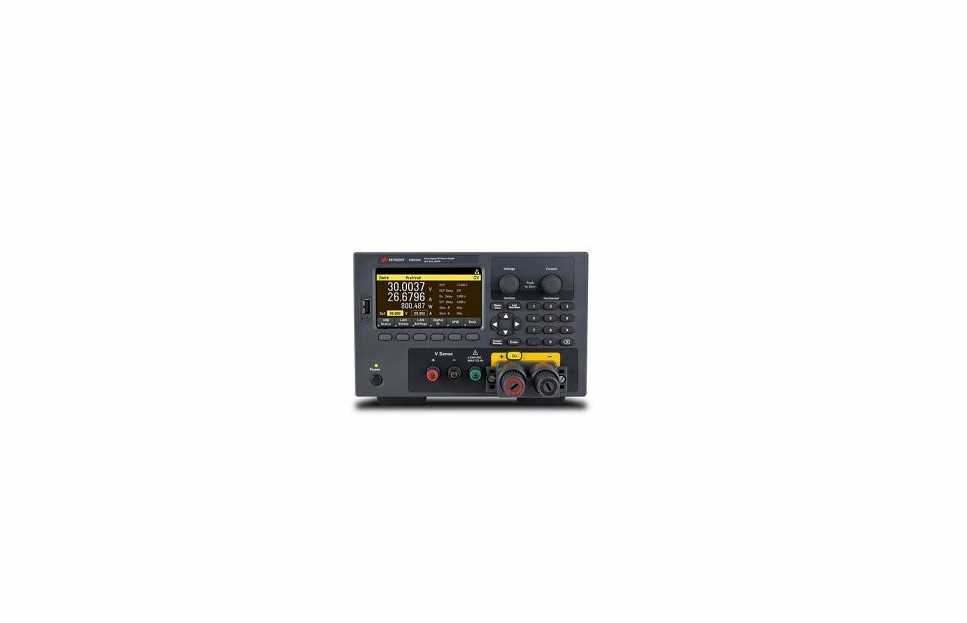

Keysight Technologies E36154A Autoranging Benchtop Power Supply With Overtemperature Protection, 800W, 1 Output - Black


Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to Exchange)
  • No Warranty
  • Brand: Keysight Technologies
  • Model: E36154A
  • Color: Black
      Features:
  • Peak power handling up to 3X max power rating
  • Low output ripple and noise
  • Excellent line/load regulation
  • 2-wire or 4-wire remote sense
  • Detachable high current front binding post
  • Over-voltage, over-current, and overtemperature protection
  • Thermal-control fan speed for minimal acoustic noise
  • 4-wire front output terminal including sense and ground
  • Individual knobs for voltage and current
  • LAN/LXI, USB and GPIB (upgrade option) interfaces
      Specification:
  • Power Supply Output Type: Programmable
  • No. of Outputs: 1 Output
  • Output Voltage Min: 0V
  • Output Voltage Max: 30V
  • Output Current Min: 0A
  • Output Current Max: 80A
  • Power Rating: 800W
  • Supply Voltage Min: 100VAC
  • Supply Voltage Max: 230VAC
  • Product Range: E36150 Series
      Programming Accuracy ± (% of output + offset):
  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA
      Ripple & Noise (20 Hz to 10 MHz):
  • Normal mode Voltage: <50 mV p-p
  • Normal-mode Voltage: <5 mV rms
      Readback Accuracy ± (% of output + offset):
  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA
  • Low Range Current: 0.1% + 250 uA











Features

Brand:
Keysight Technologies
Color:
Black
Conditions:
New
Warranty:
No Warranty
