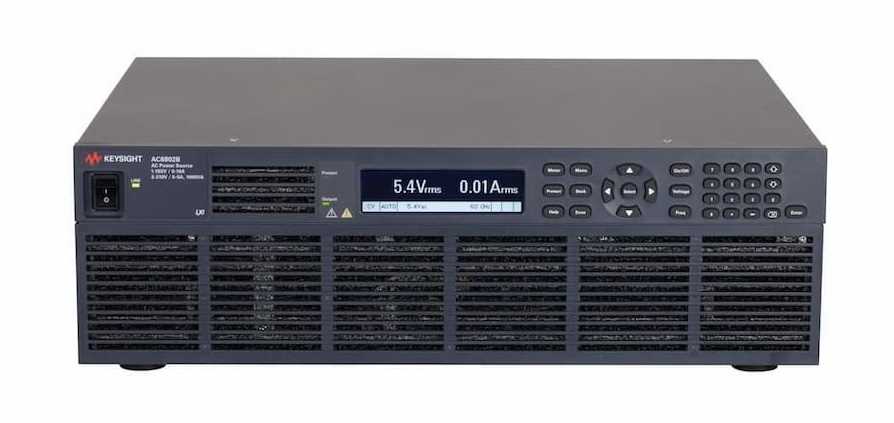

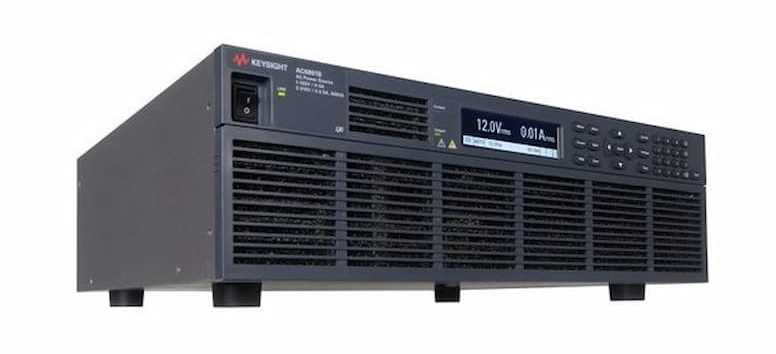

Keysight Technologies AC6802B AC Power Source (Black)


Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Keysight Technologies
  • Model: AC6802B
   Specification:
  • Output Power Max: 1kVA
  • Output Voltage Max: 310Vrms
  • Output Current Max: 5A
  • No. of Phases: Single Phase
   Features:
  • Single-phase, 1000VA maximum power output, 40-500Hz frequency, 800W power capacity
  • AC output mode (low/high): 155Vrms/310Vrms voltage, 10A/5A maximum rms current
  • DC output mode (low/high): 219V/438V voltage, 8A/4A maximum rms current
  • Flexible I/O: LAN/LXI core and USB (standard) and GPIB (optional)
  • Set-up, monitor and operate power sources remotely
  • 310Vrms or 438VDC isolation to ground
  • Operating temperature range from 0 to 40°C (non-condensing)
  • 500VDC, 30Mohm or more insulation resistance, 1.5KV AC for 1 minute withstand voltage
  • Input terminal: M4 terminal block, output terminal: M4 terminal block


Features

Brand:
Keysight Technologies
Color:
Black
Conditions:
New
Warranty:
1 Year
