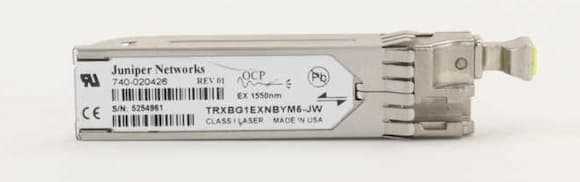

Juniper SFP-GE40KT15R13 1 Port GE SFP Gigabit Ethernet Optical Transceiver


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-GE40KT15R13
   Specifications:
  • Part Number: 740-020426
  • Product Type: Optical Transceiver (SFP)
  • Connector Type: Simplex LC
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Breakout Capable: No
  • Digital Optical Monitoring (DOM): Yes, available for performance monitoring
  • Multivendor Agreement: Yes (should work with other brands as well)
   Performance and Standards:
  • Signaling Rate: 1000 Mbps (1 Gbps)
  • Standard Compliance: 1000BASE-BX-D (Gigabit Ethernet over single-mode fiber)
  • Ethernet Standard: 1000BASE-BX, 1 Gbps over long distances using single-mode fiber (SMF)
   Wavelengths and Power:
  • Transmitter Wavelength (Range): 1550 nm (for the transmit side)
  • Receiver Wavelength (Range): 1310 nm (for the receive side)
  • Transmitter Output Power (Minimum): –7 dBm
  • Transmitter Output Power (Maximum): 2 dBm
  • Receiver Input Power (Minimum): –23 dBm
  • Receiver Input Power (Maximum): –3 dBm
   Fiber and Distance:
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (typical for SMF)
  • Maximum Distance: 40 km (ideal for long-range connections)
   Power and Temperature:
  • Maximum Power Consumption: 1 W
  • Operating Temperature Range: 0°C to 70°C
  • Storage Temperature Range: –40°C to 85°C


Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
