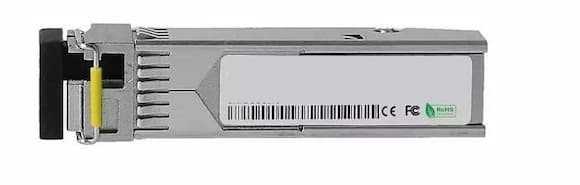

Juniper SFP-GE40KT14R13 1GbE, BiDi, Tx 1490 nm, Rx 1310 nm, SMF 40 km Gigabit Ethernet Optical Transceiver


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-GE40KT15R13
   Specifications:
  • Part Number: 740-072492
  • Product Type: Optical Transceiver (SFP)
  • Connector Type: Simplex LC
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Breakout Capable: No
  • Monitoring Available: Yes (Digital Optical Monitoring)
   Digital Optical Monitoring: Yes, with several key parameters available for monitoring:
  • Transceiver temperature
  • Transceiver supply voltage
  • TX bias current
  • TX output power
  • RX received optical power
   Standards Compliance:
  • Ethernet Standard: IEEE 1000BASE-BX (Gigabit Ethernet over single-mode fiber)
  • Juniper Proprietary: Compatible with IEEE 1000BASE-BX but also supports Juniper's proprietary standards.
  • MSA Compliance: INF-8074i and SFF-8472 (standard for SFP transceivers)
   Performance and Signaling:
  • Signaling Rate: 0.125 GBd to 1.25 GBd
  • Transmitter Fibers: 1 fiber (shared for both transmission and reception, commonly referred to as a bidirectional transceiver)
  • Transmitter Wavelength (Range): 1480 nm to 1500 nm (for transmission)
  • Receiver Wavelength (Range): 1260 nm to 1360 nm (for reception)
   Power and Sensitivity:
  • Transmitter Output Power (Minimum): –2 dBm
  • Transmitter Output Power (Maximum): 3 dBm
  • Receiver Input Power (Minimum): –24 dBm
  • Receiver Input Power (Maximum): 0 dBm
   Receiver Sensitivity (Maximum):
  • Without fiber: –24 dBm
  • With fiber: –21 dBm (indicating the transceiver's sensitivity improves with proper fiber connections)
   Fiber and Distance:
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (standard SMF configuration)
  • Maximum Distance: 40 km (ideal for long-distance communications)


Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
