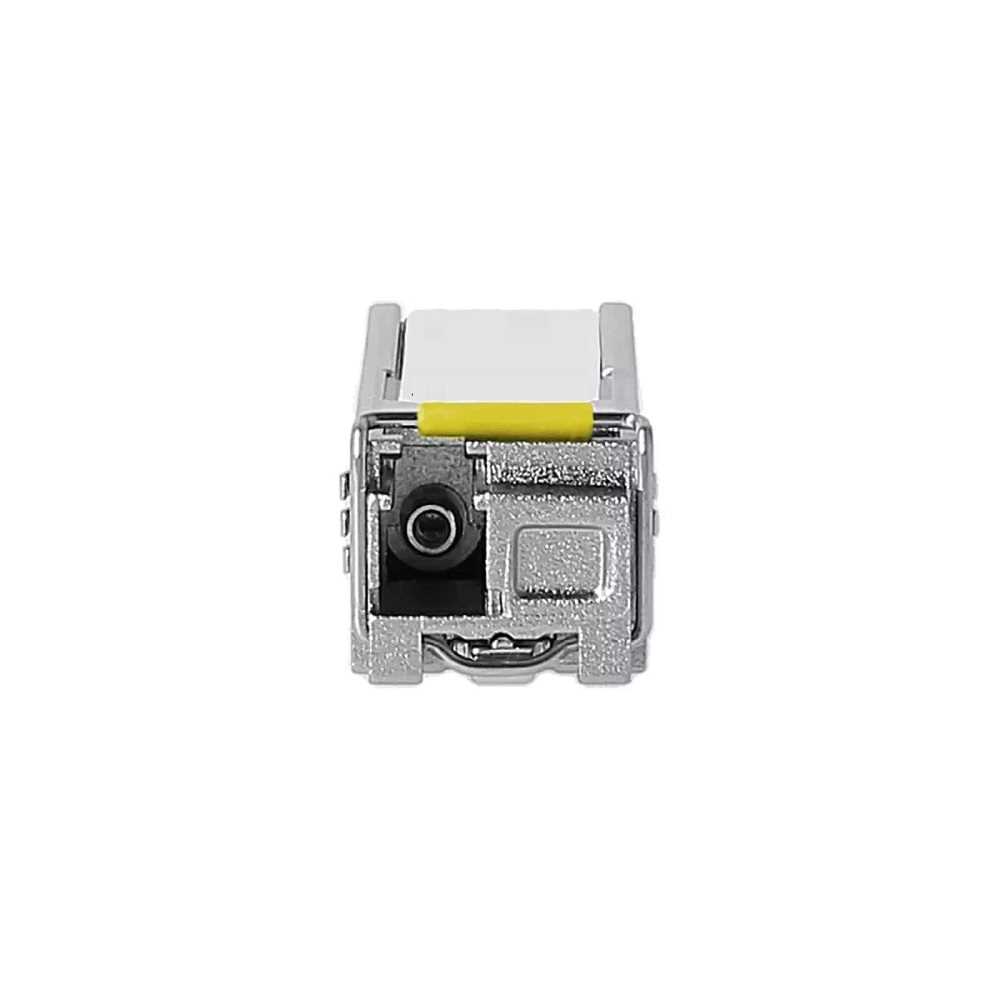

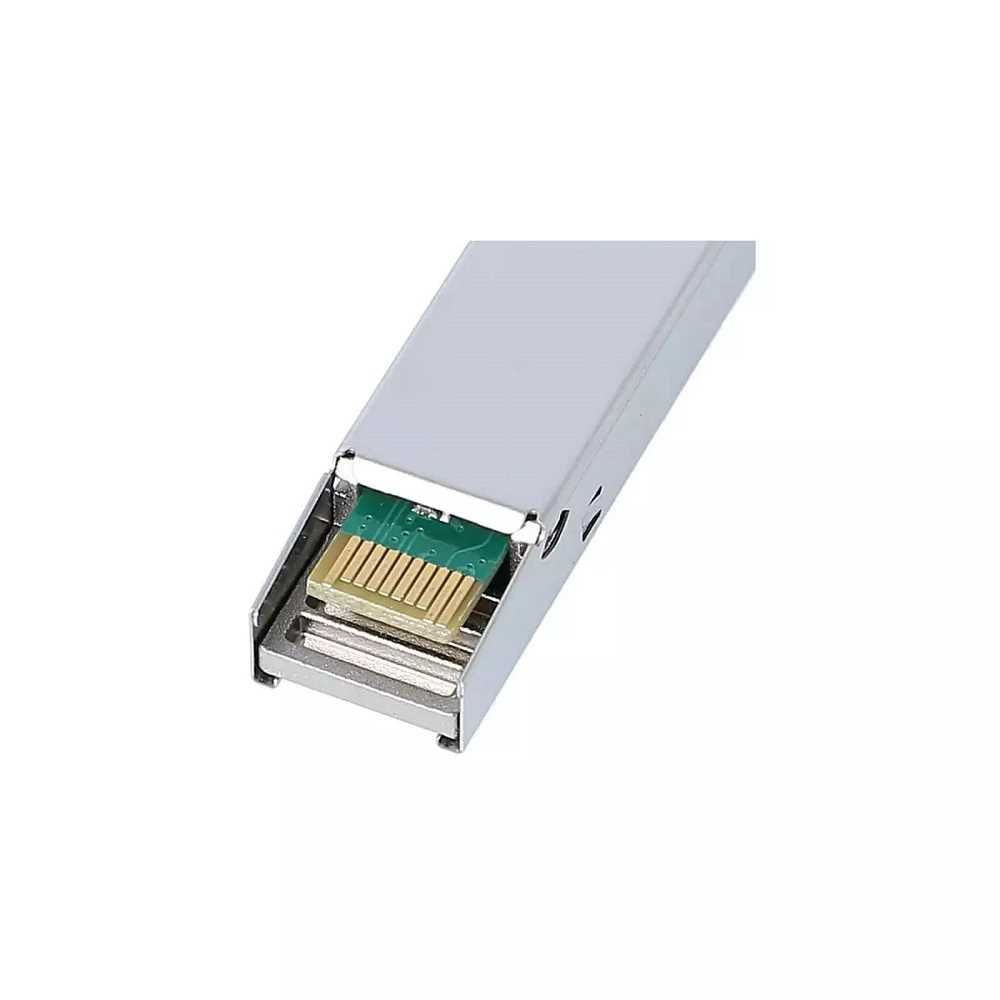

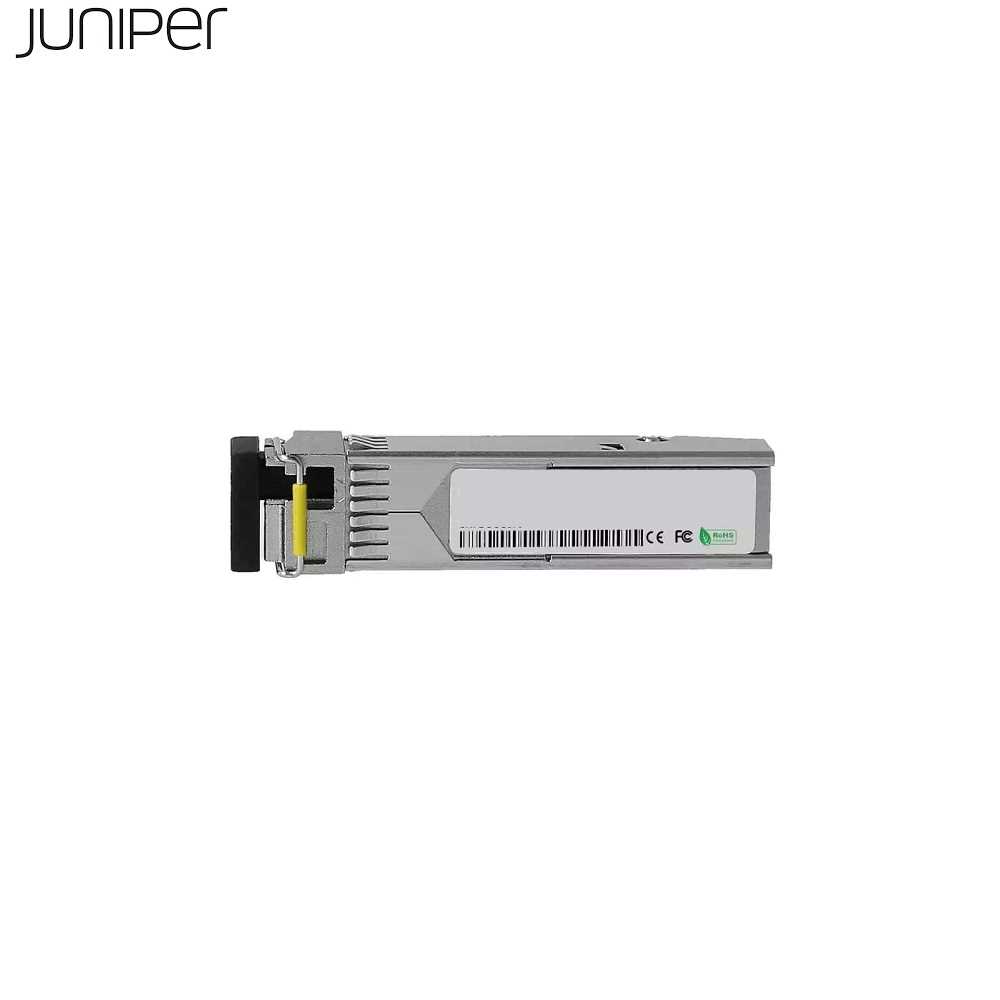

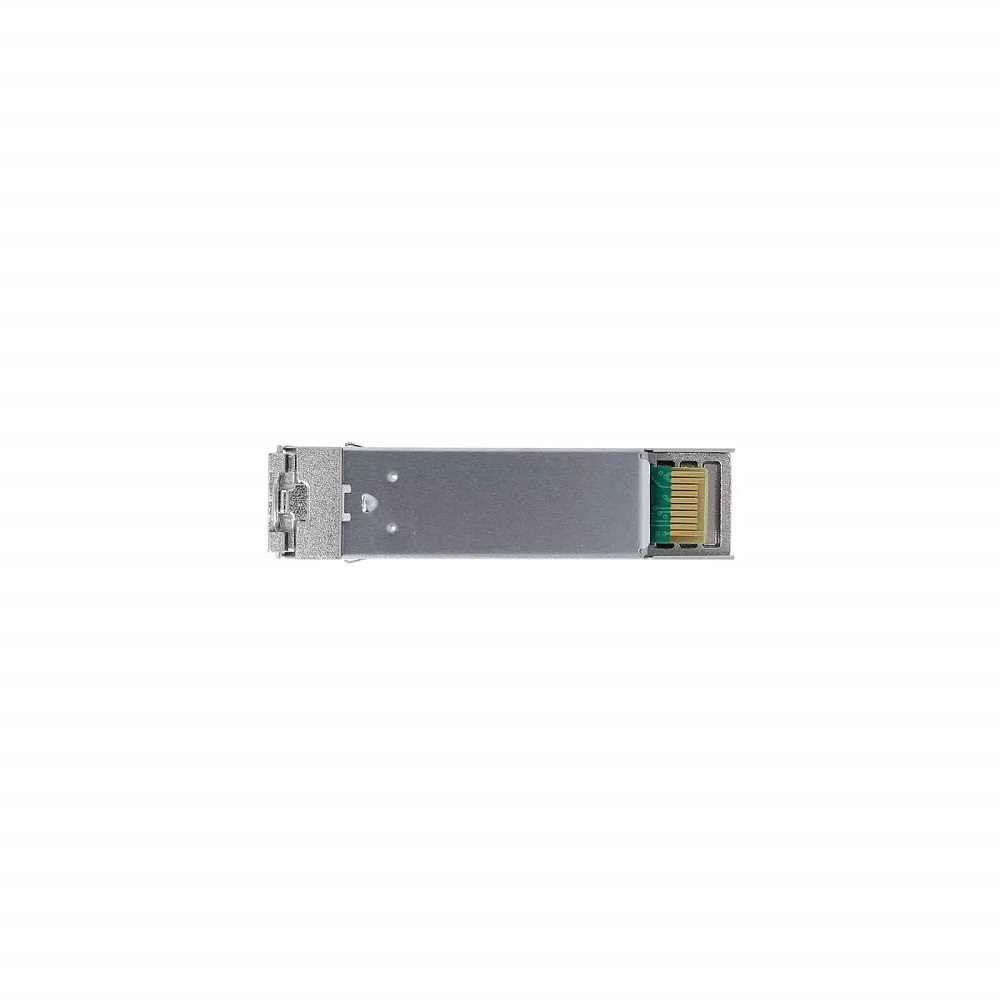

Juniper SFP-GE40KT13R15 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1550 / Rx 1310 & DDM (Silver)

Brand:
Juniper

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-GE40KT13R15

    Specifications:
  • Part Number: 740-020424
  • Speed: Gigabit Ethernet (1 Gbps)
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Product Type: Optical Transceiver (Fiber Optic)
  • Connector: Simplex LC (single fiber for both transmit and receive)
  • Breakout Capable: No (This transceiver is designed for point-to-point communication, not for breakout to multiple links)
  • Standard: 1000BASE-BX-D (Bidirectional Ethernet transmission over a single fiber)

    Optical Characteristics:
  • Signaling Rate: 1000 Mbps (1 Gbps) per lane
  • Transmitter Wavelength Range: 1530 nm to 1570 nm (for transmission)
  • Receiver Wavelength Range: 1310 nm (for receiving)

    Transmitter Output Power:
  • Minimum: -9 dBm
  • Maximum: -3 dBm

    Receiver Input Power:
  • Minimum: -20 dBm
  • Maximum: -3 dBm
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (standard for single-mode fiber)

    Distance and Channel Plan:
  • Distance: 10 km (maximum over single-mode fiber)
  • Channel Plan Wavelength Range: This is typically specific to the network and fiber setup but ensures compatibility for 1000BASE-BX-D connections.

    Power and Temperature Specifications:
  • Maximum Power Consumption: 1 W (typical for this type of optical transceiver)
  • Operating Temperature Range: 0°C to 70°C (suitable for most indoor and data center environments)
  • Storage Temperature Range: -40°C to 85°C (wide temperature range for safe storage)

    Monitoring and Diagnostics:
  • Digital Optical Monitoring (DOM): Yes, this transceiver supports Digital Optical Monitoring (DOM), allowing for real-time monitoring of several key parameters such as:
  • Transmitter Output Power
  • Receiver Input Power
  • Transceiver Temperature
  • Transceiver Supply Voltage
  • TX Bias Current
  • These features are useful for monitoring the health of the transceiver and proactively identifying issues such as power fluctuations or temperature changes.

    Key Features:
  • 1000BASE-BX-D: This transceiver is part of the 1000BASE-BX-D standard, which uses a single fiber for both transmitting and receiving data. This is achieved by using different wavelengths for transmission and reception, with 1530-1570 nm for transmitting and 1310 nm for receiving.
  • Single-Fiber Solution: Unlike traditional bidirectional optical links that require two fibers (one for transmit and one for receive), the 1000BASE-BX-D standard allows you to use just one fiber, maximizing the efficiency of fiber utilization. This makes it especially useful in environments where minimizing fiber infrastructure is a priority.
  • Distance: The transceiver is capable of distances up to 10 km over single-mode fiber, which is ideal for long-range Ethernet links.
  • Multivendor Agreement: The transceiver is compatible with the IEEE 1000BASE-BX standard, ensuring that it can work with networking equipment from multiple vendors.
  • Digital Monitoring: With DOM, users can monitor the optical performance of the transceiver in real-time, which helps to maintain a reliable network connection and perform preventative maintenance.

    Use Cases:
  • The 740-020424 1000BASE-BX-D SFP optical transceiver is well-suited for the following applications:
  • Long-distance Ethernet links requiring bidirectional communication over single-mode fiber, with a range of up to 10 km.
  • Data center interconnects between distant network equipment (e.g., between buildings or across campus environments).
  • Telecommunications networks or ISP connections where long-range single-fiber connections are needed.
  • Enterprise networks requiring bidirectional data transmission over a single fiber for efficient use of fiber resources.

    Summary:
  • The 740-020424 is a 1000BASE-BX-D SFP optical transceiver that supports Gigabit Ethernet over single-mode fiber. It uses different wavelengths for transmit and receive, with transmission at 1530-1570 nm and reception at 1310 nm, providing bidirectional communication over a single fiber. With a maximum distance of 10 km, it is well-suited for long-range applications in networks that require high reliability and efficient use of fiber infrastructure. The Digital Optical Monitoring (DOM) capability provides real-time diagnostics, helping to ensure optimal performance.
    740-020424
    SFP-GE40KT13R15
    Juniper Transceiver
    Transceiver

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
