Home Optics and Transceivers Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)

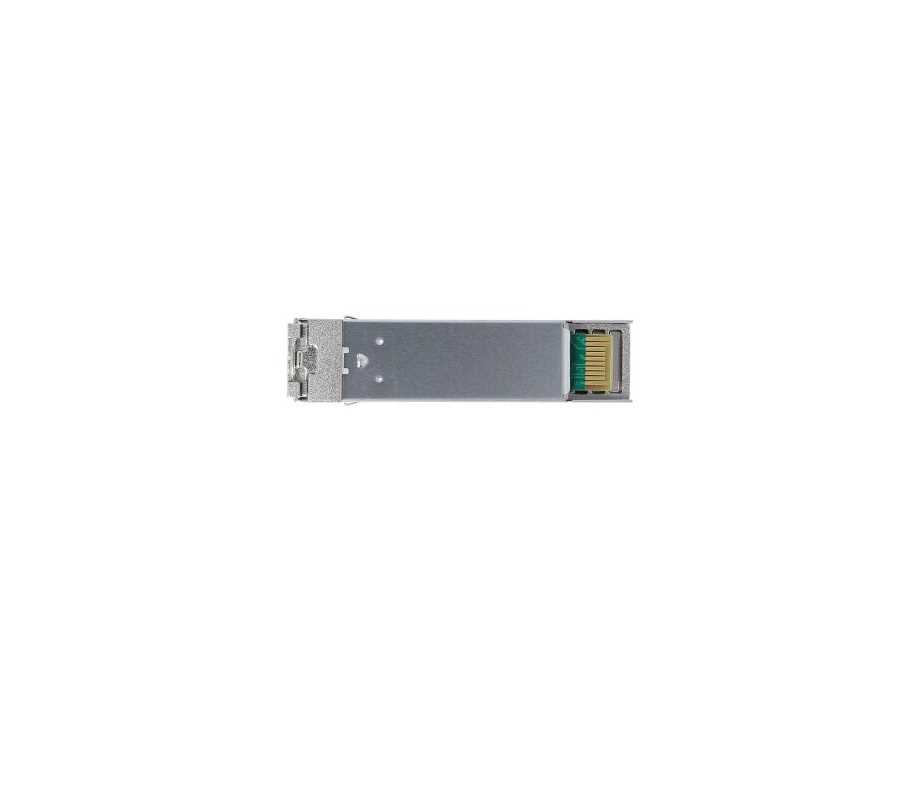

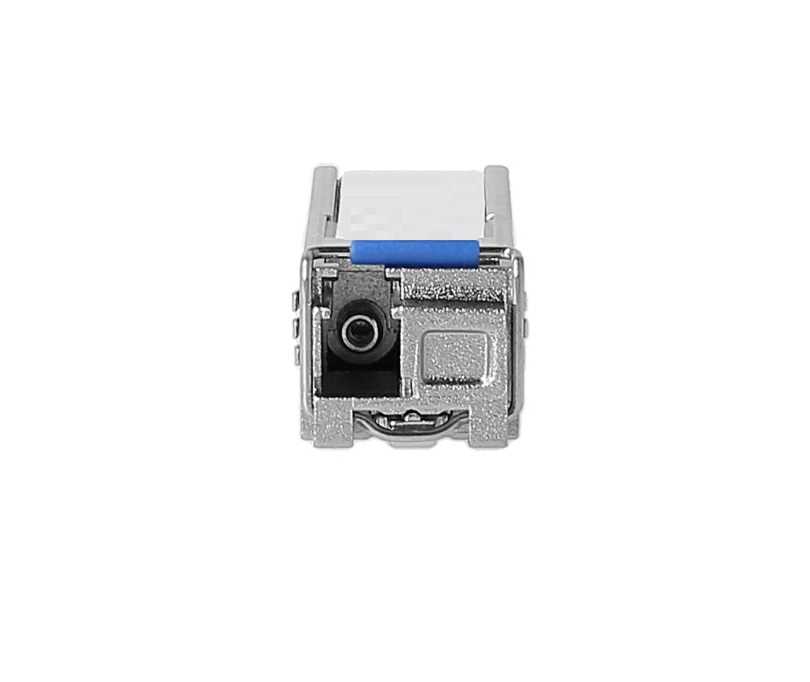

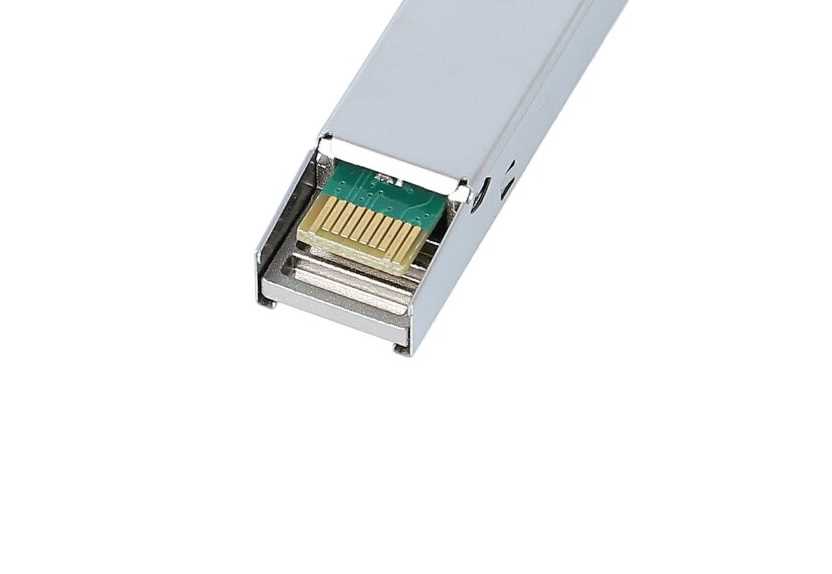

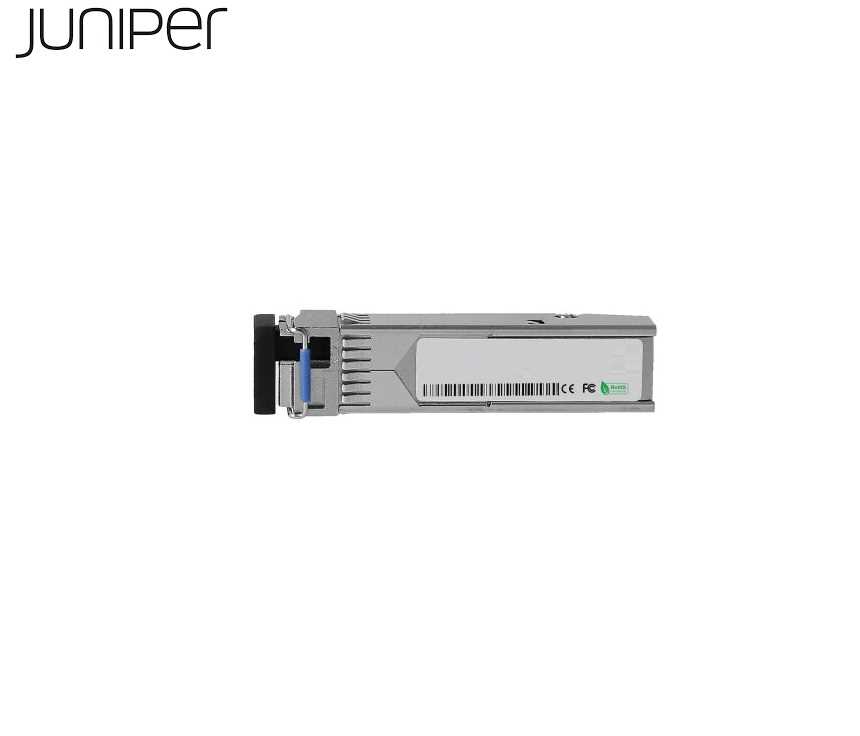

Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
Previous
  1. Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
  2. Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
  3. Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
  4. Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)
Next

Juniper SFP-GE40KT13R14 1GbE, BiDi, Tx 1310 nm, Rx 1490 nm, SMF 40 km Gigabit Ethernet Optical Transceiver (Silver)

Brand:
Juniper

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-GE40KT13R14

    Specifications:
  • Part Number: 740-072491
  • Speed: Gigabit Ethernet (1 Gbps)
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Product Type: Optical Transceiver (Fiber Optic)
  • Connector: Simplex LC (single fiber, one for transmit, one for receive)
  • Breakout Capable: No (this is a single-link transceiver with no breakout capability)
  • Standard: 1000BASE-BX (Bidirectional Gigabit Ethernet over a single fiber)
  • Juniper proprietary, but compatible with IEEE 1000BASE-BX standard.

    Standards Compliance:
  • Juniper proprietary, compatible with IEEE 1000BASE-BX
  • MSA Compliance: SFF-8665, INF-8074i, SFF-8472 (for diagnostics)

    Optical Characteristics:
  • Signaling Rate: 0.125 GBd to 1.25 GBd (variable signaling rate; typically 1 Gbps for standard 1000BASE-BX)
  • Transmitter Fibers: 1 (transmit and receive share the same fiber, bidirectional)
  • Transmitter Wavelength Range: 1260 nm to 1360 nm
  • Receiver Wavelength Range: 1480 nm to 1500 nm

    Transmitter Output Power:
  • Minimum: -2 dBm
  • Maximum: 3 dBm

    Receiver Input Power:
  • Minimum: -24 dBm
  • Maximum: 0 dBm

    Receiver Sensitivity:
  • -24 dBm without fiber
  • -21 dBm with fiber (indicates slightly better sensitivity when using fiber)

    Cable & Distance:
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (standard for single-mode fiber)
  • Distance: Up to 40 km over single-mode fiber (for long-distance, high-performance applications)

    Power and Temperature Specifications:
  • Maximum Power Consumption: 1.0 W (relatively low for optical transceivers)
  • Operating Temperature Range: 0°C to 70°C (suitable for most indoor network environments)
  • Storage Temperature Range: -40°C to 85°C (wide range for safe storage in various conditions)

    Monitoring and Diagnostics:
  • Digital Diagnostic Monitoring (DDM): Yes, this transceiver supports Digital Optical Monitoring (DOM), providing real-time monitoring of the following:

    Transceiver temperature
  • Transceiver supply voltage
  • TX bias current
  • TX output power
  • RX received optical power
  • This feature allows for proactive monitoring and troubleshooting, as you can access vital statistics about the performance of the transceiver and fiber connection.

    Physical Dimensions:
  • Weight: 0.15 kg

    Dimensions:
  • Height: 8.5 mm
  • Width: 13.35 mm
  • Depth: 56.5 mm
  • These compact dimensions and weight make it suitable for high-density network deployments, particularly in environments where space is at a premium.

    Key Features:
  • 1000BASE-BX Standard: This transceiver operates over a single fiber, using different wavelengths for transmission (1260-1360 nm) and reception (1480-1500 nm). This makes it a bidirectional solution for long-range Ethernet connections over single-mode fiber.
  • Distance: With a range of up to 40 km, this transceiver is suitable for long-distance links, such as between buildings or across campus or enterprise networks.
  • Digital Monitoring: Real-time monitoring of critical performance metrics such as transmit/receive power, supply voltage, and temperature makes this transceiver well-suited for environments where uptime and reliability are critical.
  • Proprietary but Compatible: Although this transceiver is Juniper proprietary, it is compatible with the IEEE 1000BASE-BX standard, ensuring interoperability with other equipment supporting this standard.

    Use Cases:
  • This 1000BASE-BX transceiver is typically used in long-distance applications where fiber optics are required for 1 Gbps Ethernet connectivity. Common use cases include:
  • Campus networks or inter-building connections requiring single-mode fiber for distances up to 40 km.
  • Telecommunications or ISP networks for bidirectional communication over a single fiber between remote sites.
  • Data center interconnects where long-range, high-reliability, and low-cost single-fiber solutions are preferred.
  • Long-range fiber optic links that need to minimize the use of fiber cables, as this solution only requires one fiber for both transmitting and receiving data.

    Summary:
  • The 740-072491 is a 1000BASE-BX SFP optical transceiver offering bidirectional communication over a single fiber, using wavelengths of 1260-1360 nm for transmission and 1480-1500 nm for reception. It supports distances up to 40 km over single-mode fiber (SMF), making it suitable for long-range, high-performance Gigabit Ethernet applications. The inclusion of Digital Optical Monitoring (DOM) allows for real-time diagnostics of key parameters, ensuring high reliability and performance.
    740-072491
    Juniper Transceiver
    Transceiver
    SFP-GE40KT13R15

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
