Home Optics and Transceivers Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)

Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)
Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)
Previous

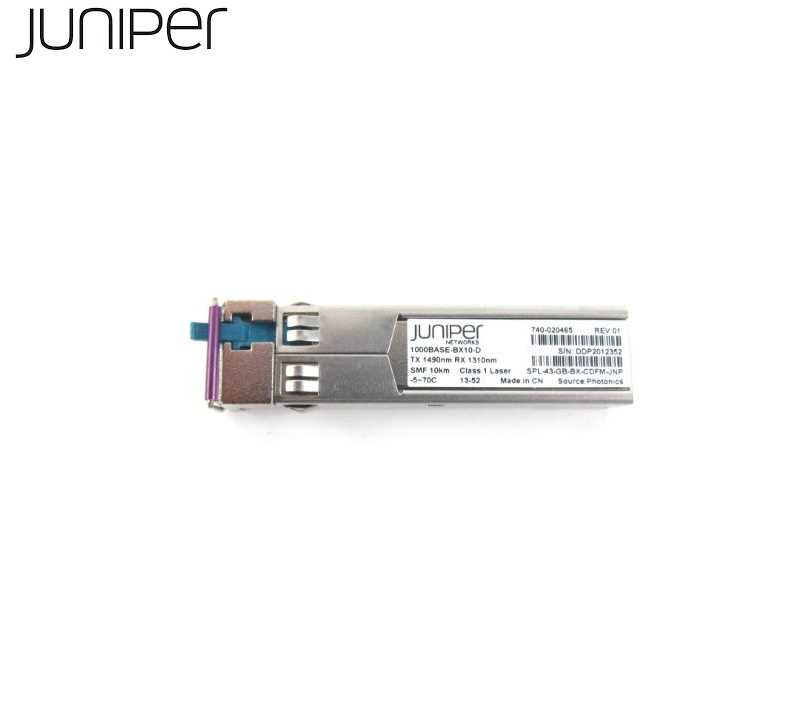

  1. Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)

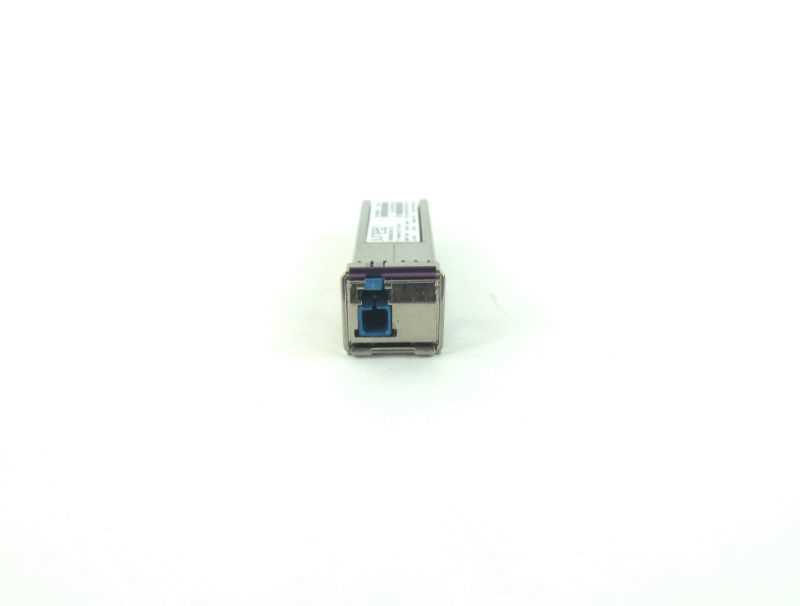

  2. Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)
Next

Juniper SFP-GE10KT14R13 1 Port Bidirectional GE SFP Gigabit Ethernet Optical Transceiver with 10km reach, Tx 1490 / Rx 1310 & DDM (Silver)

Brand:
Juniper

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-GE10KT14R13

    Technical Specifications:
  • Part Number: 740-020465
  • Speed: Gigabit Ethernet (1 Gbps)
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Product Type: Optical Transceiver (Fiber Optic)
  • Connector: Simplex LC (single fiber used for both transmit and receive)
  • Breakout Capable: No (this is a point-to-point transceiver, not designed for breakout to multiple links)
  • Standard: 1000BASE-BX (Bidirectional Ethernet over a single fiber)

    Optical Characteristics:
  • Signaling Rate: 1.25 GBd ± 100 ppm (1 Gbps signaling rate with a precision tolerance of ±100 ppm)
  • Transmitter Wavelength Range: 1480 nm to 1500 nm (for the transmit side)
  • Receiver Wavelength Range: 1260 nm to 1360 nm (for the receive side)

    Transmitter Output Power:
  • Minimum: -9 dBm
  • Maximum: -3 dBm

    Receiver Input Power:
  • Minimum: -19.5 dBm
  • Maximum: -3 dBm
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (standard for single-mode fiber)

    Distance and Channel Plan:
  • Distance: Up to 10 km over single-mode fiber
  • Channel Plan: Typically compliant with the 1000BASE-BX standard for single-fiber bidirectional transmission using different wavelengths for transmit and receive.

    Power and Temperature Specifications:
  • Maximum Power Consumption: 0.5 W (low power consumption, typical for Gigabit Ethernet optical transceivers)
  • Operating Temperature Range: 0°C to 70°C (standard temperature range for indoor environments or data centers)
  • Storage Temperature Range: -40°C to 85°C (wide range for storage in various environmental conditions)

    Monitoring and Diagnostics:
    Digital Optical Monitoring (DOM): Yes, this transceiver supports Digital Diagnostic Monitoring to allow for real-time monitoring of key parameters such as:
  • Transceiver Temperature
  • Transceiver Supply Voltage
  • TX Bias Current
  • TX Output Power
  • RX Received Optical Power

    Physical Dimensions:
  • Width: 14 mm
  • Height: 12.05 mm
  • Length: 57.5 mm
  • Weight: 0.15 lb (approximately 0.068 kg)

    Key Features:
  • 1000BASE-BX Standard: The 1000BASE-BX standard enables bidirectional Ethernet communication over a single fiber by using different wavelengths for transmitting and receiving (1480–1500 nm for transmission and 1260–1360 nm for reception). This enables efficient use of fiber infrastructure.
  • Long-Distance Communication: This transceiver supports distances up to 10 km over single-mode fiber, making it suitable for long-range Ethernet links between buildings or across campuses.
  • Digital Monitoring: The Digital Optical Monitoring (DOM) functionality helps to monitor important parameters like transmit power, receiver power, temperature, and voltage. This allows network administrators to monitor and troubleshoot the transceiver remotely, helping to ensure its performance and reliability.
  • Compact Form Factor: The SFP form factor (with the Simplex LC connector) is ideal for high-density deployments in switches, routers, and other networking devices.
  • Low Power Consumption: At 0.5 W, this transceiver is energy-efficient, contributing to the overall power efficiency of the network equipment.

    Use Cases:
  • The 740-020465 1000BASE-BX optical transceiver is suitable for the following applications:
  • Long-range Ethernet links over single-mode fiber, ideal for point-to-point connections between distant devices or buildings (up to 10 km).
  • Data center interconnects requiring high-performance Gigabit Ethernet communication across a single fiber.
  • Telecommunications or ISP networks where long-distance fiber connections are needed, and using a single fiber for bidirectional communication minimizes infrastructure costs.
  • Enterprise networks or campus network links, where efficient use of existing fiber infrastructure is a priority.

    Summary:
  • The 740-020465 is a 1000BASE-BX optical transceiver that supports 1 Gbps Ethernet communication over single-mode fiber. It uses bidirectional transmission over a single fiber with a transmit wavelength range of 1480-1500 nm and receive wavelength range of 1260-1360 nm. With a distance of up to 10 km, low power consumption of 0.5 W, and Digital Optical Monitoring (DOM) capabilities, this transceiver is ideal for long-range Ethernet links in enterprise, campus, and data center networks.
    740-020465

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
