Home Optics and Transceivers Juniper SFP-1GT13R14BX10-I SFP GE-BX10D SMF 10km TX1310nm RX1490nm Gigabit Ethernet Optical Transceiver (Silver)- 740-054647

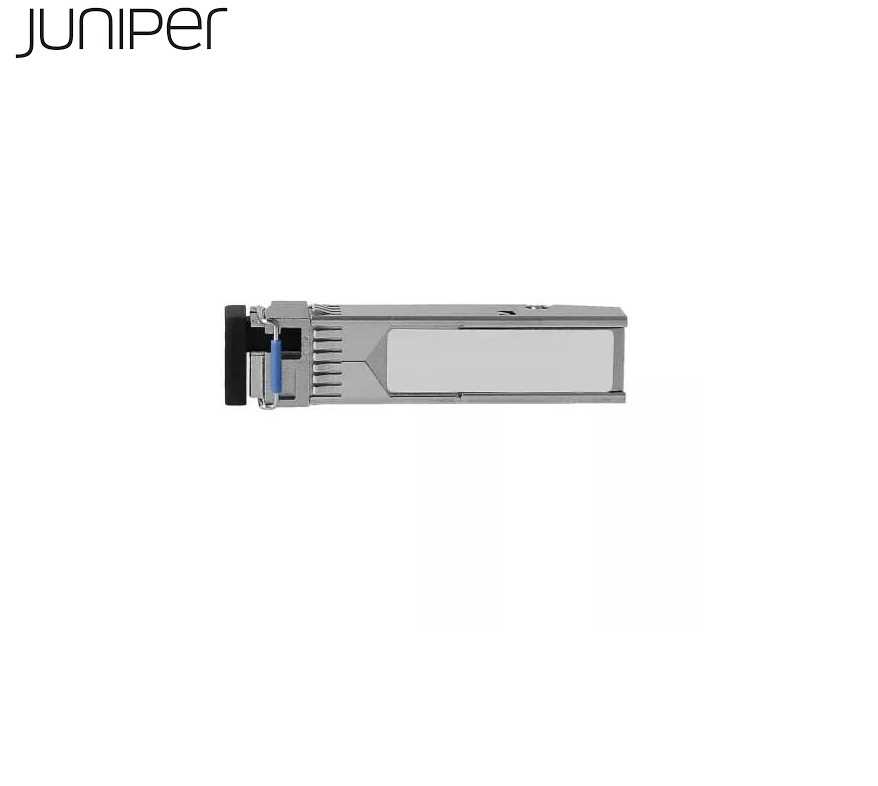

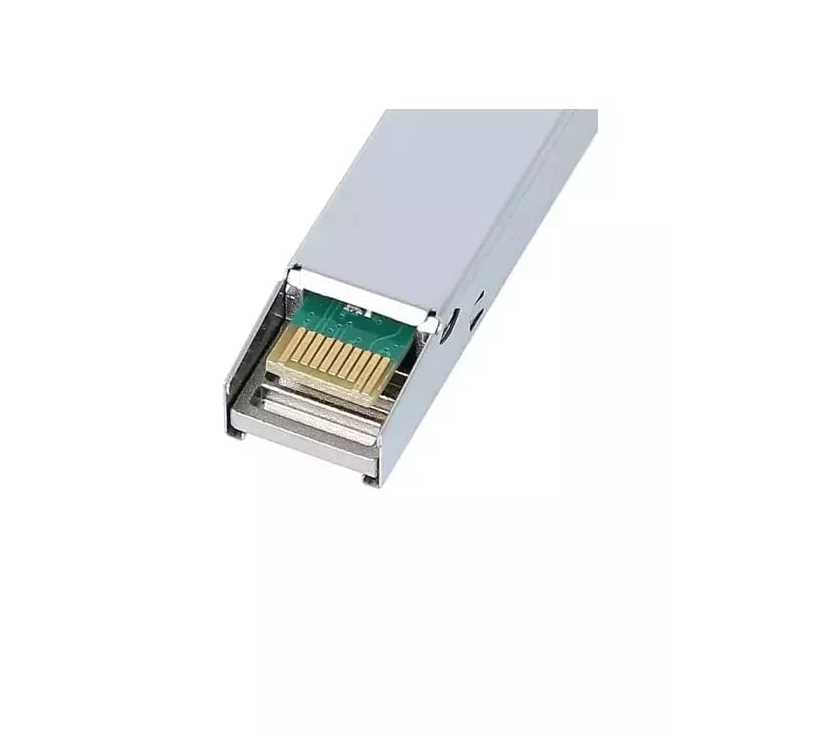

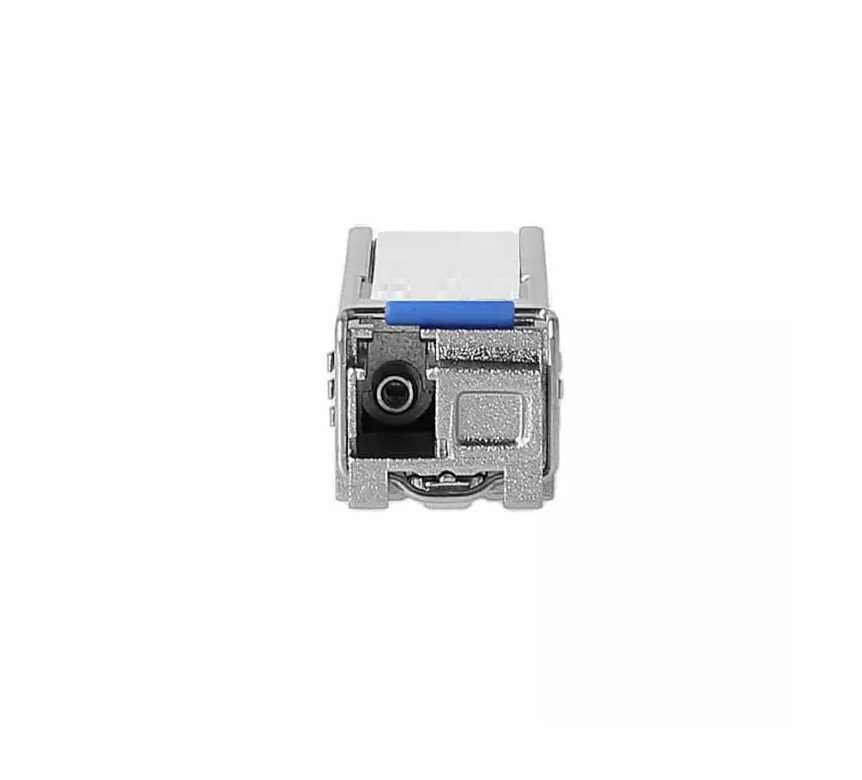

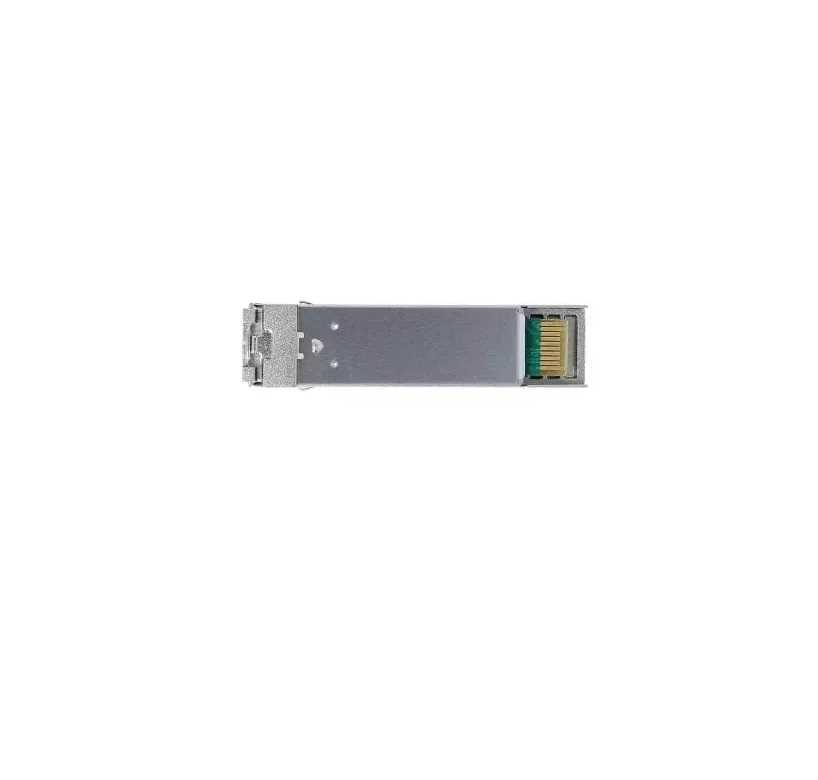

Juniper SFP-1GT13R14BX10-I SFP GE-BX10D SMF 10km TX1310nm RX1490nm Gigabit Ethernet Optical Transceiver (Silver)- 740-054647


Brand:

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-1GT13R14BX10-I

    Technical Specifications:
  • Part Number: 740-054647
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Connector Type: Simplex LC

    Monitoring:
  • Digital Optical Monitoring (DOM): Yes, providing monitoring for parameters like temperature, supply voltage, Tx bias current, etc.
  • Digital Diagnostic Monitoring: Yes, compliant with MSA standards (SFF-8472).

    Performance:
  • Signaling Rate: 1.25 GBd ± 100 ppm (Gigabits per second)
  • Transmitter Wavelength: 1260 nm to 1360 nm (range)
  • Receiver Wavelength: 1480 nm to 1500 nm (range)

    Tx Output Power:
  • Minimum: -9 dBm
  • Maximum: -3 dBm

    Rx Input Power:
  • Minimum: -20 dBm
  • Maximum: -3 dBm

    Receiver Sensitivity (OMA):
  • Maximum: -18.7 dBm
  • Stressed Receiver Sensitivity: -14.6 dBm

    Fiber and Distance:
  • Cable Type: Single Mode Fiber (SMF)
  • Core Size: 9/125 µm
  • Distance: 10 km (maximum transmission distance over SMF)

    Power and Temperature:
  • Max Power Consumption: 1.0 W
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C

    Dimensions and Weight:
  • Weight: 75 grams
  • Height: 8.5 mm
  • Width: 13.4 mm
  • Depth: 56.5 mm

    Compliance:
  • Standard: Juniper Networks proprietary specification (likely customized for Juniper devices).
  • MSA Compliance: SFF-8665, SFF-8472
    740-054647
    SFP-1GT13R14BX10-I
    Juniper Transceiver
    Transceiver

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
