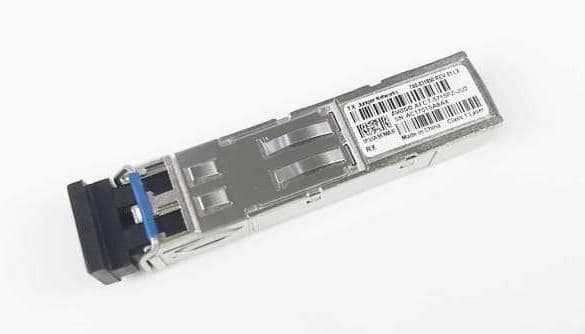

Juniper SFP-1GE-LX GE SFP LX Plug In Transceiver Module


Brand:

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: Juniper
  • Model: SFP-1GE-LX
   Specification:
  • Standards compliance (Ethernet/OTN Standard, for e.g.: 100GBASE-LR4) 1000 BASE-LX
  • MSA compliance (SFF, for e.g. SFF-8665): INF-8074i
  • Optic Type (Commercial Vs Service Provider Grade): Commercial
   Digital Diagnostic Monitoring:
  • Tx Power
  • Rx Power
  • Tx Bias Current
  • Case Temperature
  • Power Supply Voltage
  • Signaling rate, each lane: 1.25 Gbps
  • Transmitter wavelengths (range): 1270 nm to 1355 nm
  • Receive lane wavelengths (range): 1270 nm to 1355 nm
  • Transmitter output power, each lane (minimum): -9.5 dBm
  • Transmitter output power, each lane (maximum): -3 dBm
  • Receiver input power, each lane (minimum): -19 dBm
  • Receiver input power, each lane (maximum): -3 dB
  • Stressed receiver sensitivity (OMA) each lane (maximum): -14.4 dBm
  • Maximum Power consumption (W): 1 W
  • Operating Temperature (range): –5° C to 70° C
  • Storage temperature: –40° C to 85° C


Features

Brand:
Juniper
Warranty:
1 Year
