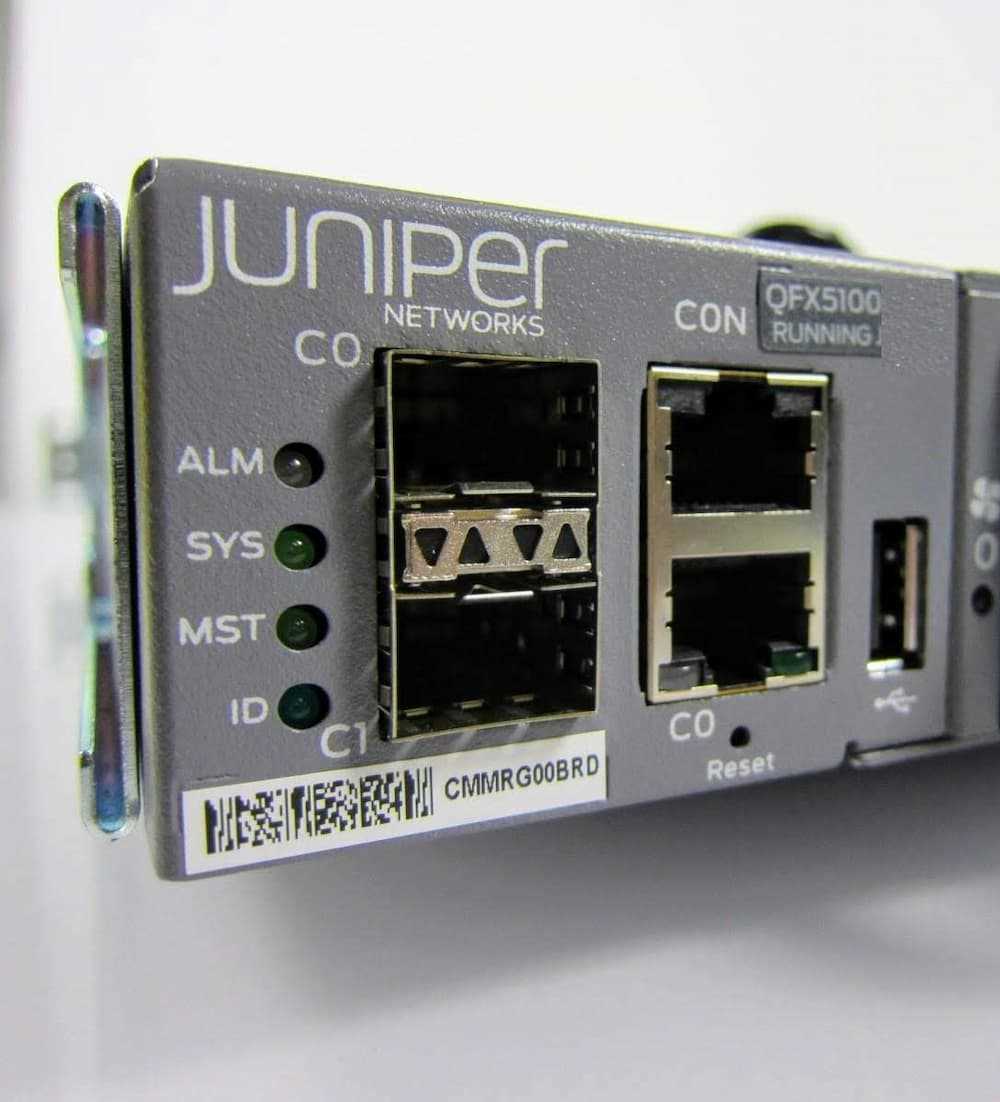

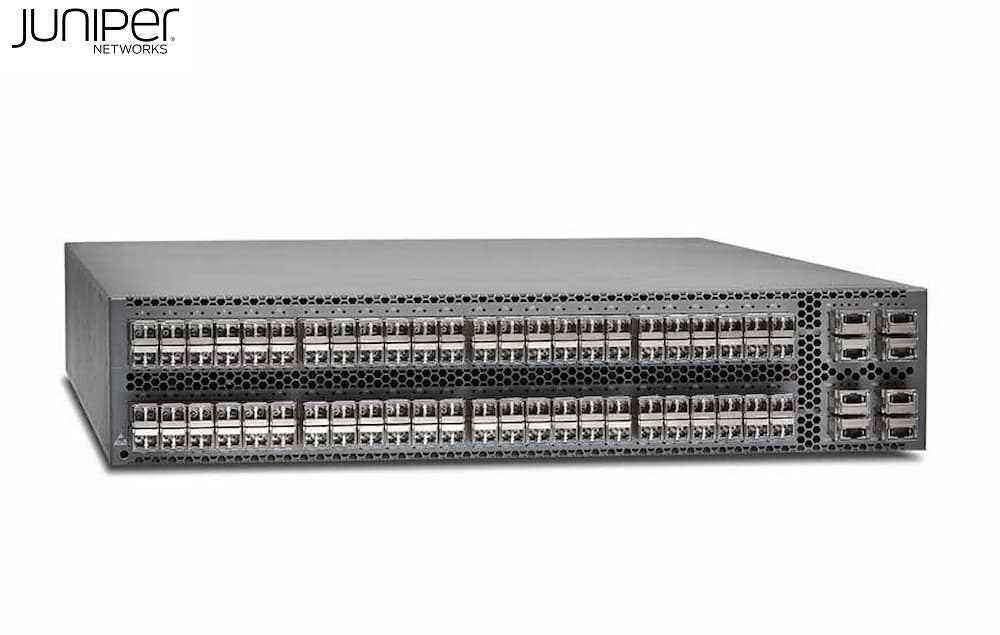

Juniper Networks QFX5100-96S QFX Series 96 ports Managed Rac Switch (Grey)


Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: Juniper Networks
  • Model: QFX5100-96S
  • UPC: 832938067585
  • Color: Grey
      Specifications:
  • Clock Speed: 1.5 GHZ
  • Processor Brand: Intel
  • Processors Installed: 1
  • RAM Installed: 8 GB
      Network Communication:
  • Advanced Switching: Layer 3
       Compliant Standards:
  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, Shaped Deficit Weighted Round-Robin (SDWRR)
  • Fibre Channel: FC-BB-5, FC-BB-6
  • Form Factor (Hubs & Switches): Rack-mountable
  • Jumbo Frame Support: 9216 bytes
  • MAC Address Table Size: 288K entries
  • Manageable: Yes
  • Ports: 96
  • Product Type: Switch
  • Remote Management: CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
  • Subcategory: Network hubs and switches
  • Switching Type: 10 Gigabit Ethernet
       Connectivity:
  • Interface Provided: 1 x console management, 1 x RJ-45 management, 1 x SFP management, 1 x USB management, 8 x QSFP+ (breakout compatible), 96 x SFP+
  • Port Quantity: 96
  • Port Type: 1 Gigabit SFP/ 10 Gigabit SFP+
  • Ports Type (2nd): 40 Gigabit QSFP+ (breakout compatible)
       Power:
  • Frequency: 50/60 hertz
  • Power Provided: 850 watt
  • Power Supplies Installed: 2
  • Power Supplies Supported: 2
  • Redundant Power Supply: Yes
  • Redundant Power Supply Supported: 1+1
  • 80 PLUS Certification: 80 PLUS
       Technical Information:
  • Built-in Devices: 32 GB SSD
  • Encryption: AES, MD5
  • Humidity Range Storage: 0 - 95% (non-condensing)
  • Max Operating Temperature: 104 degree Fahrenheit
  • Max Storage Temperature: 158 degree Fahrenheit
  • Min Operating Temperature: 32 degree Fahrenheit
  • Min Storage Temperature: -40 degree Fahrenheit
  • Operating Humidity: 5 - 90% (non-condensing)
  • Operating System Required: JUNOS


Features

Brand:
Juniper Networks
Color:
Grey
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
832938067585
Warranty:
3 Years
