Home Optics and Transceivers Juniper JCO Series Optics (Grey)

Juniper JCO Series Optics (Grey)
Previous
  1. Juniper JCO Series Optics (Grey)
Next

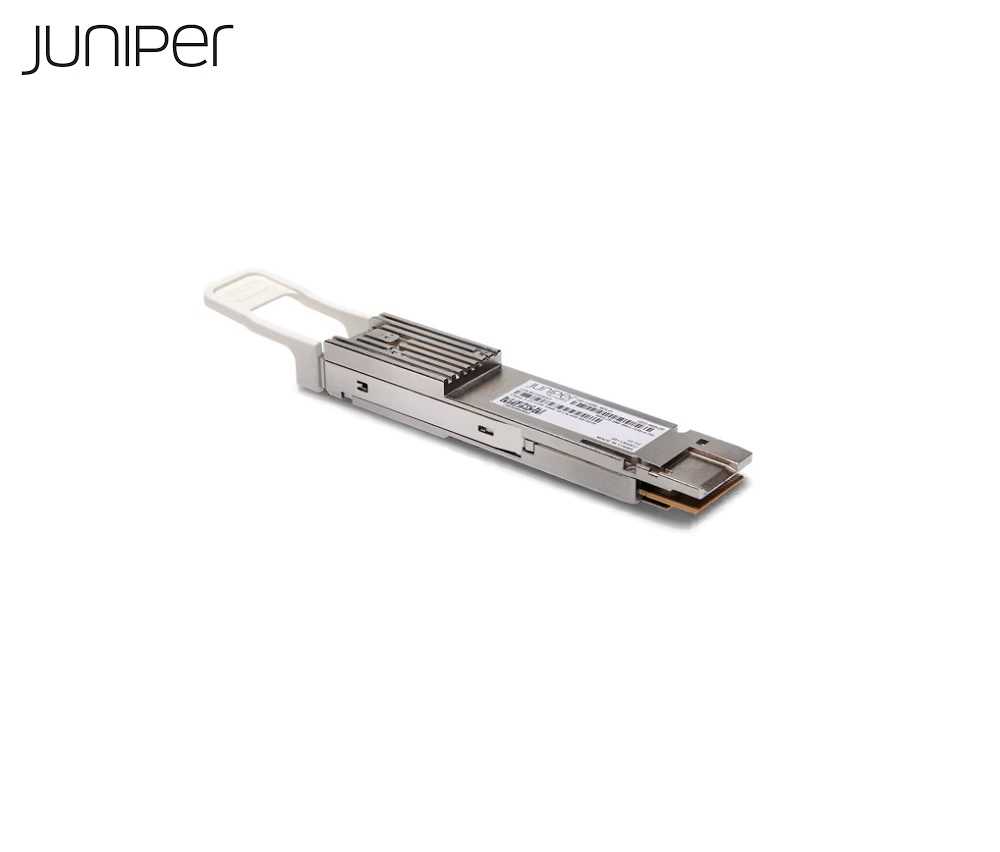

Juniper JCO Series Optics (Grey)

Brand:
Juniper

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper

    Description
  • Co-developed by Juniper and an industry-leading optical module partner, Juniper’s JCO family of coherent dense wavelength division multiplexing (DWDM) optical transceivers delivers best-in-class power efficiency and full integration into Junos® OS and Junos OS Evolved for streamlined configuration, management, and automation of a converged packet-optical solution. All JCO series products are fully compliant with key industry standards and specifications to ensure seamless interoperability in multivendor environments.

    Features and Benefits
    Industry-Leading Performance
  • The JCO400-ZR/ZR+ optics solutions provide best-in-class power efficiency in a footprint-optimized form factor that suits a range of metro, edge, and core network use cases, including data center interconnect, mobile backhaul, next gen packet core networks, and more. JCO400-ZR/ZR+ modules support flexible configurations and channelized modes as specified by the OIF 400ZR IA and OpenZR+ MSA.

    Operational Simplicity
  • JCO400-ZR/ZR+ optic modules help network operators alleviate operational pain points in managing the health of the end-to-end IP/optical solution. For example, the JCO400-ZR/ZR+ optics have the ability to separate the operation of the host and line side interfaces. Separating the operation of the two interfaces enables simplified testing and provisioning of the optical elements of the network, independent of the IP-Ethernet layer. Additionally, Juniper supports the use of standardized OpenConfig models for vendor-agnostic management of 400GbE Coherent DWDM Optics, providing ease of integration, deployment, and network maintenance.

    Open and Interoperable
  • As an active contributing member of the OIF, OpenZR+ MSA, and QSFP-DD MSA among other key optical-standards bodies, Juniper is at the forefront of building open and interoperable networking ecosystems. Juniper leverages a standards-compliant, multivendor ecosystem to seamlessly diversify the component supply chain ensuring stable supply and improved lead times.

    Specifications
  • Form factor: QSFP56-DD
  • Speed/mode: 1 x 100 GbE, 2 x 100 GbE, 3 x 100 GbE, 4 x 100 GbE, 1 x 400 GbE
  • Distance: 40 km to 2,000 km
  • MSA compliance (SFF, e.g., SFF-8665)
  • OIF 400ZR Implementation Agreement (IA)
  • Speed/Mode: 400 Gbps Ethernet, 4x100 Gbps Ethernet
  • Signaling rate, each lane: 478.750 Gbps 59.84375 GBd +/- 20 ppm
  • Modulation format: DP-16 quadrature amplitude modulation (QAM)
  • Forward error correction (FEC) types: Concatenated FEC (CFEC)
  • Channel plan wavelength range: 1567.13 nm through 1528.77 nm
  • Channel plan frequency range: 191.3 THz through 196.1 THz
  • Channel spacing: 75 GHz or 100 GHz
  • Channel tunability: 6.25 GHz grid
  • Optical transmitter output power (on): Min: –10 dBm, Tx output power accuracy: +/–1.5 dB
  • Optical transmitter output power (off): -20 dBm
  • Optical transmitter wavelength accuracy: +/- 1.8 GHz
  • Optical transmitter channel tuning time: 60 sec
  • Optical receiver input power range: –12 through 0 dBm
  • Optical receiver damage input power threshold: 15 dBm
  • Optical receiver input sensitivity (unamplified or dark-fiber applications): -20 dBm
  • Optical receiver minimum OSNR (back-to-back), typical: < 26 dB
  • Optical receiver minimum OSNR (back-to-back), worst-case, EOL: 26 dB
  • Optical receiver chromatic dispersion tolerance: +/– 2.4 ns/nm
  • Optical receiver polarization-mode dispersion PMD tolerance: 10 ps (@ 0.7 dB OSNR penalty) 7 ps (@ 0.5 dB Rx sensitivity penalty)
  • Optical receiver polarization tracking: 50 krad/s
  • Receiver PDL tolerance (dB): 3.5 dB (@ 1.8 dB OSNR penalty) 1.5 dB (@ 0.4 dB Rx sensitivity penalty)
  • Cable type: Single-mode fiber-optic (SMF)
  • Core size/cladding: 9/125 µm
  • Distance: 120 km
  • Notes for distance: <120 km (DWDM amplified, noise limited links), < 40 km (single wavelength unamplified, loss limited links)
  • Maximum power consumption (W): 19 W
  • Operating temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
  • Typical weight and dimensions: Weight: 85 g +/–5 g
  • Dimensions: QSFP-DD MSA compliant

    Digital diagnostic monitoring (DDM):
  • Module temperature (Celsius)
  • Pre - FEC bit error rate (BER)
  • Uncorrected Frame Error Rate (FER)
  • Signal-to-noise ratio (SNR)
  • Tx power (dBm)
  • Rx total power (dBm)
  • Carrier frequency offset (MHz)
  • Chromatic dispersion (ps/nm)
  • Differential group delay (ps)
  • Polarization dependent loss (PDL) (dB)
  • Optical signal-to-noise ratio (OSNR) (dB)
    Juniper JCO Series Optics

Features

Brand:
Juniper
Warranty:
1 Year
