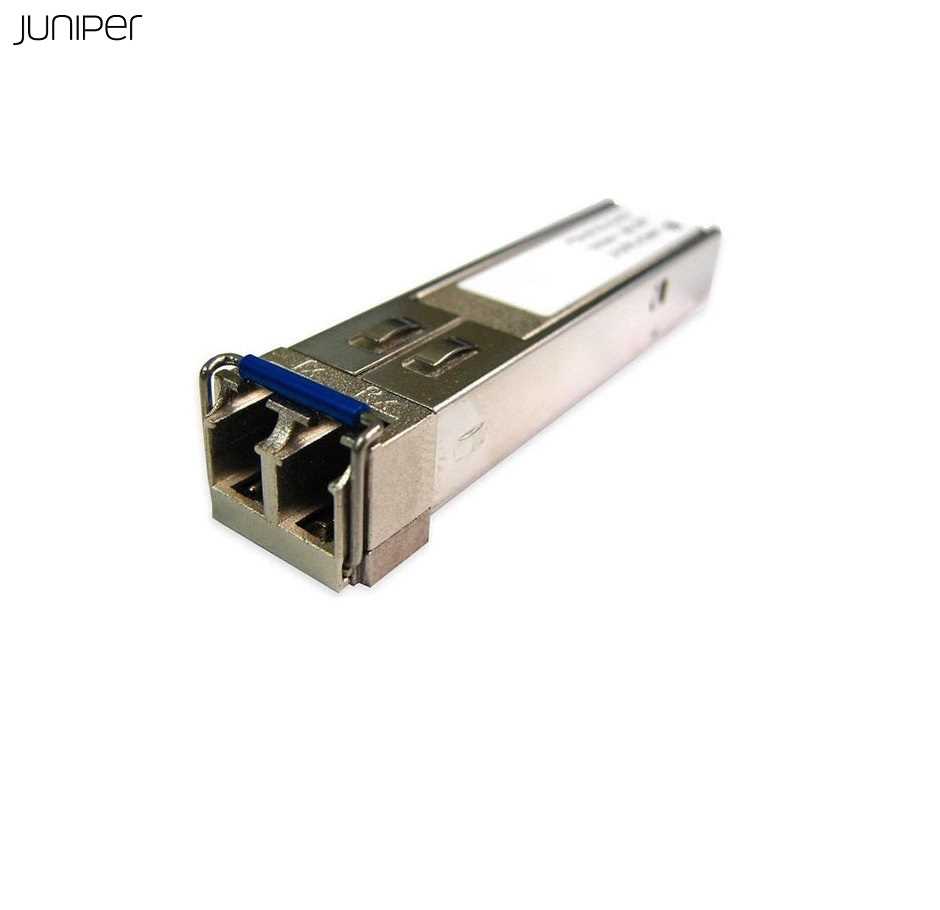

Juniper EX-SFP-GE10KT14R13 SFP 1000Base-BX Gigabit Ethernet Optical Transceiver with Tx 1490nm/Rx 1310nm for 10km Transmission (Silver)


Brand:

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: EX-SFP-GE10KT14R13

    Specifications:
  • Part Number: 740-020465
  • Product Type: Optical Transceiver
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Connector Type: Simplex LC
  • Monitoring Available: Yes (supports Digital Optical Monitoring/Digital Diagnostic Monitoring)
  • Distance: 10 km over SMF
  • Maximum Power Consumption: 1 W
  • Operating Temperature Range: -0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.15 lb
  • Dimensions: 57.5 mm (Length), 14 mm (Width), 12.05 mm (Height)

    Performance:
    Signaling Rate (each lane):
  • 1.25 GBd (Gigabits per second, ±100 ppm)
  • 1000 Mbps (1 Gbps) signaling rate on each lane

    Transmitter Wavelength:
  • 1480 nm to 1500 nm (for transmitting)
  • 1490 nm (center wavelength)

    Receiver Wavelength:
  • 1260 nm to 1360 nm (for receiving)
  • 1310 nm (center wavelength)

    Transmit Power (per lane):
  • Minimum: –9 dBm
  • Maximum: –3 dBm

    Receiver Power (per lane):
  • Minimum: –19.5 dBm
  • Maximum: –3 dBm

    Fiber:
  • Cable Type: Single-Mode Fiber (SMF)
  • Core Size / Cladding: 9/125 µm (standard for SMF)
  • Effective Modal Bandwidth: Not specified, but SMF typically has high bandwidth.

    Additional Features:
  • Digital Optical Monitoring: This allows monitoring of the transceiver’s performance through parameters like transmitter temperature, voltage, current, output power, and received optical power.
  • Transceiver Temperature: Monitored via Digital Diagnostic Monitoring.
  • Transceiver Supply Voltage, Tx Bias Current, Tx Output Power, Rx Received Optical Power: All monitored by the module for performance diagnostics.
    EX-SFP-GE10KT14R13

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
