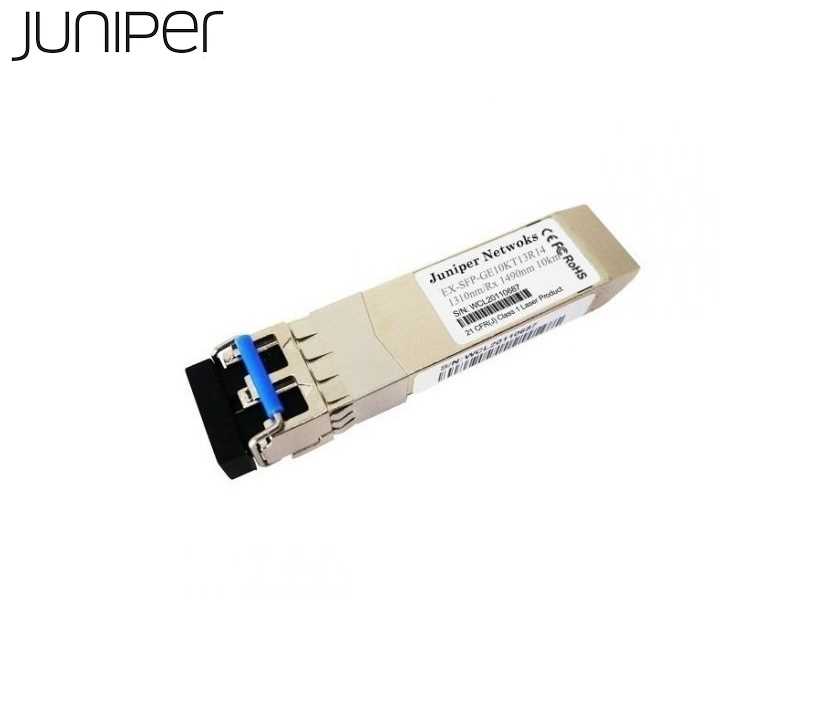

Juniper EX-SFP-GE10KT13R14 SFP 1000Base-BX Gigabit Ethernet Optical Transceiver with Tx 1310nm/Rx 1490nm for 10km Transmission (Silver)


Brand:

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: EX-SFP-GE10KT13R14

    Specifications
  • Part Number: 740-021340
  • Speed: 1 Gbps (Gigabit Ethernet)
  • Product Type: Optical Transceiver (SFP)

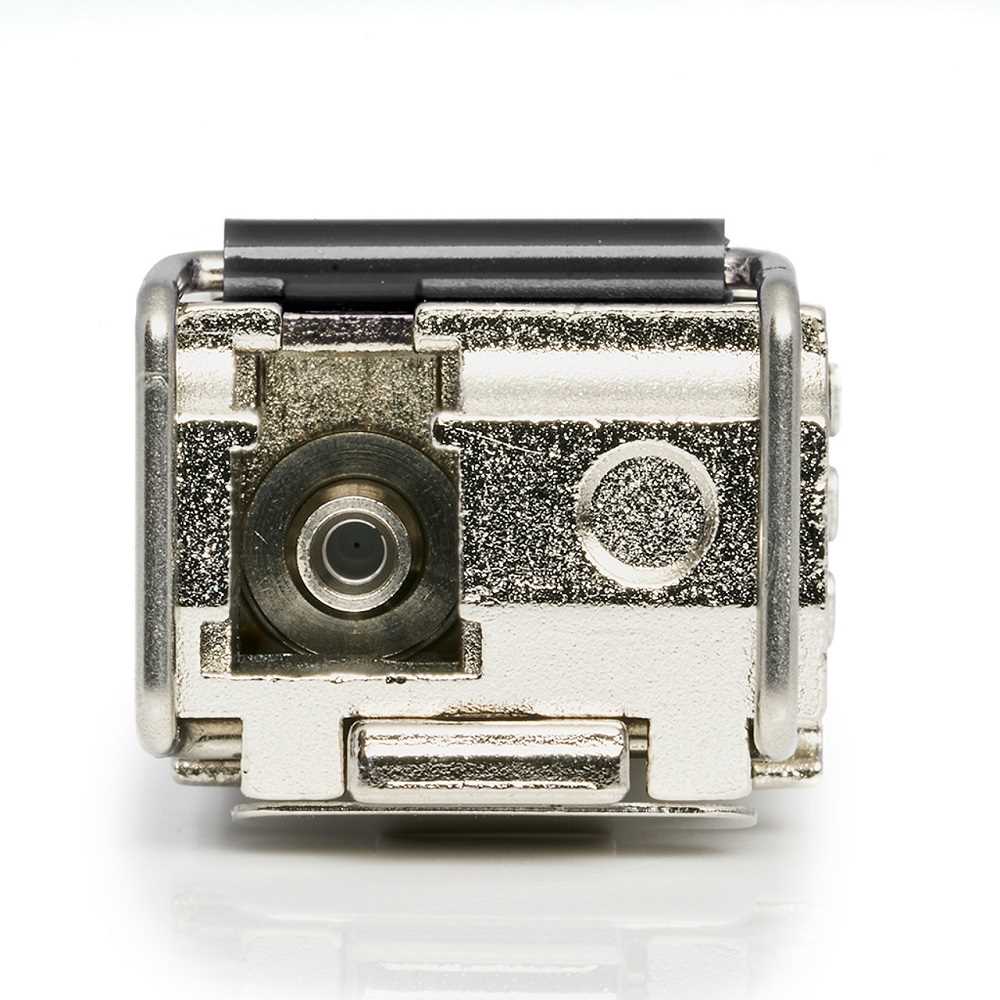

  • Connector: Simplex LC (single-fiber connection)
  • Breakout Capable: No (likely indicating that this module is not designed to split or break out into multiple channels)
  • Transceiver Type: SFP (Small Form-factor Pluggable)
  • Monitoring Available: Yes (supports Digital Diagnostic Monitoring)

    Transmitter Output Power per Lane:
  • Min: –9 dBm
  • Max: –3 dBm

    Receiver Input Power per Lane:
  • Min: –19.5 dBm
  • Max: –3 dBm

    Diagnostic Monitoring Features:
    Transceiver Temperature
    Transceiver Supply Voltage
  • Tx Bias Current
  • Tx Output Power
  • Rx Received Optical Power

    Optical Performance:
  • Signaling Rate per Lane: 1.25 Gbps (± 100 ppm)
  • Transmitter Wavelengths: 1260 nm to 1360 nm
  • Receiver Wavelengths: 1480 nm to 1500 nm
  • Cable Type: SMF (Single-Mode Fiber)
  • Core Size/Cladding: 9/125 µm
  • Distance: 10 km (maximum distance supported)

    Power and Temperature:
  • Maximum Power Consumption: 1 W
  • Operating Temperature Range: 0° C to 70° C
  • Storage Temperature Range: –40° C to 85° C

    Physical Dimensions and Weight:
  • Width: 14 mm
  • Height: 12.05 mm
  • Length: 57.5 mm
  • Weight: 0.15 lb

    Additional Features:
  • Signaling Rate (1000 Mbps) indicates that this is designed for 1 Gbps Ethernet speeds, which aligns with the first signaling rate mentioned.
  • Transmitter Wavelengths (1310 nm) and Receiver Wavelengths (1490 nm) are within the typical ranges for Gigabit Ethernet over SMF.
    EX-SFP-GE10KT13R14
    Transceiver

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
