Juniper EX-SFP-1FE-LX SFP 100BASE-LX LC Connector, 1310nm, 10km Reach on Single Mode Fiber Optical Transceiver (Silver)


Brand:

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: EX-SFP-1FE-LX

    Overview:

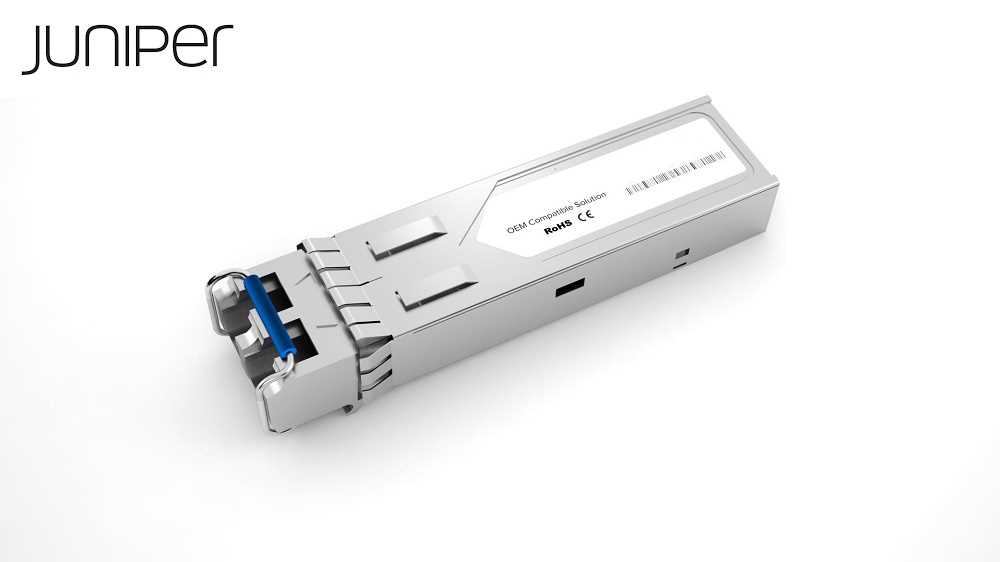

  • The SFP Optical Transceiver Module (Part Number: 740-028307) is designed for high-speed Ethernet applications. With a signaling rate of 100 Mbps and 1310nm wavelength, this 100BASE-LX transceiver ensures seamless communication over Single-Mode Fiber (SMF) cables. Ideal for data centers, enterprise networks, and telecommunications, it supports Duplex LC connections for long-distance fiber optic transmission up to 10 km.

    Key Features:
  • Transceiver Type: SFP (Small Form-factor Pluggable) – Ideal for high-performance Ethernet networks.
  • Connector Type: Duplex LC – Optimized for fiber optic connections.
  • Wavelength: 1310nm – Suitable for long-distance fiber optic communication.
  • Maximum Distance: 10 km over Single-Mode Fiber (SMF).
  • Operating Temperature: Supports a wide temperature range from -5°C to 70°C, making it versatile for various environmental conditions.
  • Power Consumption: Low power usage, only 1 W.
  • Digital Optical Monitoring: Built-in monitoring features for enhanced performance tracking.

    Specifications:
  • Signaling Rate: 100 Mbps per lane
  • Transmitter Output Power: -15 dBm to -8 dBm per lane
  • Receiver Input Power: -31.5 dBm to -8 dBm per lane
  • Core Size/Cladding: 9/125 µm Single-Mode Fiber (SMF)

    Applications:
  • Ethernet networking
  • Data center equipment
  • Long-distance optical communication
  • Telecommunications
    EX-SFP-1FE-LXTransceiver

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
