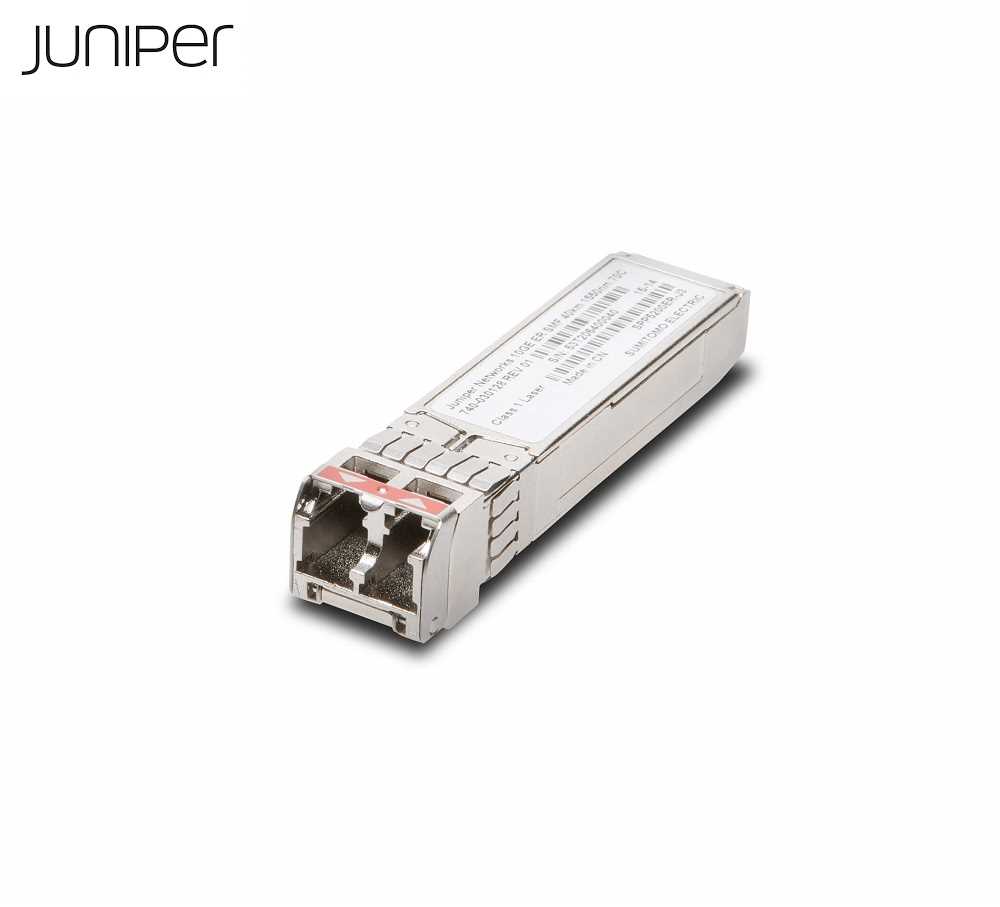

Juniper EX-SFP-1FE-FX Small Form Factor Pluggable 100Base-FX Fast Ethernet Optical Transceiver (Silver)


Brand:

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: EX-SFP-1FE-FX

    Specifications:
  • Product Type: Optical Transceiver (SFP)
  • Connector Type: Duplex LC (commonly used for fiber optic connections)

    Transceiver Capabilities:
  • Speed: 100 Mbps (100BASE-FX)
  • Ethernet Breakout: Not available (this refers to the ability to split traffic into multiple streams, which this module does not support)
  • Transmitter Fibers: Dual fibers (for both transmit and receive)
  • Wavelength: 1310 nm (common for long-distance communications)

    Transmission Power:
    Transmitter Output Power:
  • Minimum: –20 dBm
  • Maximum: –14 dBm
  • Receiver Input Power:
  • Minimum: –32.5 dBm
  • Maximum: –8 dBm

    Fiber Compatibility:
  • Cable Type: Multi-mode fiber (MMF)

    Core Size/Cladding:
  • 62.5/125 µm for OM1
  • 50/125 µm for OM2
  • Fiber Grade: FDDI (Fiber Distributed Data Interface), OM1, OM2
  • Distance: Up to 2 kilometers (2 km) on suitable multimode fiber cables

    Power Consumption:
  • Maximum: 1 W (low power consumption typical for SFP modules)

    Temperature Range:
  • Operating Temperature: –5°C to 70°C
  • Storage Temperature: –40°C to 85°C

    Additional Features:
  • Digital Optical Monitoring (DOM): Available (enables monitoring of the optical signal quality, temperature, and other parameters)
  • Monitoring Availability: Yes, for performance tracking and maintenance.
    EX-SFP-1FE-FX

Features

Brand:
Juniper
Color:
Silver
Conditions:
New
Warranty:
1 Year
