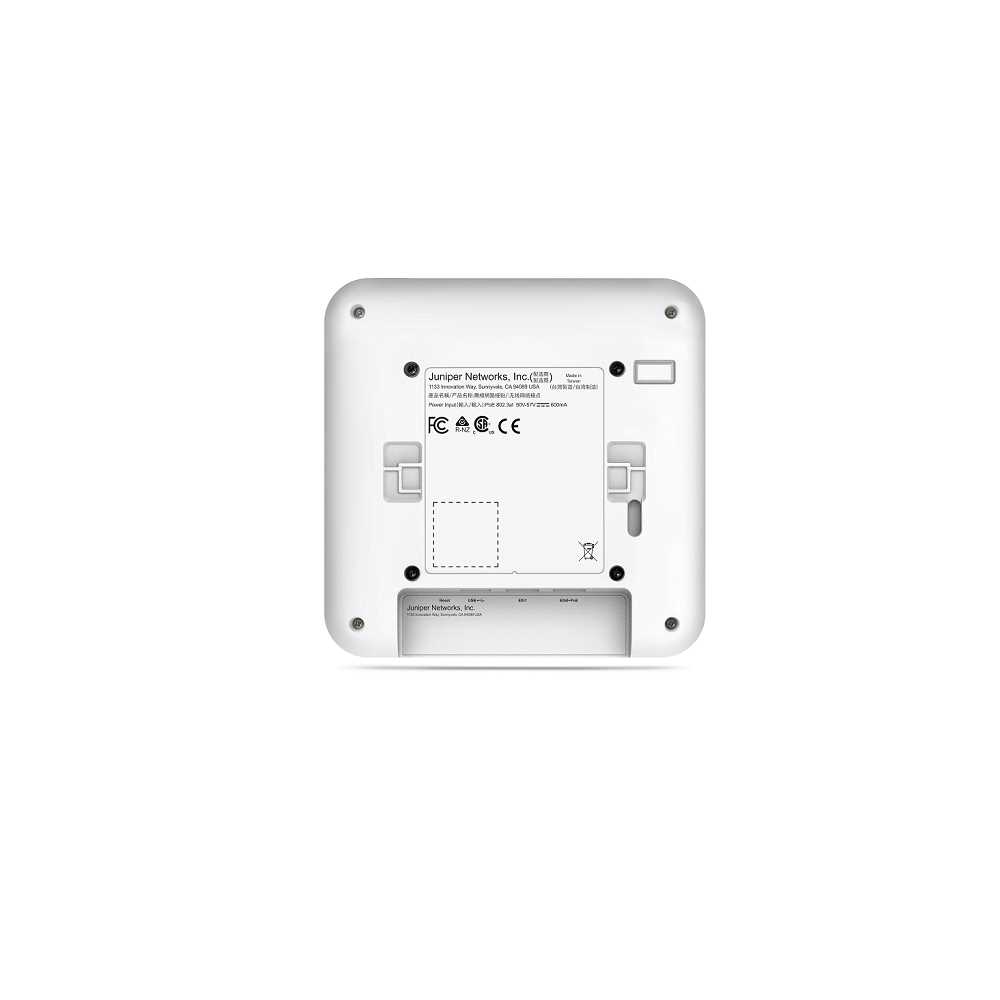

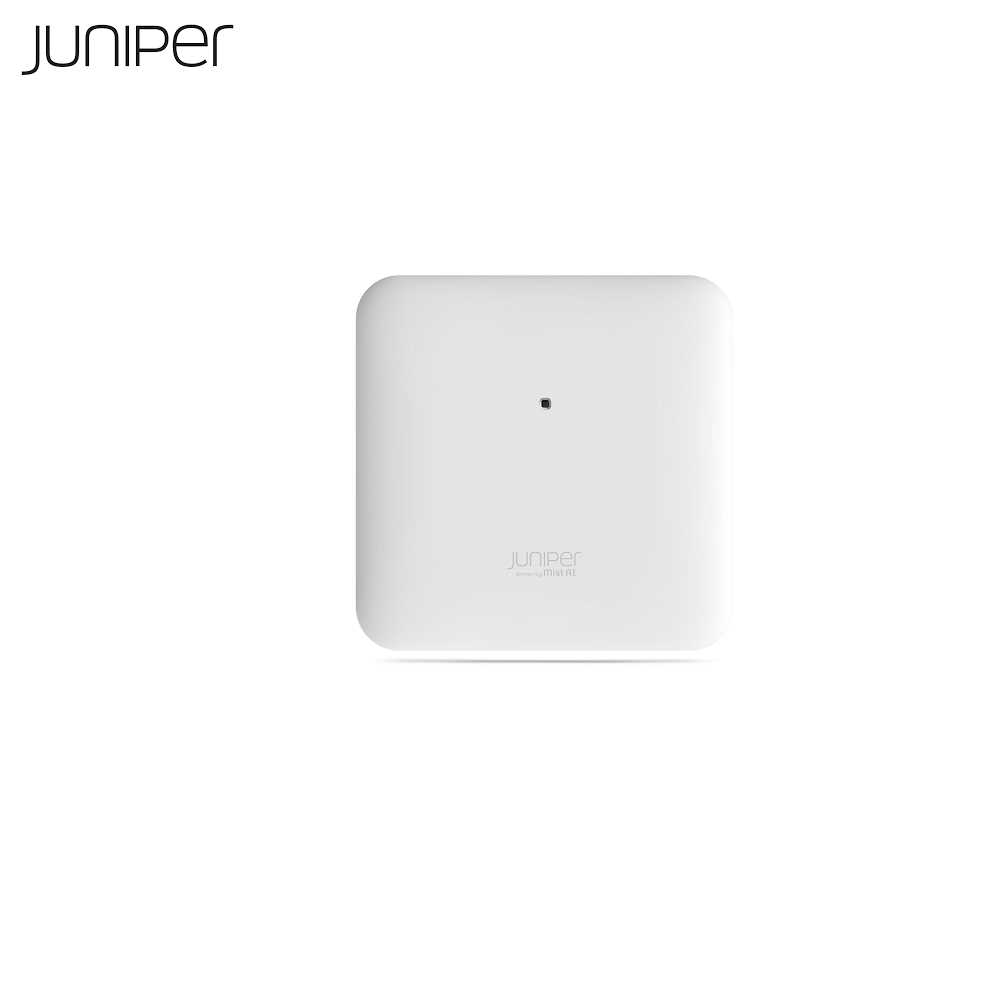

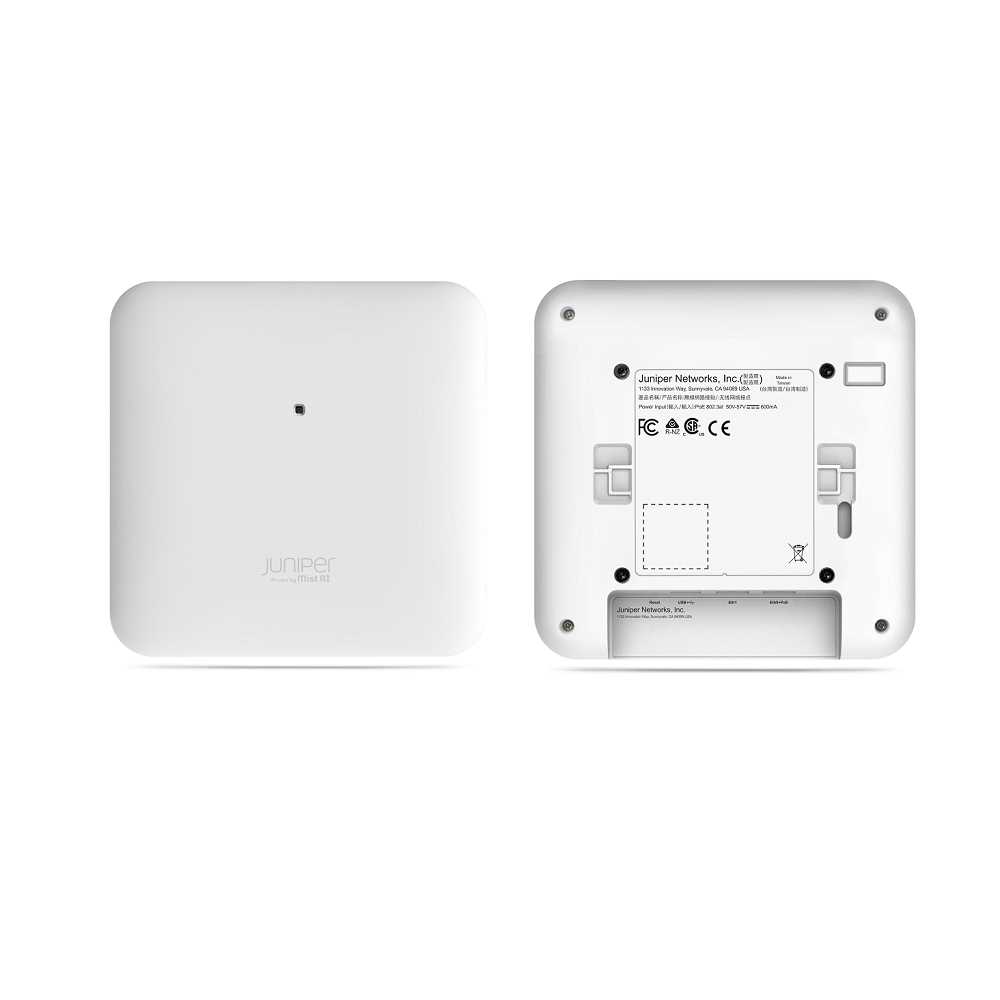

Juniper AP45 Wi-Fi 6E Tri-Band Indoor Access Point

• High-density enterprise office Wi-Fi 6E deployments
• 6GHz wireless access for modern enterprise client devices
• Corporate campuses requiring centralized wireless management
• Conference areas with high concurrent wireless client demand
• Indoor asset visibility using Juniper vBLE technology
• Indoor wayfinding and location-based engagement deployments
• Wireless security monitoring using the dedicated fourth radio
• RF spectrum analysis across enterprise wireless environments
• DevSecOps and IT teams requiring synthetic client testing
• IoT deployments requiring Bluetooth 5.1 connectivity
• Enterprise networks requiring multi-gigabit wireless uplinks
• Cloud-managed wireless infrastructure across multiple locations
• Organizations migrating from Wi-Fi 6 to Wi-Fi 6E networks
• Applications requiring high-capacity 6GHz wireless connectivity
• Remote troubleshooting through cloud-based packet capture

• Tri-band Wi-Fi 6E expands capacity with access to 6GHz spectrum
• 4x4:4 radios deliver high wireless capacity for enterprise clients
• Dedicated fourth radio supports security and spectrum monitoring
• 16-element vBLE array enables accurate indoor location services
• Up to 4.8Gbps 6GHz rate supports demanding wireless workloads
• 5GbE Ethernet provides multi-gigabit network connectivity
• 802.3bt power enables full AP functionality and PSE output
• 802.11ax OFDMA improves efficiency across connected clients
• MU-MIMO supports concurrent communication with capable clients
• Automatic RF optimization helps manage channel interference
• Juniper Mist cloud connectivity simplifies configuration updates
• Dynamic packet capture assists remote wireless troubleshooting
• Bluetooth 5.1 supports vBLE-based location and IoT services
• Target Wake Time helps improve compatible IoT device efficiency
• TPM support strengthens infrastructure security at the access point

• Brand: Juniper
• Model: AP45
• Product Type: Indoor Enterprise Wireless Access Point
• Deployment: Indoor
• Wi-Fi Standard: IEEE 802.11ax Wi-Fi 6
• Wireless Bands: 2.4GHz, 5GHz and 6GHz
• Radio Architecture: Tri-band with dedicated fourth radio
• MIMO: 4x4:4 SU-MIMO and 4x4:4 MU-MIMO
• Maximum 2.4GHz Data Rate: Up to 1,148 Mbps
• Maximum 5GHz Data Rate: Up to 2,400 Mbps
• Maximum 6GHz Data Rate: Up to 4,800 Mbps
• Combined Supported Data Rate: Up to 8.3 Gbps tri-band
• Ethernet: 100/1000/2500/5000Base-T RJ45 PoE PD
• Power Options: 802.3af, 802.3at and 802.3bt
• Bluetooth: Bluetooth 5.1 with 16-element vBLE array
• Dimensions: 230 x 230 x 50 mm
• Weight: 2.01 kg AP45
• Operating Temperature: 0°C to 40°C internal antenna model
• Operating Humidity: 10% to 90% non-condensing
• Operating Altitude: Up to 3,048 m 10,000 ft
• Security Hardware: Trusted Platform Module TPM
• AP45: Internal-antenna Wi-Fi 6E model; AP45E: external-antenna variant with pluggable antenna connectors

WHY CHOOSE THIS PRODUCT?

• 6GHz Wi-Fi 6E capacity helps accommodate high-density enterprise clients
• Dedicated fourth radio adds security sensing without consuming data radios
• 16-element vBLE array enables location services without BLE beacons
• 5GbE uplink helps prevent wired connectivity from limiting Wi-Fi capacity
• Multiple PoE modes provide flexibility across enterprise switching platforms
• Mist cloud integration simplifies configuration and firmware management
• Dynamic packet capture helps reduce on-site troubleshooting requirements
• Integrated sensing and analytics support broader wireless infrastructure visibility
