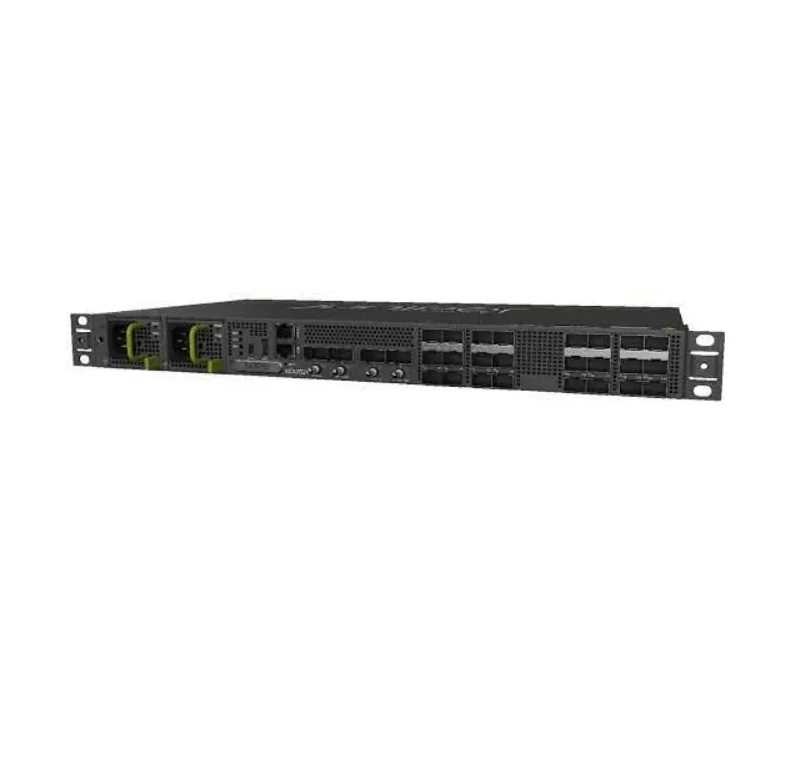

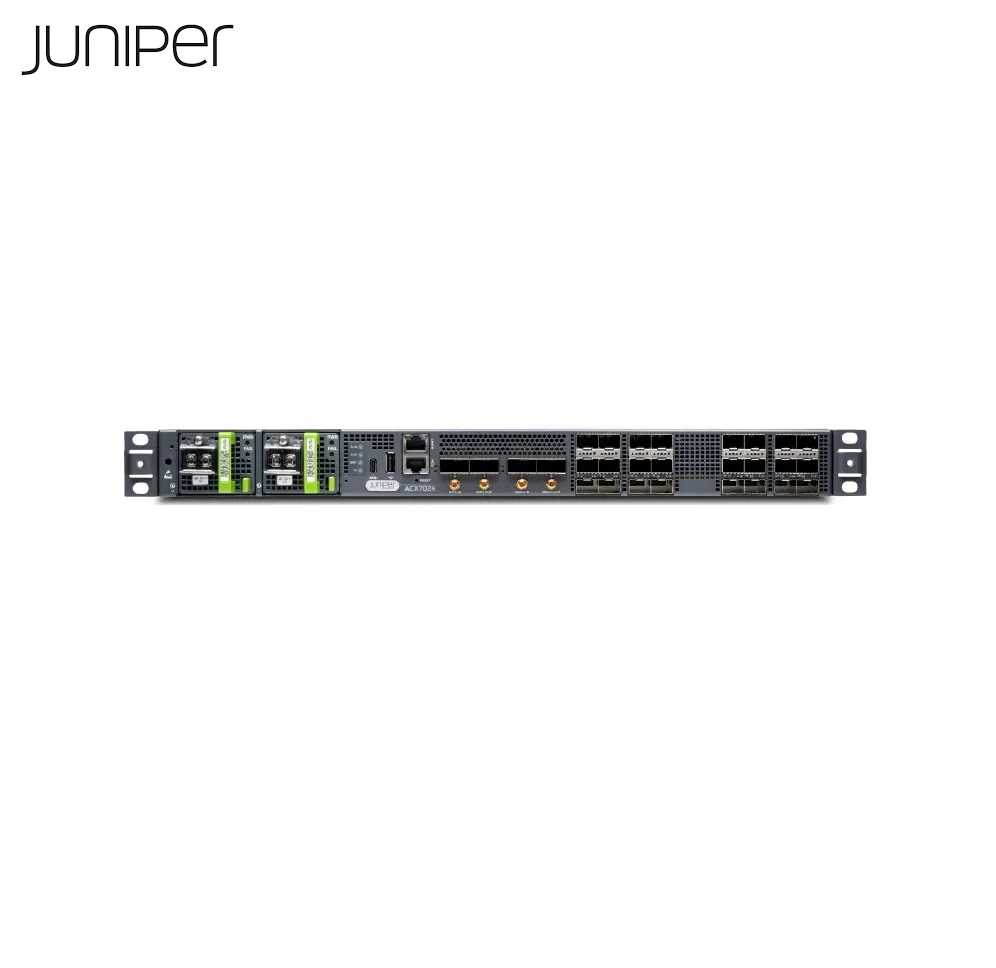

Juniper ACX7024 & ACX7024X Cloud Metro Compact 1U Routers with 360Gbps Throughput Speed (Black)

Brand:
Juniper

Specifications

        Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Juniper
  • Model: ACX7024 & ACX7024X

    Description
  • Mobile network cell sites require best-in-class access performance. The ACX7000 family of sustainable routers delivers the low-latency connectivity, leading capacity, and reliability necessary for optimal 4G/5G-and-beyond communications.
  • The ACX7024 and ACX7024X are environmentally rated, high-performance platforms that deliver 360 Gbps throughput in a 1-U form factor. They offer 24 multirate 1/10/25GbE ports and four 100GbE ports to scale cloud metro services.
  • The ACX7024 and ACX7024X are MEF 3.0-certified and ideal for metro access applications that are based on passive optical networking (PON) and related technologies. Powered by Junos® OS Evolved and Juniper Paragon™ Automation, they deliver advanced features, such as segment routing (SR), SRv6, MPLS, EVPN-VXLAN, advanced programmability, network slicing, and telemetry.

    Features + Benefits
    Compact but Powerful
  • Packing 360 Gbps throughput and an efficient cooling design into a 1-U footprint, the routers allow you to reduce space and power requirements. The ACX7024 is industrial-rated for temperature resilience.

    Multiservice Platform
  • Address 5G, IoT, and cloud requirements in a unified platform that connects your residential, enterprise, wholesale, and 4G/5G customers directly to your converged and automated Juniper Cloud Metro architecture.

    Investment Protection
  • Flexible support for 1/10/25GbE and 100GbE ports guarantees built-in scalability for service migration and growth.

    One Junos Experience
  • Junos OS Evolved delivers the same stability, ease of operation, and advanced programmability across the entire ACX7000 family of Cloud Metro Routers, accelerating deployments and simplifying operations.

    Cloud Metro as Experience Sensor
  • With Paragon Active Assurance agents embedded into every Juniper ACX7000 platform, your Juniper Cloud Metro network effectively becomes a sensor that automatically monitors and measures customers’ end-to-end service experiences.

    Specifications
    ACX7024
  • Form factor: Compact 1 U
  • Throughput: 360 Gbps
  • Port density: 24 x 1/10/25GbE + 4 x 100GbE
  • ASIC throughput: 360 Gbps
  • CPU: Intel 4C
  • Memory: RAM: 16GB DDR4
  • Chassis type: Fixed
  • Dimensions (W x H x D): 19 x 1.75 x 9.6 in (48.2 x 4.4 x 24.4 cm)
  • Weight (lb/kg) fully configured: 12.5 lb (5.66 kg)
  • Power (DC): -48 VDC through
  • Power (AC): 90 VAC to 264 VAC
  • Typical power draw (without optics)
  • Maximum power draw (without optics)
  • Operating temperature: -40 Degree C to +65 Degree C GR3108-class-2
  • Cooling: 6 fans, front-to-back airflow, baffle for side-side
  • Humidity: 5% to 90% RH (noncondensing) operating
  • Interfaces: 24x 1GbE/10GbE/25GbE SFP28 4x 100GbE QSFP-2

    Synchronization interfaces:
  • 1x RJ-45 port + TOD
  • 1 PPS/10 MHz input and output
  • GNSS Antenna (via USB)
  • 1x RJ-45 port + TOD
  • 1 PPS/10 MHz input and output
  • GNSS Antenna (via USB)

    • ACX7024X
  • Form factor: Compact 1 U
  • Throughput: 360 Gbps
  • Port density: 24 x 1/10/25GbE + 4 x 100GbE
  • ASIC throughput: 360 Gbps
  • CPU: Intel 4C
  • Memory: RAM: 64GB DDR4
  • Chassis type: Fixed
  • Dimensions (W x H x D): 19 x 1.75 x 9.6 in (48.2 x 4.4 x 24.4 cm)
  • Weight (lb/kg) fully configured: 12.5 lb (5.66 kg)
  • Power (DC): -48 VDC through
  • Power (AC): 90 VAC to 264 VAC
  • Typical power draw (without optics)
  • Maximum power draw (without optics)
  • Operating temperature: 0 Degree C to 40 Degree C GR-63-CORE
  • Cooling: 6 fans, front-to-back airflow, baffle for side-side
  • Humidity: 5% to 90% RH (noncondensing) operating
  • Interfaces: 24x 1GbE/10GbE/25GbE SFP28 4x 100GbE QSFP-28

    Synchronization interfaces:
  • 1x RJ-45 port + TOD
  • 1 PPS/10 MHz input and output
  • GNSS Antenna (via USB)
  • 1x RJ-45 port + TOD
  • 1 PPS/10 MHz input and output
  • GNSS Antenna (via USB)
    ACX7024 ACX7024XJuniper RouterRouterCloud Router

Features

Brand:
Juniper
Color:
Black
Conditions:
New
Warranty:
1 Year
