Home Networking Network Adapter Intel SFP28 SR Optical Transceiver Module Single Pack- E25GSFP28SRX

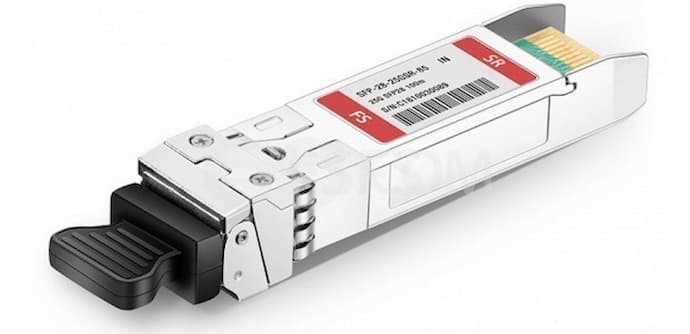

Intel SFP28 SR Optical Transceiver Module Single Pack- E25GSFP28SRX


Brand:

Specifications

   Product details:
  • 5 Years Warranty
  • Brand: Intel
  • Model: E25GSFP28SRX
   Item Spotlights
  • High Quality 25G Chip, VCSEL+PIN, Built-in CDR
  • Fully Compatible with 200+ Vendors
  • EMC Support, Anti Electro-Static Discharge and Radiation Resistant
  • For 25GBASE Ethernet, 100GE SR4 Fan Out to 25GE SR Applications
  • FS BOX - Support Real-time Encoding
  • Class 1 Laser Safety
  • Up to 100m/70m over OM4/OM3 (Support RS-FEC, FC-FEC)
   Technical Specification
  • Vendor Name: FS
  • Form Factor: SFP28
  • Max Data Rate: 25.78Gbps
  • Wavelength: 850nm
  • Connector: LC duplex
  • Media: MMF
  • Transmitter Type: VCSEL
  • Receiver Type: PIN
  • DDM/DOM: Supported: Commercial
  • Temperature Range: 0 to 70°C (32 to 158°F)
  • TX Power: -5~2.4dBm
  • Receiver Sensitivity: -10.3dBm
  • Powerbudget: 5.3dB
  • Receiver Overload: 2.4dBm
  • Power Consumption: <1W: Extinction Ratio: ?2dB
  • Modulation Format: NRZ: CDR (Clock and Data Recovery): TX & RX Built-in CDR
  • Transmit and Dispersion Penalty: 3dB: FEC Function
  • Support RS-FEC, FC FEC
  • Packaging Technology: COB (chip on board)
  • Packaging: EMC (Electromagnetic Compatibility)
   Supported
  • Protocols: IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI
  • MTBF: 200,000 Hours
  • Application: 25GBASE Ethernet, Data Center, Telecom, 100GE SR4 Fan Out to 25GE SR

Features

Brand:
Intel
Conditions:
New
Warranty:
5 Years
