Home Networking ICOM PTT VE-PG4 RoIP Satellite Gateway Server - Black

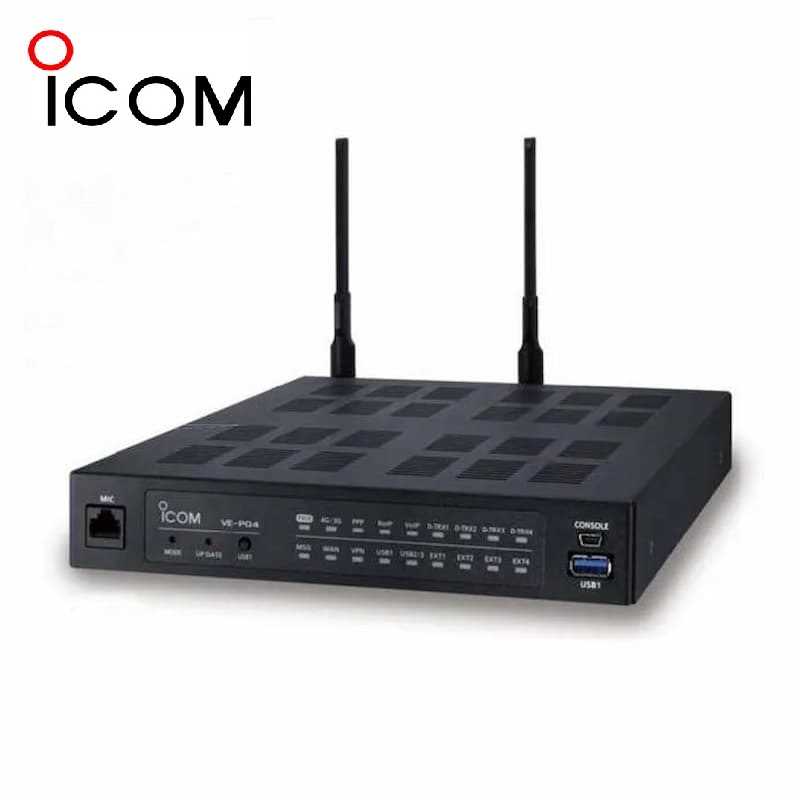

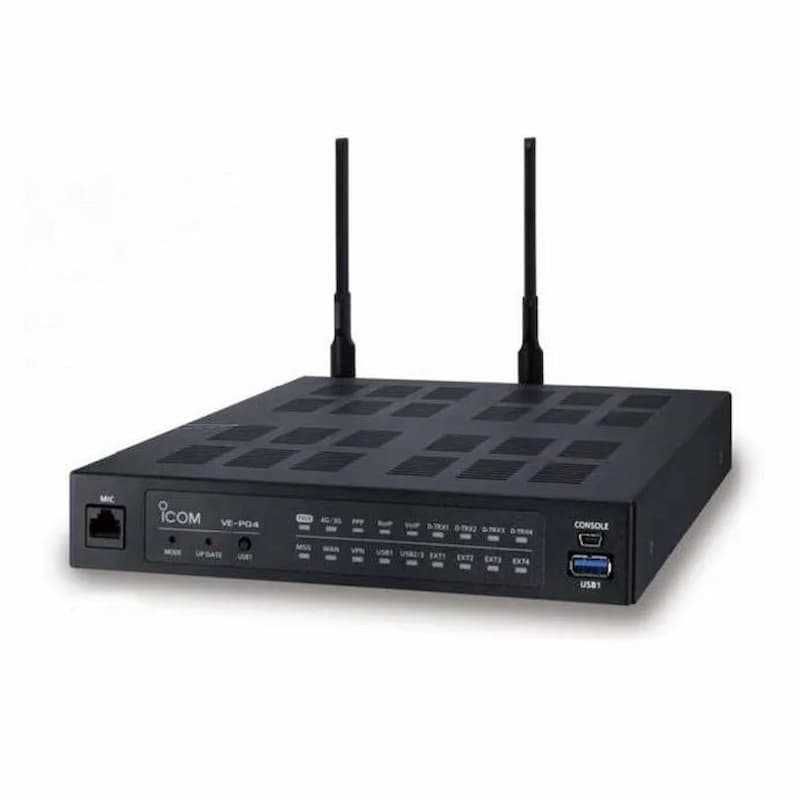

ICOM PTT VE-PG4 RoIP Satellite Gateway Server - Black


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • 1 Year Warranty
  • Brand: ICOM
  • Model: PTT VE-PG4

    Features:
  • Built-in controller for IP100H
  • Call recording to a USB drive
  • Microphone connection for base operation
  • Router functions with VPN tunnel

    Specification:
  • Power Supply: 12V DC +/- 10%, max 4A
  • 100-240V AC (with the supplied AC adaptor)
  • Weight: 4lb (Main unit, approximate)

    Interface:
  • LAN/WAN: RJ-45 type x 1 (Auto MDI/MDI-X)
  • LAN: RJ-45 type x 1 (Auto MDI/MDI-X)
  • USB Host Interface: USB 3.0 Standard A receptacles x3
  • USB Console Interface: USB 2.0 mini B receptacles x 1
  • Network: 4G bands: LET B2, B4, B12 (FCC)
  • Network: 3G bands: W-CDMA B2, B5 (FCC)
  • External: Port Connectors: 2.54 mm (0.1 in) pitch quick connector (4 terminals x3) x4
  • External: Audio input: -10 dBs/-40 dBs selectable Input impedance 10kO unbalance
  • External: Audio output: -0 dBs/-20 dBs selectable 600O load unbalance/8O 1W speaker
  • External: Control input: Low voltage contacts (3.3V DC/1mA)/Voltage input (3-16V)
  • External: Control output: No voltage contacts (30V/100mA) /Open collector (3-16V 10mA)

    Package Contents:
  • Antennas
  • Antenna case cable (1.9ft)
  • AC adapter (BC-236)
  • Quick connectors



Features

Brand:
ICOM
Color:
Black
Conditions:
New
Warranty:
1 Year
