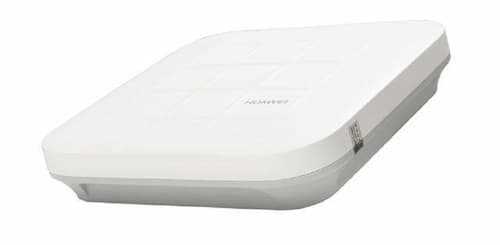

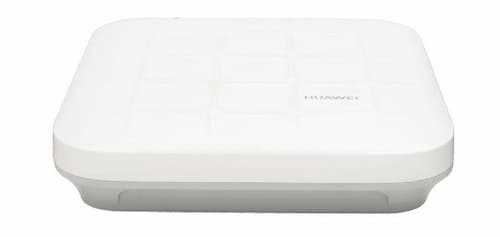

Huawei AP5030DN Dual-Band Wi-Fi 5 Enterprise Access Point

• Office Wireless Networking: Dual-band Wi-Fi 5 supports wireless access for compatible business devices in indoor office environments.
• Enterprise Network Expansion: Two Gigabit Ethernet interfaces provide wired connectivity for integration with compatible network infrastructure.
• Multi-Device Business Environments: Support for up to 256 concurrent clients accommodates multiple connected devices.
• Indoor Wireless Coverage: Built-in omnidirectional antennas support wireless connectivity around the access point's installation area.
• PoE-Based Installations: IEEE 802.3af/at PoE support allows power delivery over compatible Ethernet infrastructure.

• Dual-Band Wi-Fi 5: Supports 2.4 GHz and 5 GHz wireless bands with 802.11ac and earlier listed standards — provides wireless connectivity options for compatible business devices.
• 3x3 MIMO Technology: Uses 3x3 MIMO wireless technology — supports simultaneous wireless data transmission capabilities.
• Combined Data Rate up to 1.75 Gbps: Offers peak rates of up to 450 Mbps on 2.4 GHz and 1,300 Mbps on 5 GHz — supports bandwidth-intensive business networking requirements within the limits of the wireless environment.
• Built-In Omnidirectional Antennas: Includes integrated omnidirectional antennas rated at 4/5 dBi — supports wireless signal distribution around the access point.
• Concurrent Client Support: Supports up to 256 concurrent clients — accommodates multiple connected devices in a business wireless environment.
• Virtual Access Points: Supports up to 16 VAPs per radio — provides options for configuring multiple virtual wireless access points.

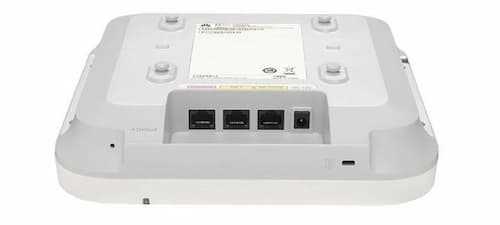

• Dual Gigabit Ethernet Interfaces: Includes two RJ45 Gigabit Ethernet ports — provides wired network connectivity for integration into compatible infrastructure.
• Flexible Power Options: Supports 12V DC or IEEE 802.3af/at Power over Ethernet — offers alternative powering methods for supported installations.

• Product Model: AP5030DN
• Brand: Huawei
• Product Type: Indoor enterprise wireless access point
• Wireless Generation: Wi-Fi 5
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency Bands: 2.4 GHz and 5 GHz
• MIMO Technology: 3x3 MIMO
• Peak Data Rate at 2.4 GHz: Up to 450 Mbps
• Peak Data Rate at 5 GHz: Up to 1,300 Mbps
• Combined Peak Data Rate: Up to 1.75 Gbps
• Antenna Type: Built-in omnidirectional antennas
• Antenna Gain: 4/5 dBi
• Maximum Concurrent Clients: Up to 256
• Virtual Access Points: Up to 16 VAPs per radio
• Ethernet Interfaces: 2 x RJ45 Gigabit Ethernet ports
• Power Supply: 12V DC or IEEE 802.3af/at PoE
• Maximum Power Consumption: 12.95 W
• Dimensions: 220 x 220 x 53 mm
• Weight: Approximately 0.8–1.0 kg
• Ingress Protection Rating: IP41
• Installation Environment: Indoor

WHY CHOOSE THIS PRODUCT?

• Dual-band wireless connectivity supports business devices operating on 2.4 GHz and 5 GHz bands.
• Wi-Fi 5 and 3x3 MIMO provide wireless networking capabilities for compatible enterprise devices.
• Two Gigabit Ethernet ports support wired network integration.
• DC and PoE power options provide flexibility for compatible deployment setups.
• Support for up to 256 concurrent clients offers capacity for multi-device business environments.
