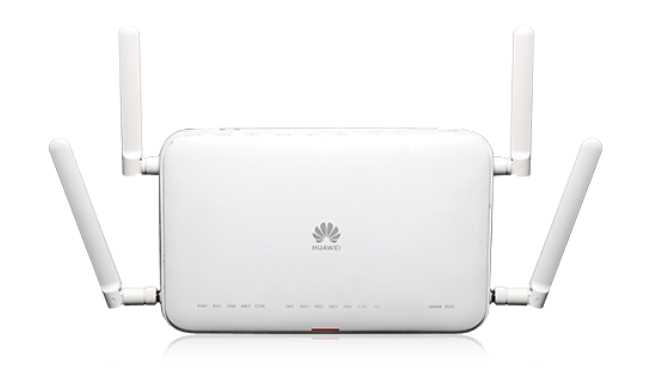

Huawei AR617VW-LTE4EA Enterprise LTE VPN Router WiFi

• Branch office internet connectivity
• Retail stores and point-of-sale networks
• Remote office and small-business networking
• LTE-based primary or backup WAN connectivity
• Temporary offices and project sites
• Banking and financial service branches
• Healthcare clinics and business facilities
• Logistics and transportation locations
• Business networks requiring Wi-Fi and wired LAN access
• Sites requiring analogue telephone or fax connectivity

• Built-in LTE modem for cellular WAN connectivity
• Dual Micro-SIM slots with single-standby operation
• Dual-band Wi-Fi supporting 2.4 GHz and 5 GHz
• 802.11ac wireless with 2×2 MIMO
• One Gigabit Ethernet combo WAN interface
• One VDSL2 WAN interface
• Four Gigabit Ethernet LAN ports
• Two FXS ports for analogue telephone or fax connections
• VPN support for secure enterprise communications
• USB 2.0 host port
• RJ45 console port for device management
• Compact 1U-height design
• Natural heat dissipation

• Brand: Huawei

• Product Family: NetEngine AR Series
• Model: AR617VW-LTE4EA
• Part Number: 50010483-001
• Product Type: Enterprise Access Router
• WAN Interfaces: 1 × GE combo WAN, 1 × VDSL2 WAN
• LAN Interfaces: 4 × Gigabit Ethernet LAN, supporting 10/100/1000 Mbps
• Cellular Connectivity: Built-in LTE modem
• SIM Slots: 2 × Micro-SIM, single-standby operation
• Wireless Standards: IEEE 802.11ac
• Wi-Fi Bands: 2.4 GHz and 5 GHz
• Wireless Technology: 2×2 MIMO
• Maximum Wi-Fi Speed: Up to 866 Mbps
• Voice Interfaces: 2 × FXS
• USB Interface: 1 × USB 2.0 host
• Console Interface: 1 × RJ45 console
• Processor: Dual-core 1.1 GHz
• Memory: 1 GB RAM
• Flash Storage: 1 GB NAND flash
• Form Factor: Compact 1U-height chassis
• Ingress Protection: IP20
• Cooling: Natural heat dissipation
• Typical Power Consumption: 13.6 W
• Maximum Power Consumption: 17 W
• Power Supply: External AC adapter, 90–270 V input
• Weight: Approximately 0.69 kg
• Deployment: Branch offices, remote offices and enterprise edge networks

WHY CHOOSE THIS PRODUCT?

• The Huawei AR617VW-LTE4EA combines LTE connectivity, dual-band Wi-Fi, Gigabit Ethernet and VPN functionality in one compact router. It gives IT teams flexibility when connecting branch offices, retail locations and remote business sites, particularly where wired broadband is unavailable or a cellular backup connection is required.

• Its multiple WAN options and integrated wireless capability can simplify network deployment by reducing the need for separate connectivity devices. The additional LAN and FXS interfaces also support business environments that require wired devices and analogue telephony.
