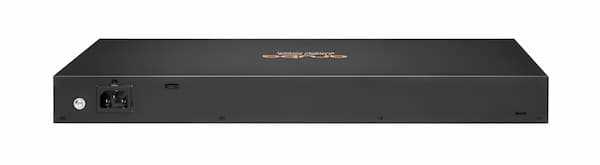

HPE Aruba CX 6100 JL675A 48G PoE Managed Switch 4x SFP+

• Enterprise campus access networking
• Wireless access point connectivity
• IP phone deployment
• IP surveillance networks
• Branch office connectivity
• IoT endpoint networking
• Network modernization projects
• High-speed fiber uplinks
• Departmental access switching
• PoE-powered device networks

• 48 × 10/100/1000BASE-T ports
• 4 × 1G/10G SFP uplink ports
• 370W Class 4 PoE/PoE+ budget
• IEEE 802.3af and 802.3at support
• 176 Gbps switching capacity
• 98.6 Mpps throughput
• Layer 3 managed switching
• AOS-CX operating system
• Aruba Central management support
• Web GUI and CLI management
• VSF stacking support
• USB-C console connectivity
• USB Type-A host port
• Fixed power supply

• Brand: HPE
• Series: CX 6100
• Part Number: JL675A
• Product Type: Managed Ethernet Switch
• Port Configuration: 48 x 10/100/1000BASE-T
• Uplink Ports: 4 x 1G/10G SFP
• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Budget: 370W
• Switching Capacity: 176 Gbps
• Throughput: 98.6 Mpps
• Processor: Dual Core ARM Cortex A9 @ 1016 MHz
• Memory: 4 GB DDR3
• Flash: 16 GB eMMC
• Console Port: 1 x USB-C
• Host Port: 1 x USB Type-A
• Power Supply: Fixed
• Input Voltage: 100–127 VAC / 200–240 VAC
• Maximum Power Without PoE: 45W
• Maximum Power With PoE: 480W
• Dimensions: 4.4 x 44.2 x 30.5 cm
• Weight: 5.0 kg
• Operating Temperature: 0°C to 45°C

WHY CHOOSE THIS PRODUCT?

• JL675A is a strong fit when buyers need high-density Gigabit access, integrated PoE+ and 1G/10G uplink flexibility in one switch. Its 48-port configuration suits larger endpoint deployments, while 370W PoE provides practical capacity for wireless access points, phones, cameras and IoT devices. Compared with the non-PoE JL676A, it eliminates the need for separate endpoint power; compared with the 740W R9Y04A, it targets installations where 370W is sufficient, helping avoid paying for unused PoE capacity. Aruba Central, CLI and Web GUI management support different operational models, while VSF stacking supports multi-switch growth.
