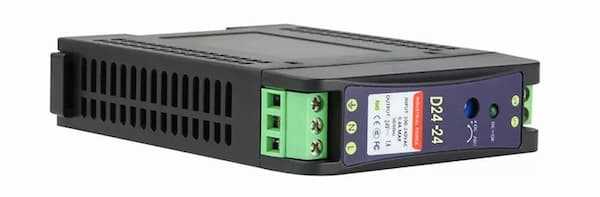

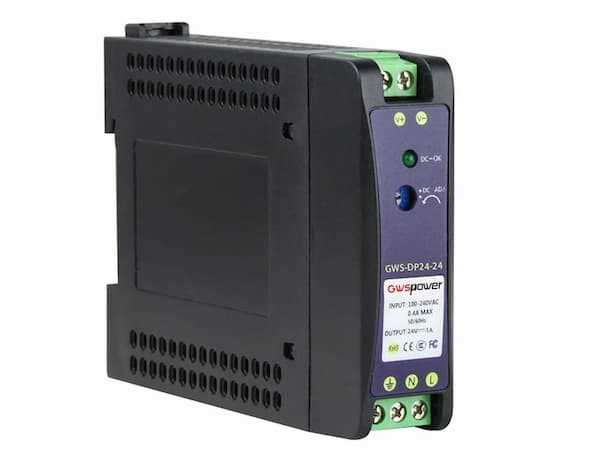

GWS-DP24-24 24W/24V Industrial DIN Rail Power Supply


Brand:
GWS

Specifications

   Product details:
  • Warranty: 3 Years Warranty
  • Brand: GWS
  • Model: GWS-DP24-24
   Application:
  • Industrial Control System
  • Semiconductor fabrication equipment
  • Factory automation
  • Electro-mechanical apparatus
   Specification:
  • Power Input: AC 90~264V
  • Support production for short circuit/overcurrent/over voltage
  • Wide operation temperaturerange:-30~70
  • 100% full load aging test
  • High efficiency, long life timeandhighreliability
  • Meet EMC Standard
   Output:
  • Group of Output: 1
  • DC Voltage: 24V DC
  • Default Output Voltage: 24.00-24.2V (VIN: 220VAC / LOAD: 0A)Output Rated Current 1A
  • Output Current Range: 0-1A
  • Output Rated Power: 24W
  • Total Peak Output Power: Up to 36W(Sustainable time 10S/220VAC)
  • Peak Output Current: 1.5A( Sustainable time 10S/220VAC)
  • Ripple noise: Peak - Peak =100mV (Test Method: The terminal shall bein parallel with capacitance of 0.1uF and 47uF, testing 20MHz)
  • Output Regulation Range: 22.5.V~28.0V
  • Stabilized Voltage Precision: ±1% (@ 90-264Vac input, 100% load)
  • Line Regulation: ±0.5% (@ 90-264Vac input, 100%load)
  • Load Regulation ±1% (@ 90-264Vac input, 100% load)
  • Temperature Coefficient: ±0.03%/
  • Output Start Time: < 3S @ 115Vac, < 1.6S @ 230Vac (100% load)
  • Output Hold Time: > 20ms @ 115Vac (100% load)
  • Voltage Overshoot: =5%
   Input:
  • Input Voltage Range: 90~264VAC
  • Input Rated Voltage Range: 100~240VAC
  • Frequency Range: 47Hz~63Hz
  • Rated Frequency: 50/60Hz
  • Starting Voltage: 90V AC
  • Efficiency: > 85.0% @ 115Vac, > 84.0% @230Vac
  • Input Current: < 0.60A @ 115Vac, < 0.30A @230Vac
  • Inrush Starting Current: < 60A @ 230Vac
  • Power Factor: >0.6 (at full load)


Features

Brand:
GWS
Conditions:
New
Warranty:
3 Years
