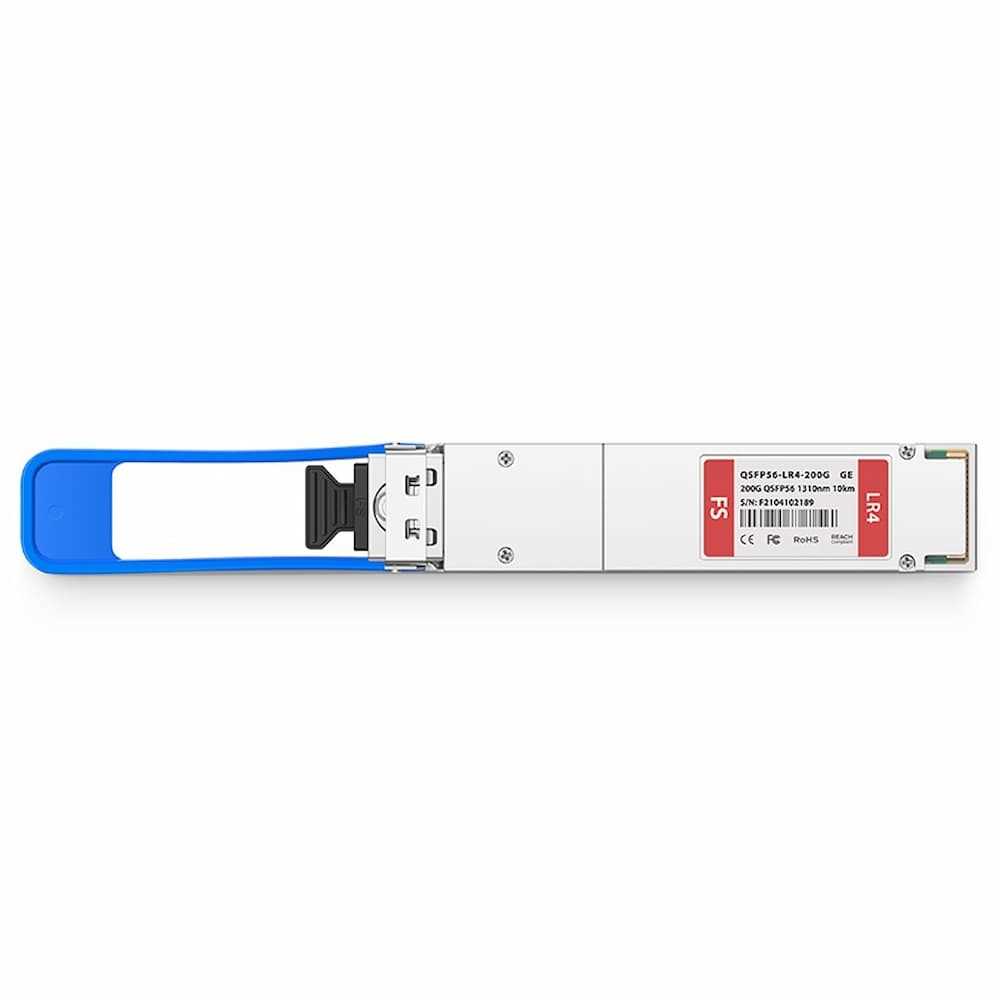

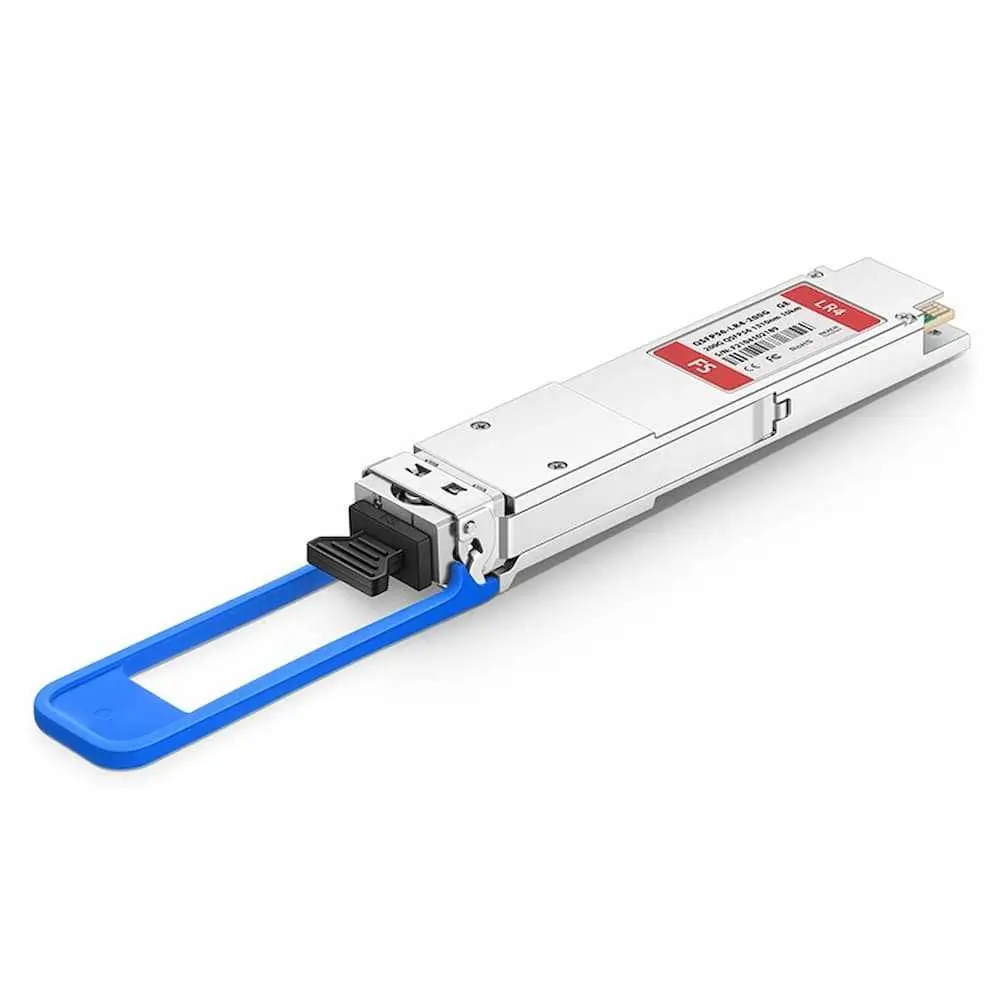

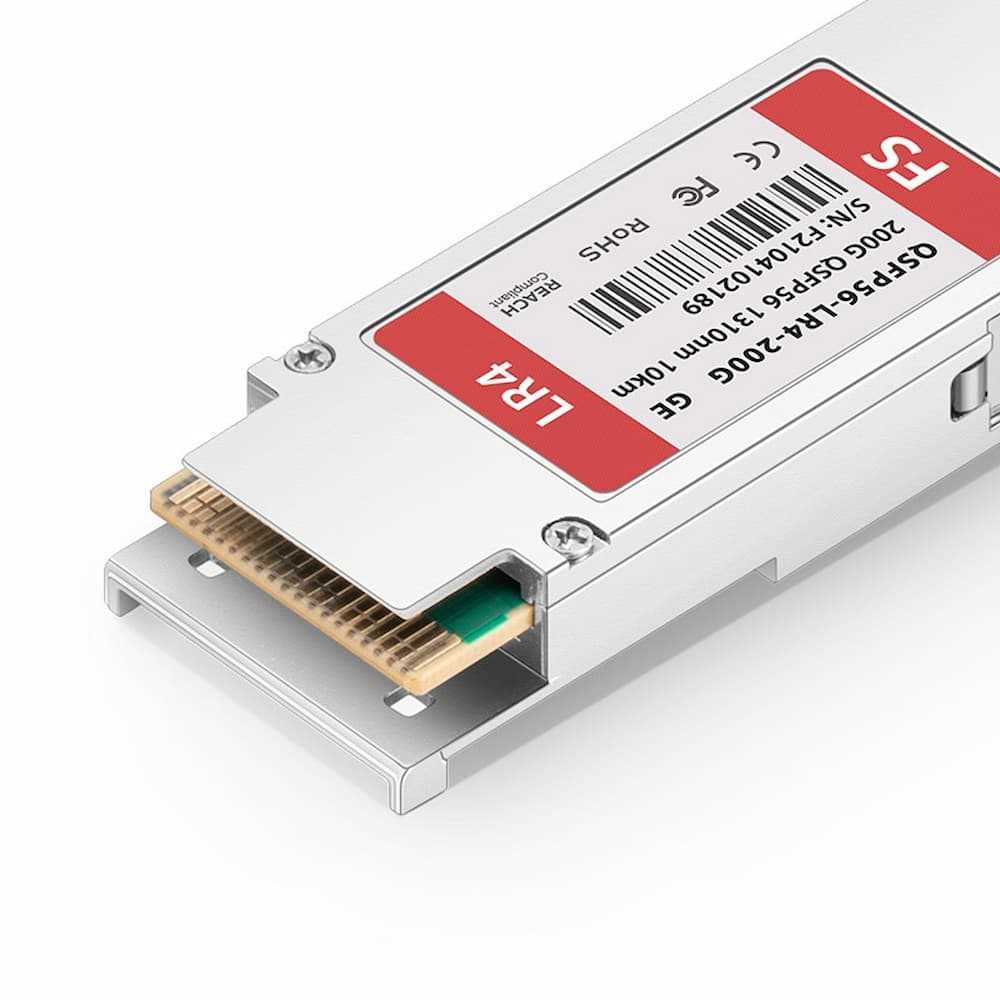

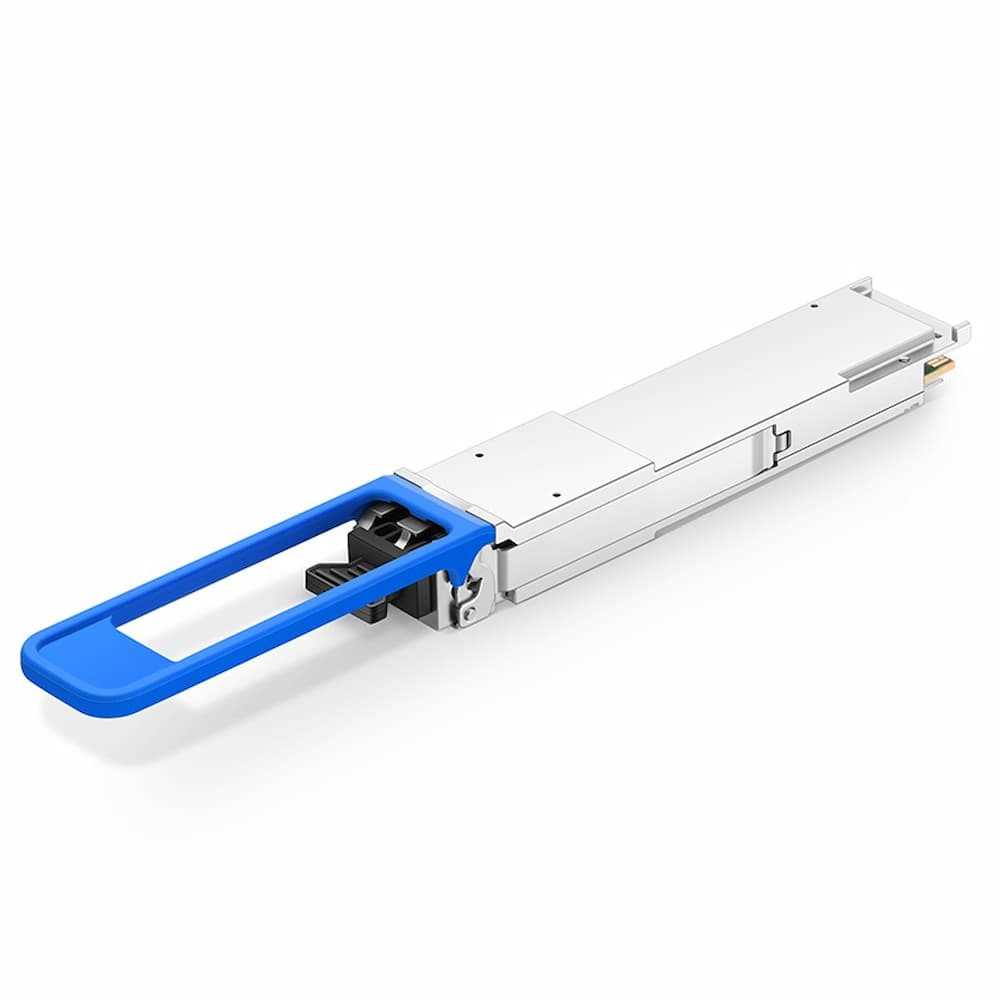

Generic QSFP56-LR4-200G Compatible 200GBASE-LR4 QSFP56 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module (Silver)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 5 Years Warranty
  • Brand: Generic
  • P/N: QSFP56-LR4-200G
  • Color: Silver
        Specification:
  • Wavelength: 1310nm
  • Max Cable Distance: 10km

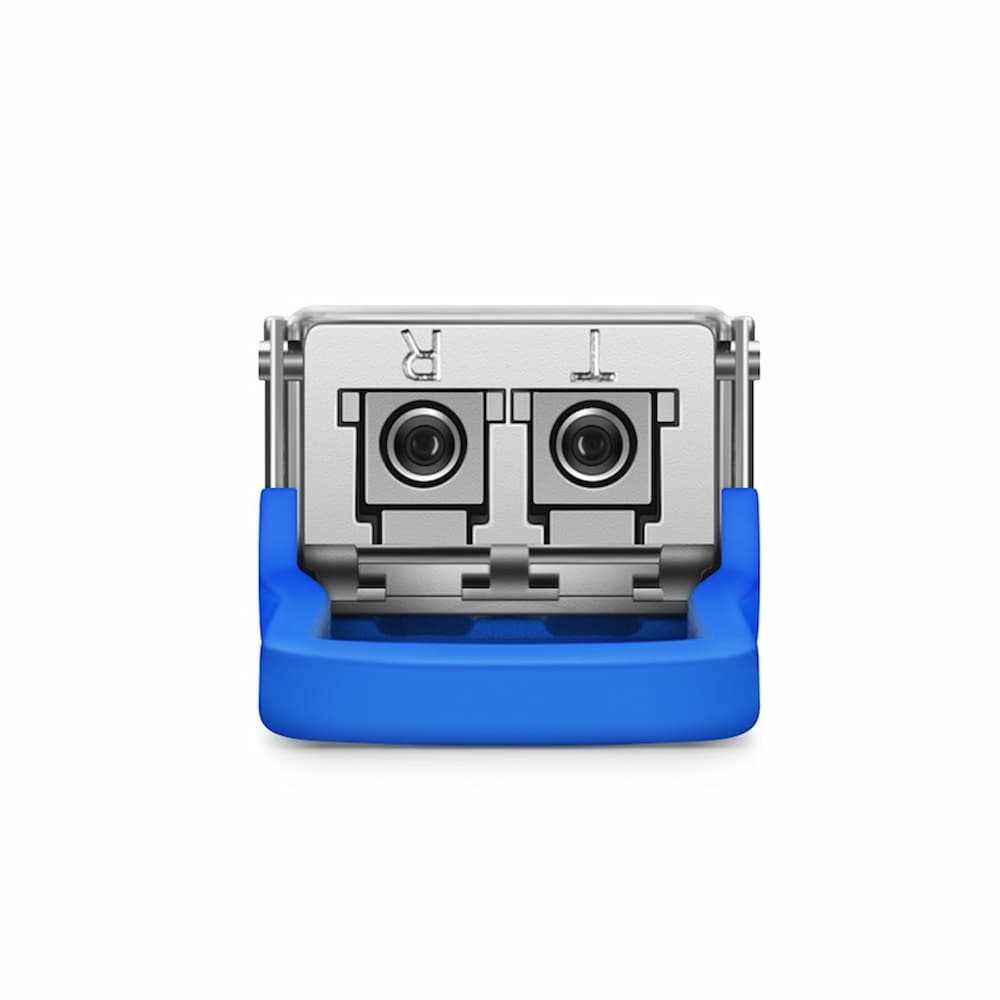

  • Connector: Duplex LC
  • Media: SMF
  • Transmitter Type: DFB
  • Receiver Type: PIN
  • TX Power: -3.4~5.3dBm
  • Receiver Sensitivity: <-9.7dBm
  • Powerbudget: 6.3dBm
  • Receiver Overload: 5.1dBm
  • Power Consumption: =8W
  • Extinction Ratio: >3.5dB
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • Modulation Format: PAM4
  • Protocols: IEEE 802.3bs, QSFP56 MSA, SFF-8661, SFF-8636
       Features:
  • Built-in Inphi Chip, Max. Power Consumption 8W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable QSFP56 Form Factor
  • High-speed Electrical Compliant to IEEE 802.3bs
  • Compliant with QSFP56 MSA CMIS V4.0



Features

Brand:
Generic
Color:
Silver
Conditions:
New
Warranty:
5 Years
