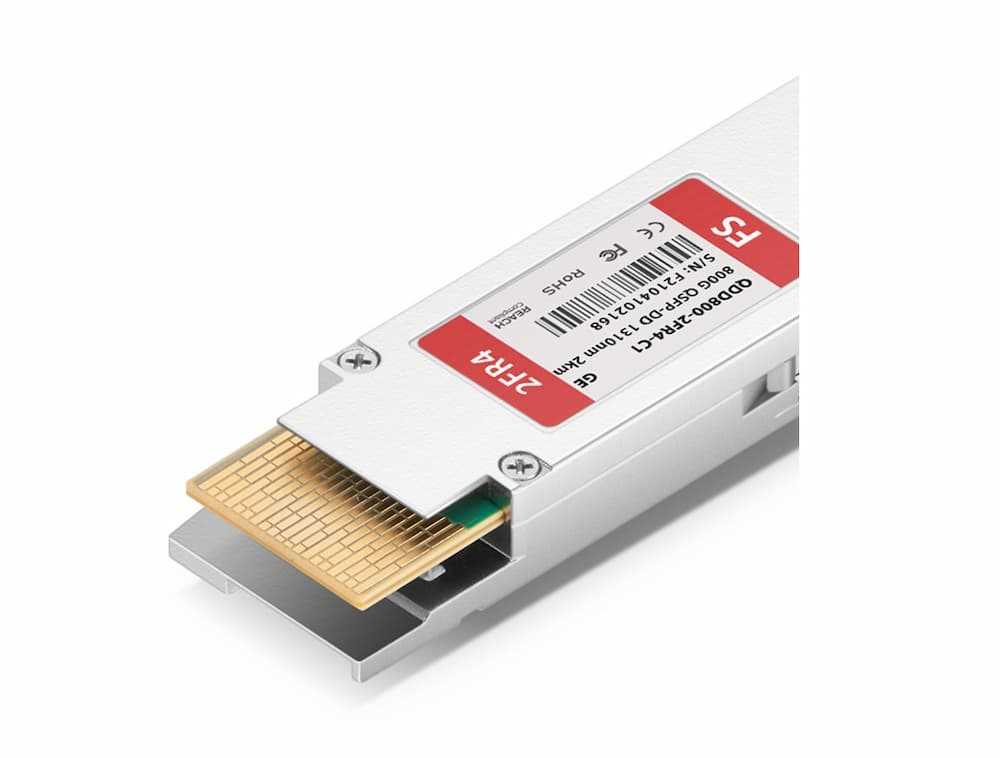

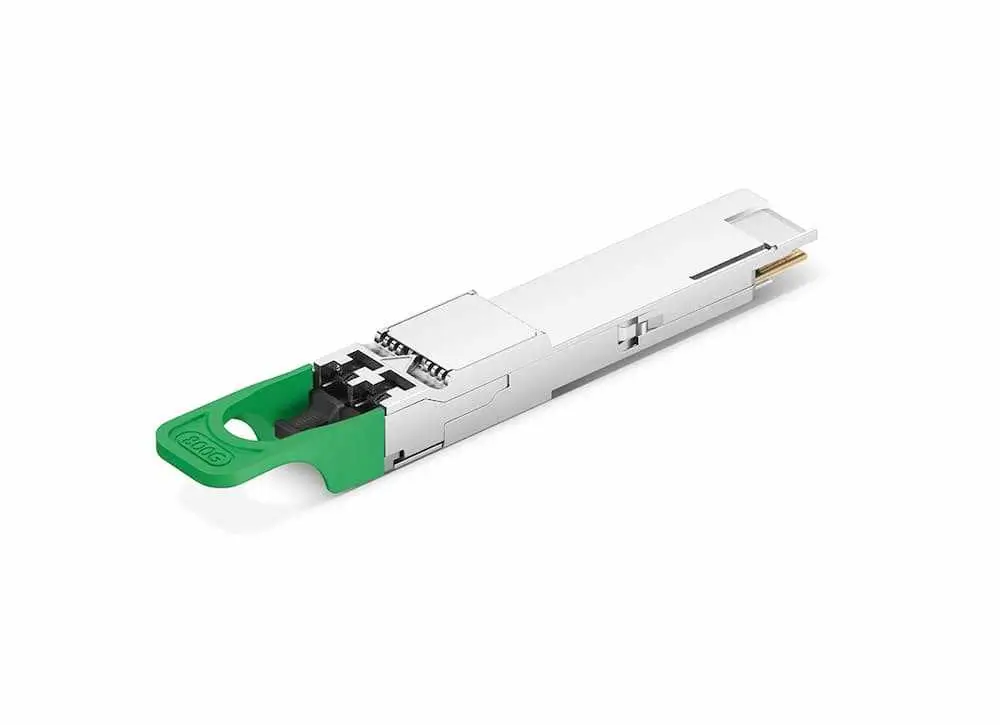

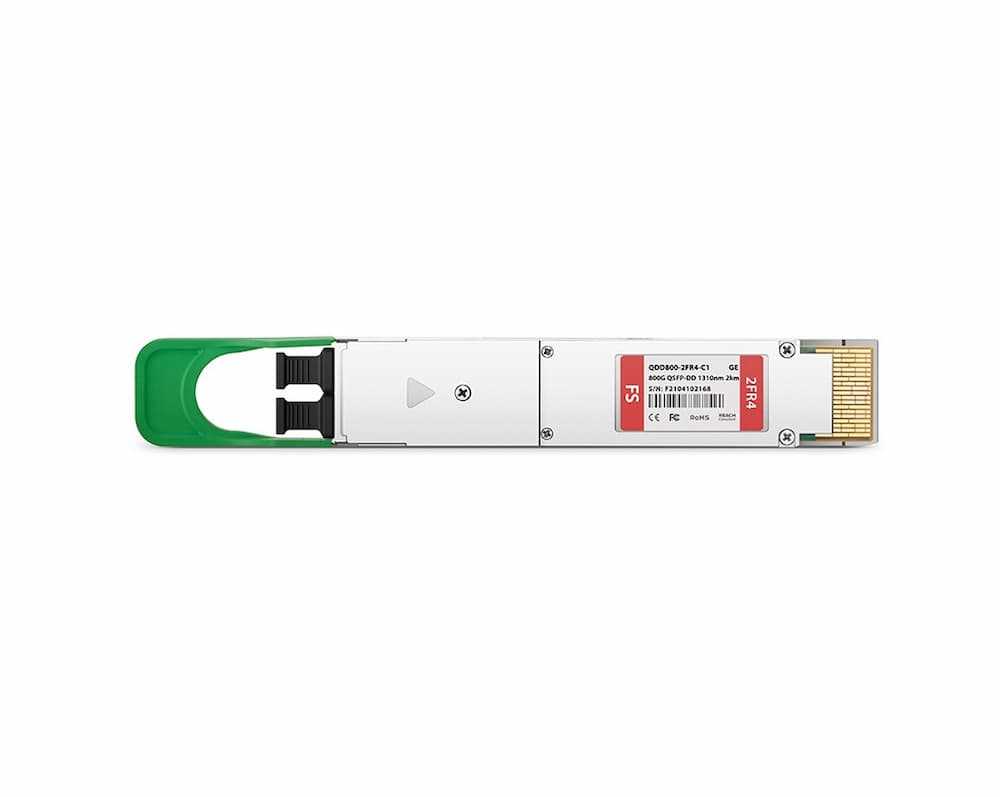

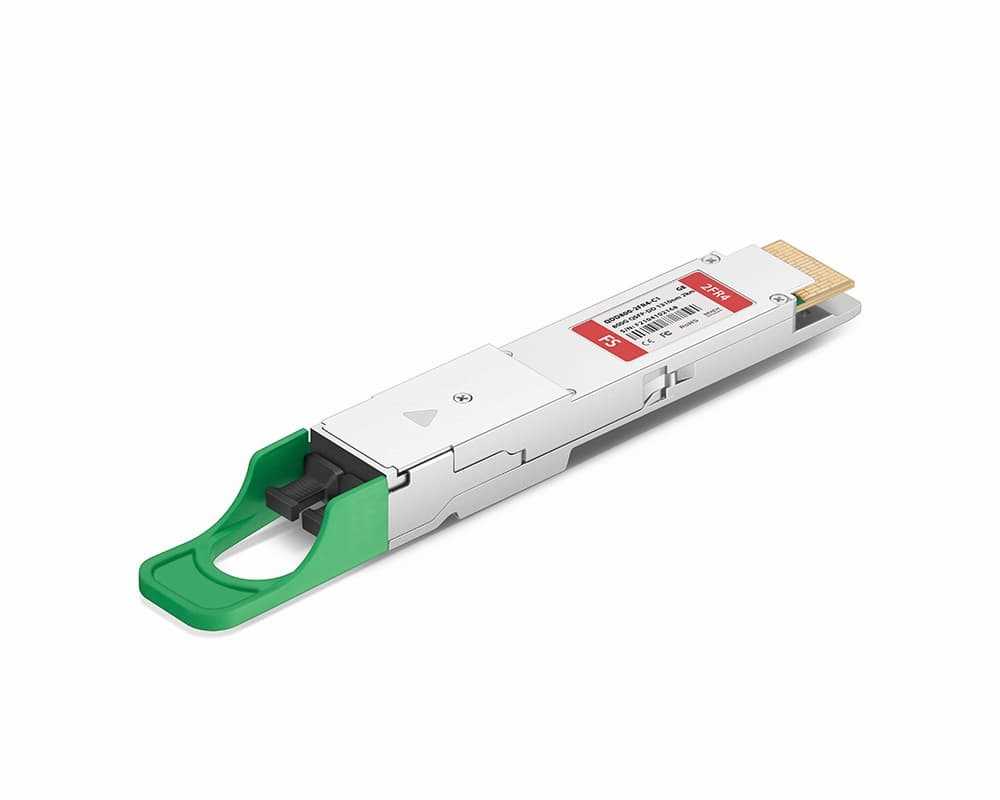

Generic QDD800-2FR4-C1 Compatible QSFP-DD PAM4 1310nm 2km DOM Dual CS SMF Optical Transceiver Module (White)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange
  • 2 Years Warranty
  • Brand: Generic
  • P/N: QDD800-2FR4-C1
      Specification:
  • Vendor Name: FS
  • Form Factor: QSFP-DD
  • Max Data Rate: 850Gbps (8x 106.25Gbps)
  • Wavelength: 1271nm, 1291nm, 1311nm and 1331nm
  • Max Cable Distance: 2km
  • Connector: Dual CS
  • Cable Type: SMF
  • Transmitter Type: EML
  • Receiver Type: PIN
  • TX Power: -3.2~4.4dBm
  • Minimum Receiver Power: -7.7dBm
  • Power budget: 4dB
  • Receiver Overload: 5.4dBm
  • Power Consumption: =18W
  • Extinction Ratio: >3.5dB
  • Packaging Technology: COB (Chip on Board) Packaging
  • Modulation Format: PAM4
  • CDR (Clock and Data Recovery): TX & RX Built-in DSP
  • Protocols: IEE802.3ck, IEEE 802.3cu, QSFP-DD MSA
      Details:
  • Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 18W
  • Self-developed 53G EML Laser Chip to Ensure Production
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
  • Hot Pluggable QSFP-DD MSA Compliant
  • Support 2x400G Breakout for Higher Port Density
  • 8x106.25G PAM4 Retimed 2x400GAUI-4 Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Features

Brand:
Generic
Color:
White
Conditions:
New
Warranty:
2 Years
