Home Optics and Transceivers 100/200/400/800G Modules Generic Q112-FR4-400G Compatible 400GBASE-FR4 PAM4 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module (White)

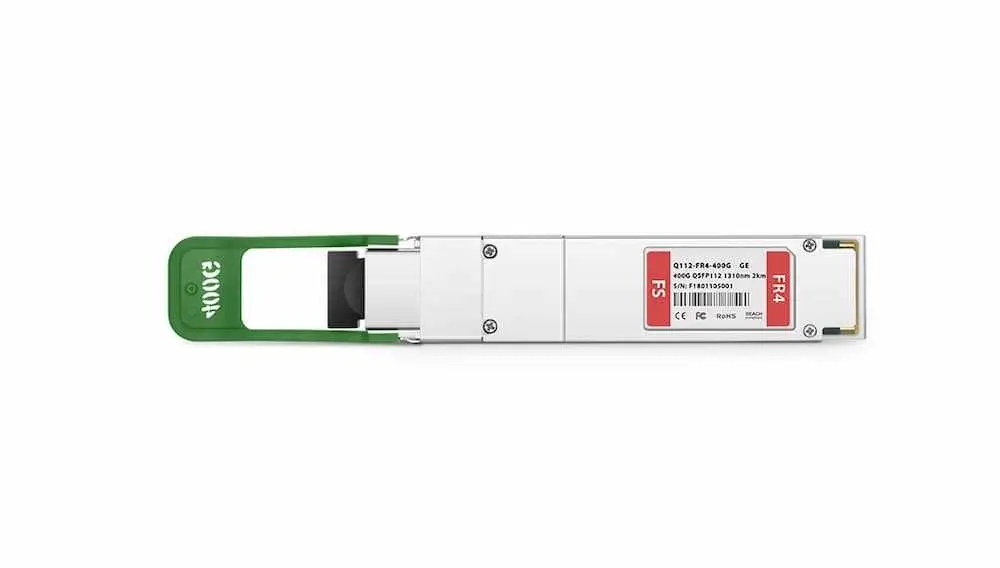

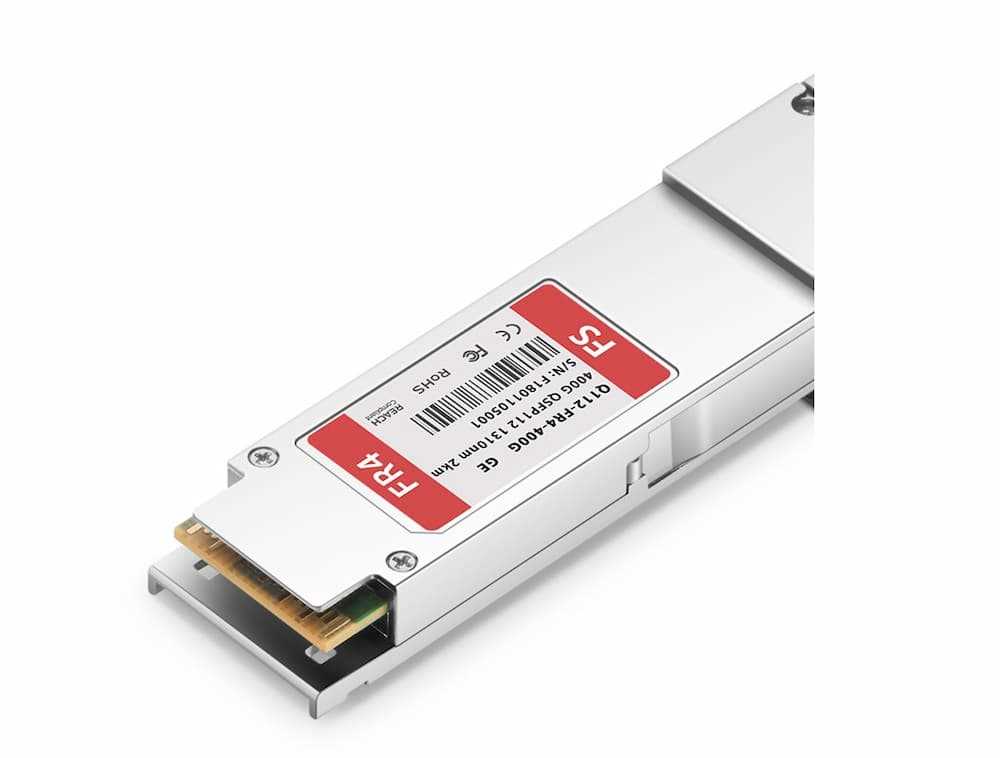

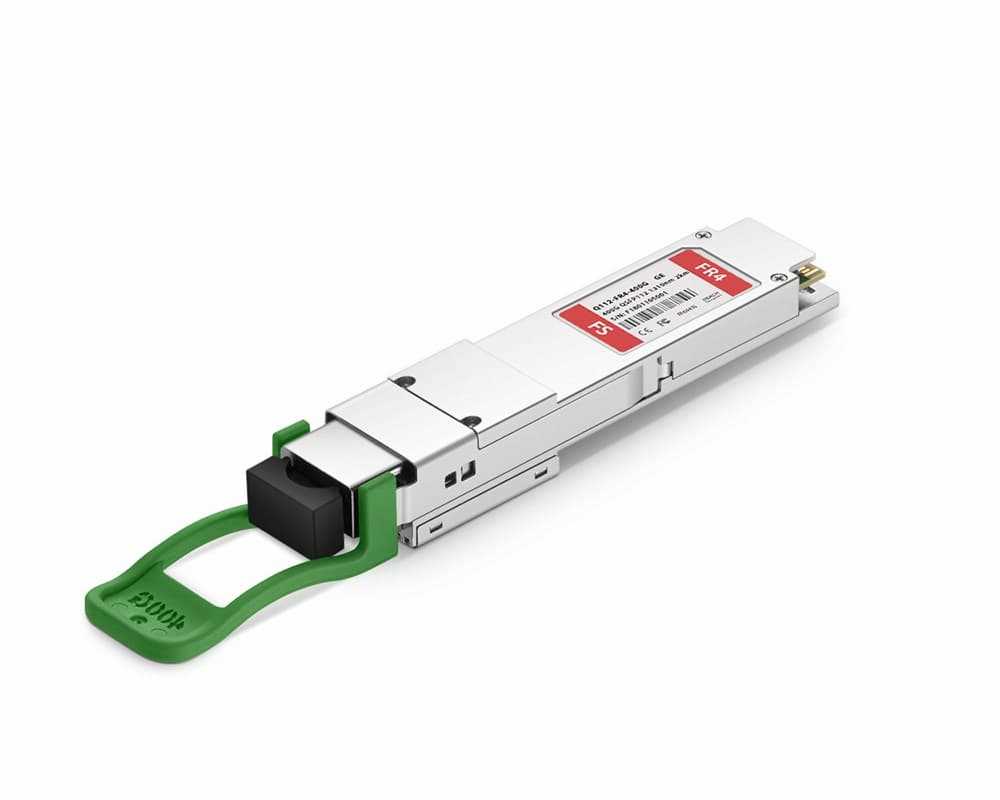

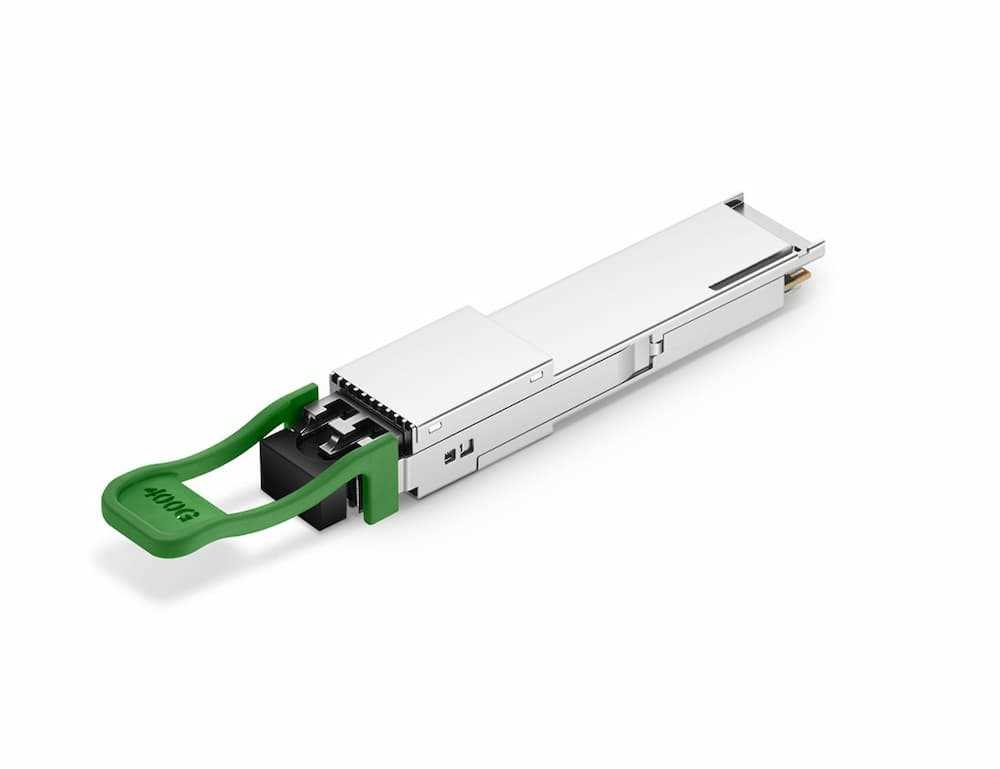

Generic Q112-FR4-400G Compatible 400GBASE-FR4 PAM4 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module (White)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange
  • 2 Years Warranty
  • Brand: Generic
  • P/N: Q112-FR4-400G
      Specification:
  • Vendor Name: FS
  • Form Factor: QSFP112
  • Max Data Rate: 425Gbps (4x 106.25Gbps)
  • Wavelength: 1310nm
  • Max Cable Distance: 2km

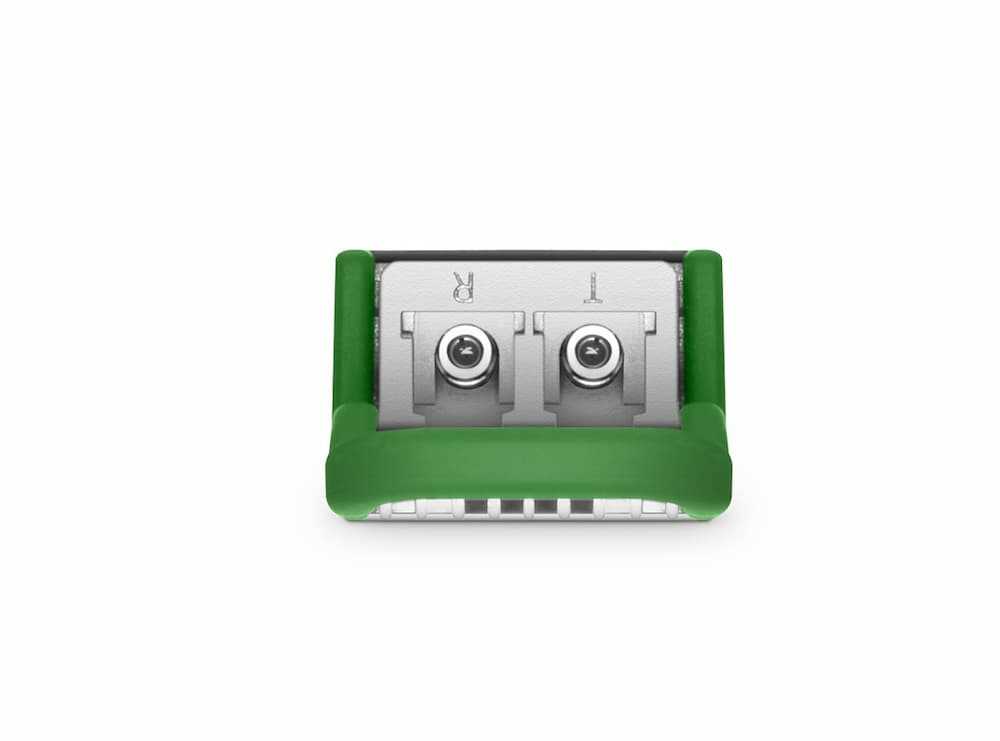

  • Connector: Duplex LC
  • Media: SMF
  • Transmitter Type: EML
  • Receiver Type: PD
  • TX Power: -3.3~3.5dBm
  • Receiver Sensitivity: <-7.3dBm
  • Power budget: 4dB
  • Receiver Overload: 3.5dBm
  • Power Consumption: <8W
  • Extinction Ratio: >3.5dB
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • Protocols: IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4, CMIS Rev 4.0, QSFP-112 MSA
      Details:
  • Built-in Inphi 6nm DSP Chip, Max. Power Consumption 8W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Compliant with QSFP-112 MSA CMIS Rev 4.0, OIF-CEI-112G-VSR-PAM4
  • Hot-pluggable QSFP112 Form Factor
  • High-speed Electrical Compliant to IEEE 802.3cu
  • 4x106.25G PAM4 Retimed 400GAUI-4 Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Class 1 Laser Safety

Features

Brand:
Generic
Color:
White
Conditions:
New
Warranty:
2 Years
