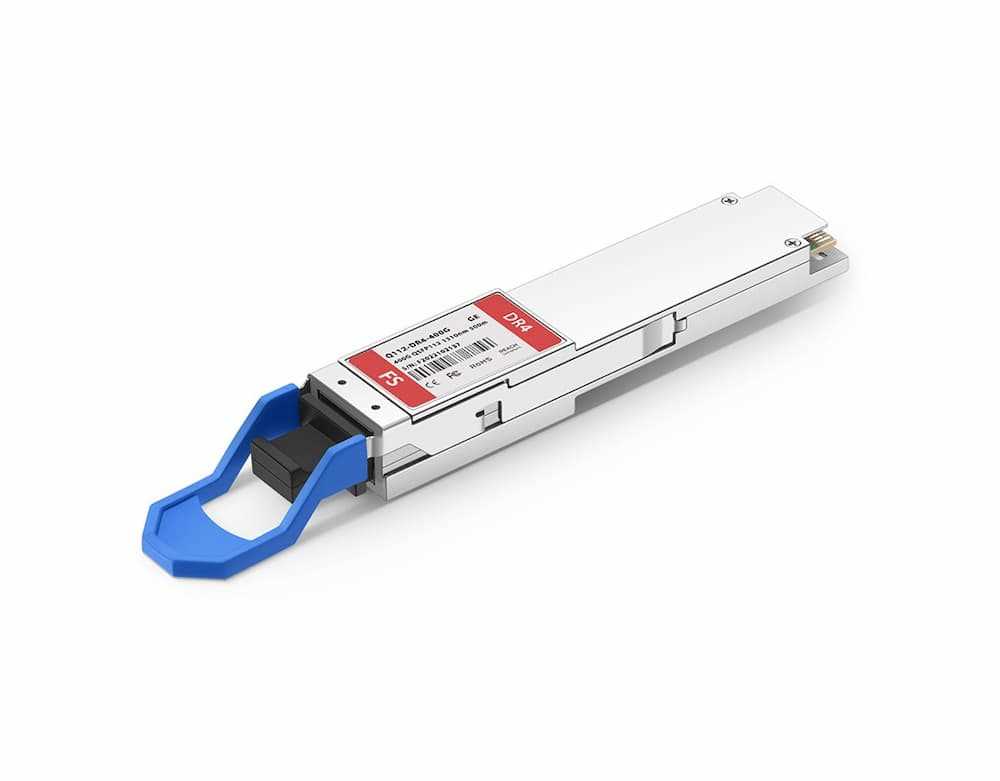

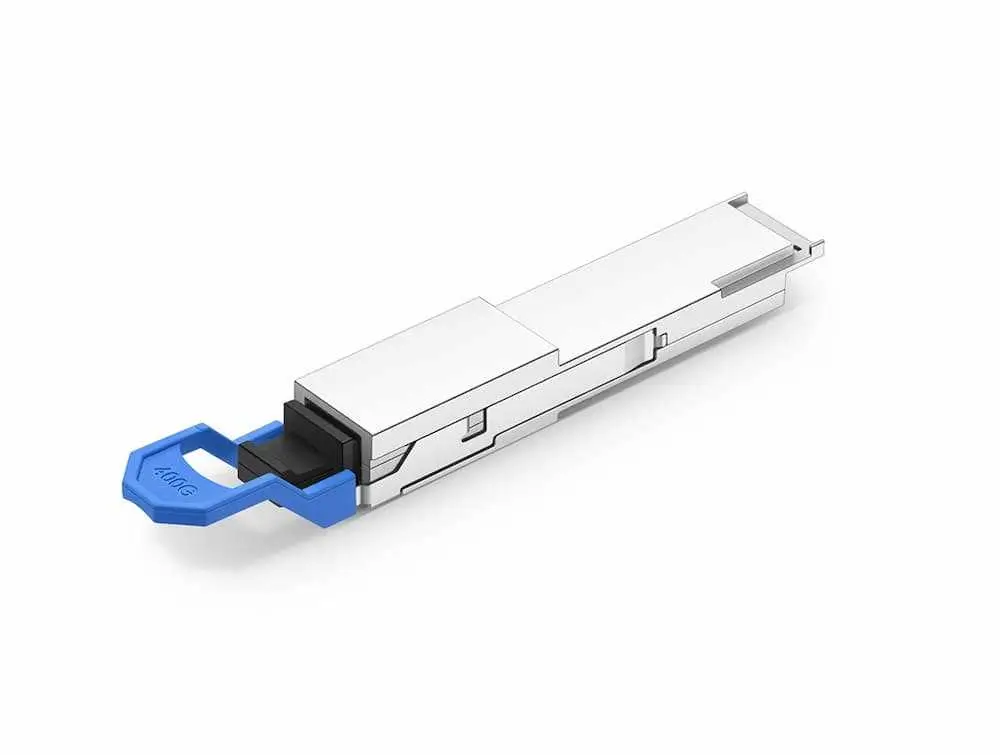

Generic Q112-DR4-400G Compatible 400GBASE-DR4 PAM4 1310nm 500m DOM MTP/MPO-12 SMF Optical Transceiver Module (White)


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange
  • 2 Years Warranty
  • Brand: Generic
  • P/N: Q112-DR4-400G
      Specification:
  • Vendor Name: FS
  • Form Factor: QSFP112
  • Max Data Rate: 425Gbps (4x106.25Gb/s)
  • Wavelength: 1310nm
  • Max Cable Distance: 500m

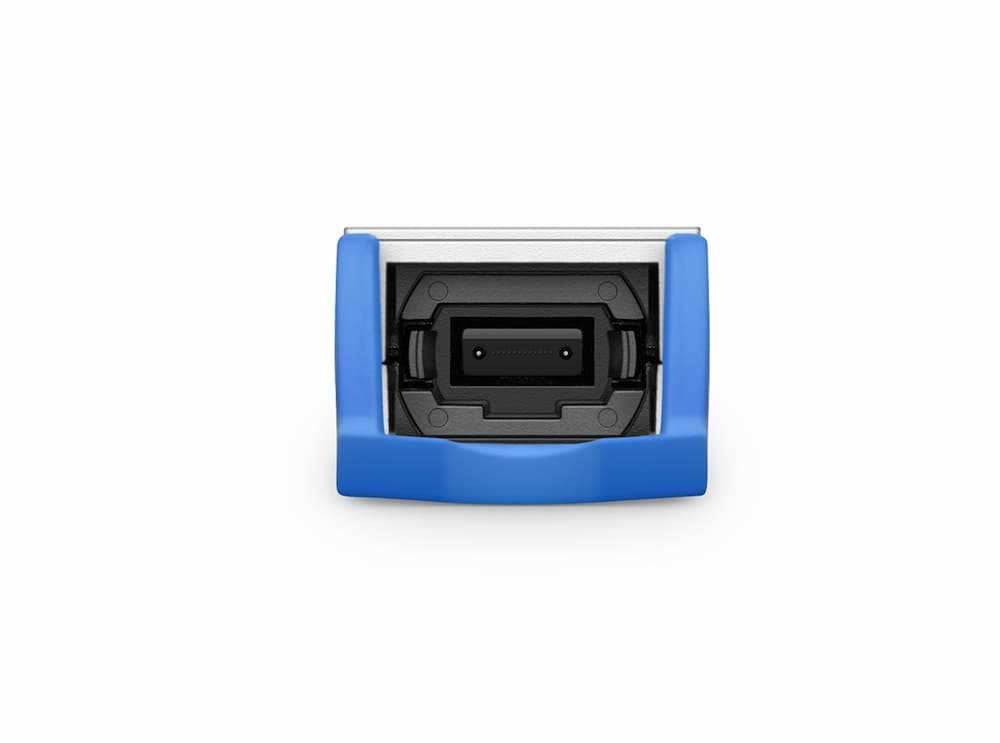

  • Connector: MTP/MPO-12 (APC)
  • Media: SMF
  • Transmitter Type: EML
  • Receiver Type: PIN
  • TX Power: -2.9~4.0dBm
  • Receiver Sensitivity: <-5.9dBm
  • Power budget: 3dB
  • Receiver Overload: 4dBm
  • Power Consumption: =10W
  • Extinction Ratio: >3.5dB
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • CDR (Clock and Data Recovery): TX and RX
  • Protocols: IEEE Std 802.3ck, IEEE 802.3bs, QSFP112 MSA, CMIS 5.0
      Details:
  • Built-in Macom Chip, Max. power consumption 10W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Compliant with QSFP112 MSA CMIS Rev5.0
  • Hot-pluggable QSFP112 Form Factor
  • High-speed Electrical Compliant to IEEE 802.3ck
  • 4x106.25G PAM4 Retimed 400GAUI-4 Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Class 1 Laser Safety


Features

Brand:
Generic
Color:
White
Conditions:
New
Warranty:
2 Years
