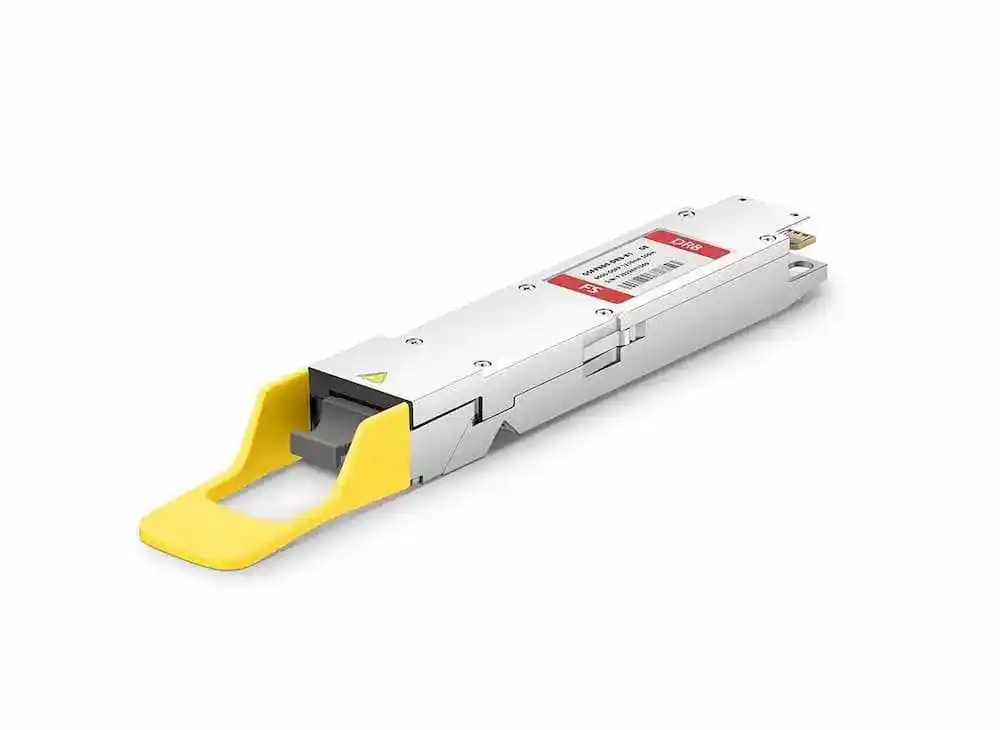

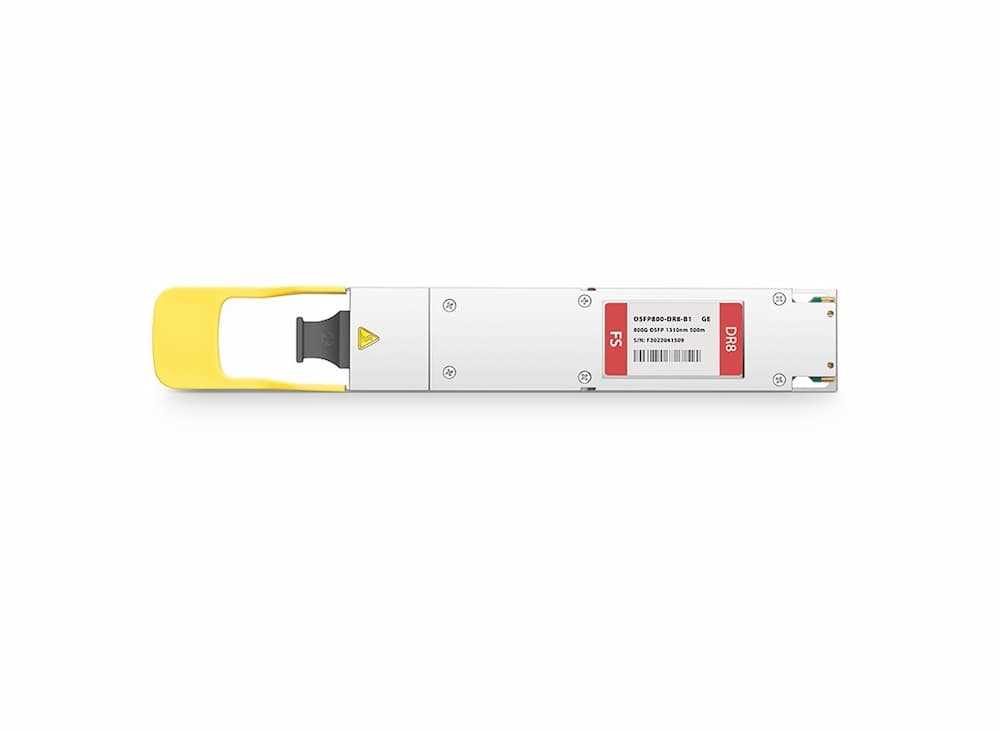

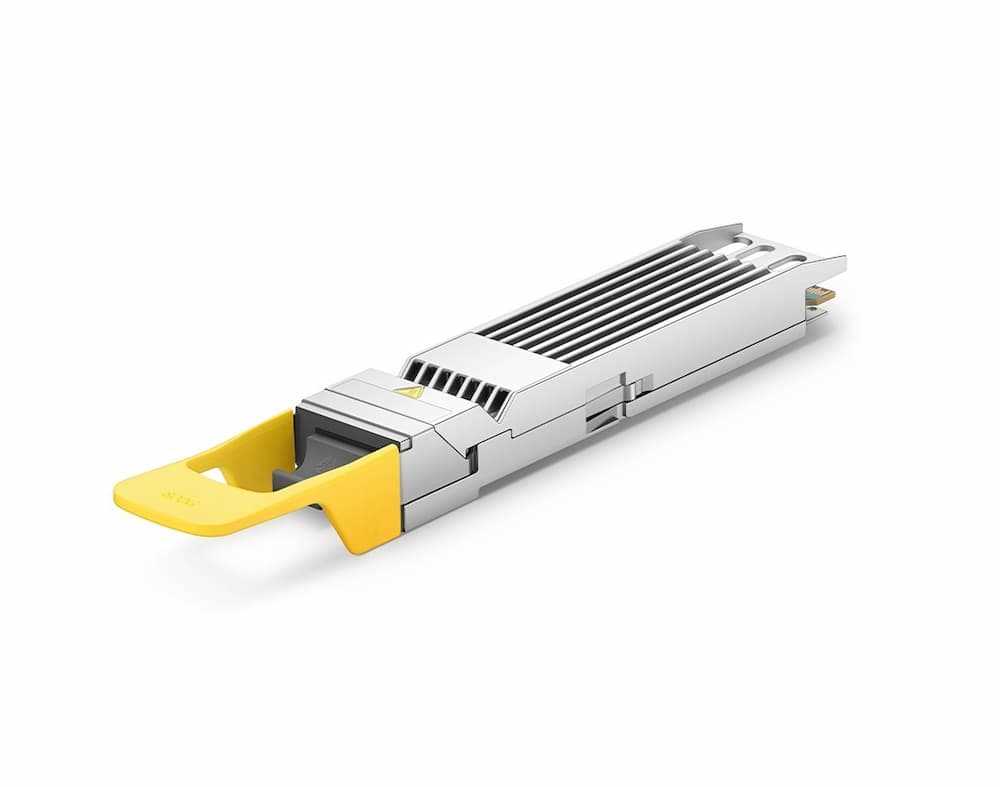

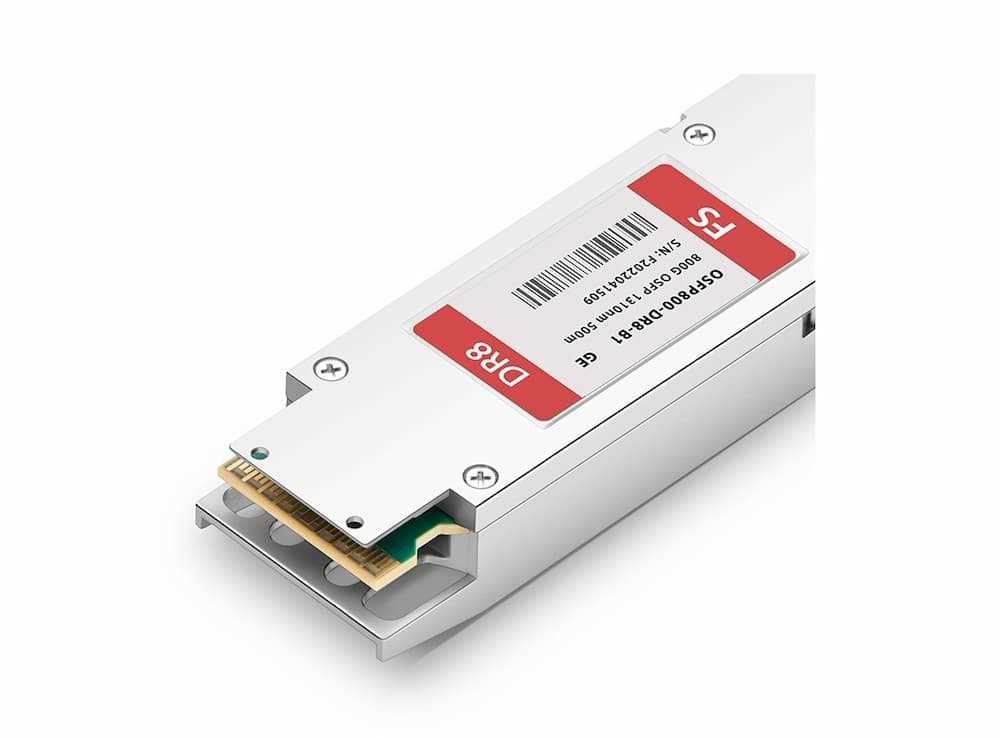

Generic OSFP800-DR8-B1 Compatible OSFP PAM4 1310nm 500m DOM MTP/MPO-16 SMF Optical Transceiver Module (White)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange
  • 1 Year Warranty
  • Brand: Generic
  • P/N: OSFP800-DR8-B1
      Specification:
  • Vendor Name: FS
  • Form Factor: OSFP
  • Max Data Rate: 850Gbps (8x 106.25Gbps)
  • Wavelength: 1310nm
  • Max Cable Distance: 500m
  • Connector: MTP/MPO-16
  • Media: SMF
  • Transmitter Type: EML
  • Receiver Type: SiFotonics PD array
  • TX Power: -2.9~4.0dBm
  • Minimum Receiver Power: -5.9dBm
  • Power budget: 3dB
  • Receiver Overload: 4dBm
  • Power Consumption: =16.5W
  • Extinction Ratio: >3.5dB
  • Packaging Technology: COB (Chip on Board) Packaging
  • Modulation Format: PAM4
  • CDR (Clock and Data Recovery): TX and RX Built-in DSP
  • Protocols: CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
      Details:
  • Connect New 800G Sites to Legacy 400G Sites via 2x400G Breakout
  • Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
  • Self-developed 53G EML Laser Chip to Ensure Production
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • High-speed Connectivity Compliant to IEEE P802.3ck and IEEE 802.3cu
  • Hot Pluggable OSFP MSA Compliant
  • Support 2x400G or 8x 100G Breakout for Higher Port Density
  • 8x106.25G PAM4 Retimed 8x100GAUI-1 C2M Electrical Interface

Features

Brand:
Generic
Color:
Black
Conditions:
New
Warranty:
1 Year
