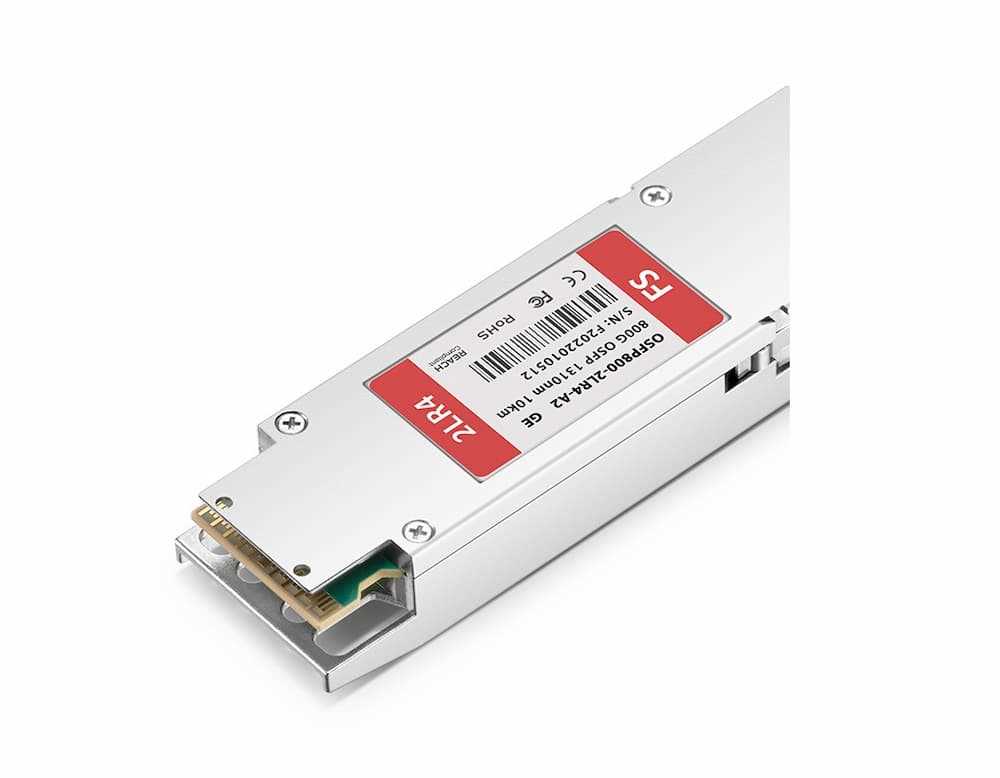

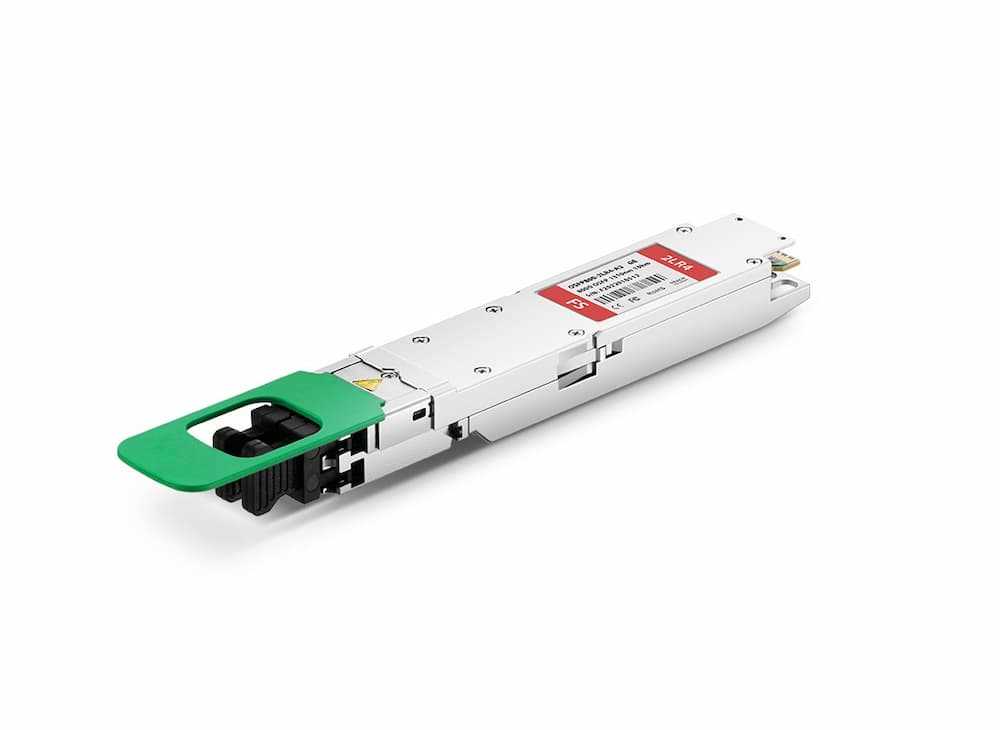

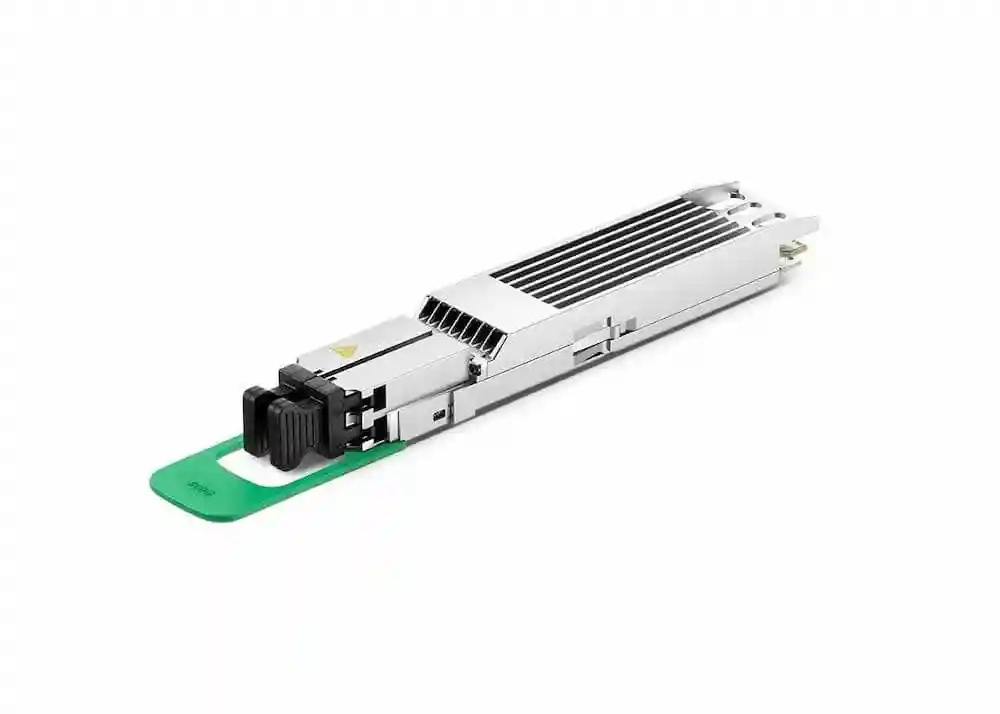

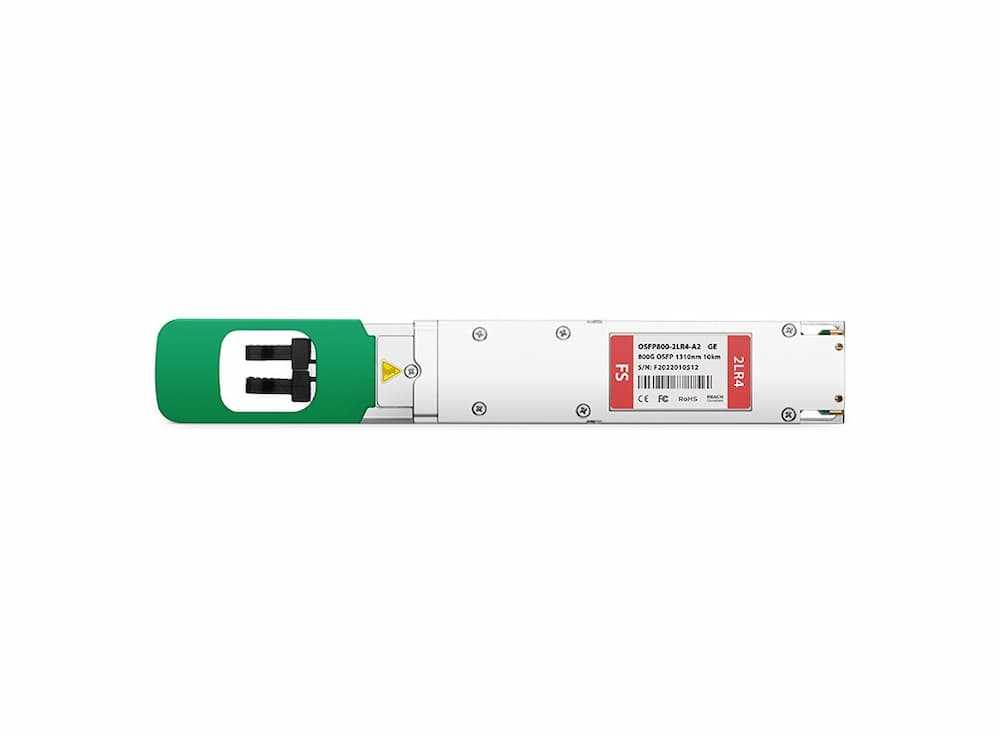

Generic OSFP800-2LR4-A2 Compatible OSFP PAM4 1310nm 10km DOM Dual LC Duplex SMF Optical Transceiver Module (White)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange
  • 1 Year Warranty
  • Brand: Generic
  • P/N: OSFP800-2LR4-A2
       Specification:
  • Vendor Name: FS
  • Form Factor: OSFP
  • Max Data Rate: 850Gbps (8x 106.25Gbps)
  • Wavelength: 1271nm, 1291nm, 1311nm and 1331nm
  • Max Cable Distance: 10km
  • Connector: Dual LC Duplex
  • Media: SMF
  • Transmitter Type: EML
  • Receiver Type: Siphotonics PIN PD
  • TX Power: -2.7~5.1dBm
  • Minimum Receiver Power: -9dBm
  • Power budget: 6.3dBdB
  • Receiver Overload: 5.1dBm
  • Power Consumption: =18W
  • Extinction Ratio: >3.5dB
  • Packaging Technology: COB (Chip on Board)
  • Modulation Format: PAM4
  • CDR (Clock and Data Recovery): TX & RX Built-in DSP
  • Protocols: IEE802.3ck, OSFP MSA, CMIS Rev 5.0
      Details:
  • Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 18W
  • Self-developed 53G EML Laser Chip to Ensure Production
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • High-speed Connectivity Compliant to IEEE 802.3ck
  • Hot Pluggable OSFP MSA Compliant
  • Support 2x400G Breakout for Higher Port Density
  • 8x106.25G PAM4 Retimed 2x400GAUI-4 C2M Electrical Interface
  • For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure

Features

Brand:
Generic
Color:
White
Conditions:
New
Warranty:
1 Year
