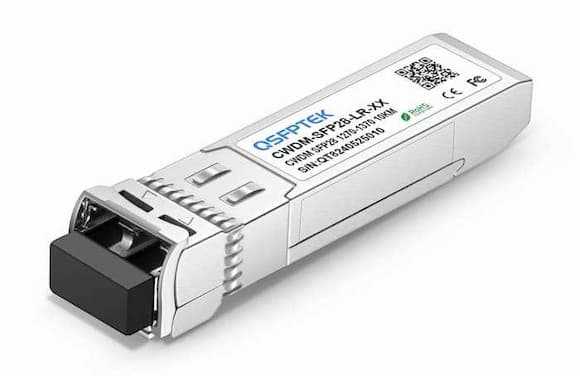

Generic CWDM-SFP25G-1290-10 Compatible 25G 1290nm CWDM SFP28 10km Optical Transceiver Module


Brand:

Specifications

   Product Details:
  • 5 Years Warranty
  • Brand: Generic
  • Model: CWDM-SFP25G-1290-10
   Overview:
  • The Generic CWDM-SFP25G-1290-10 compatible SFP28 optical transceiver is equipped with an LC duplex connector, reaching a link up to 10km over G.652/655. QSFPTEK manufactured 25GBase-CWDM SFP28 transceiver module is compliant with the SFP28 MSA and be fully compatible with most Cisco devices. This 25G CWDM SFP28 module, operating at a CWDM wavelength from 1270nm to 1370nm as specified by the ITU-T, is designed to deploy in the CWDM networking equipment in the metropolitan access networks or 5G prequel.
   Specification:
  • Vendor Name: QSFPTEK
  • Form Factor: SFP28
  • Data Rate: 25Gbps
  • Wavelength: 1290nm
  • Distance: 10km@OS2
  • Connector: LC Duplex
  • Cable Type: OS2 SMF
  • Transmitter Type: DFB CWDM
  • TX Power: -7~2dBm
  • Receiver Sensitivity: <-14dBm
  • Power Consumption: <1.3W
  • DDM: Support
  • Protocols: SFP28 MSA, CPRI, eCPRI


Features

Brand:
Generic
Conditions:
New
Warranty:
5 Years
