Home WDM, OTN & PON Open Line System Chassis & Accessories FS M6200-CH2U 7 Slots 2U Managed Chassis with Unloaded Platform, Redundant AC PSUs, Support WEB/SNMP Management (Grey & Black)

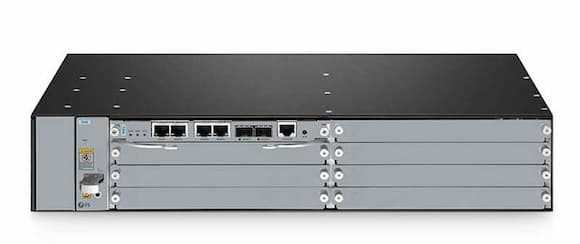

FS M6200-CH2U 7 Slots 2U Managed Chassis with Unloaded Platform, Redundant AC PSUs, Support WEB/SNMP Management (Grey & Black)


Brand:
FS

Specifications

   Product details:
  • 2 Years Warranty
  • Brand: FS
  • Model: M6200-CH2U
   Description:
  • M6200 series 2U managed chassis supports MUX/DEMUX/EDFA/OEO/OLP/DCM modules, and all critical components, powers, management module, and interface modules are hot-swappable, allowing online field replacement. It supports out-of-band OSC remote management and NMS management.
  • The M6200 series provides efficient and easy-to-deploy solutions. It has a variety of optical layer boards, supports 1+1 protection of the main control board, and visual management, and realizes seamless deployment safely and efficiently, which can be used in education, retail, entertainment, and other industries to solve the problems of high O&M costs and complex deployment.
   Features:
  • Redundant Hot-pluggable 2x AC Power Supply Units
  • Host Up to 7x Single Slot for M6200 Series Line Cards
  • Enables Simplified Operations with WEB Management System
  • Left-to-Right Airflow
  • Offers Field-replaceable Units, Ensuring no Service Impact during Failures
   Specifications:
  • Slot Count: 7-slot
  • Enclosure Type: Rack Mountable
  • Power Supply: Dual AC power (100V to 240V AC)
  • Hot-swappable: Yes (components can be replaced without shutting down the system)
  • Power Consumption: Less than 300W
  • Relative Humidity: 10% to 90% (non-condensing)
  • Management Type: WEB and SNMP v2 (Simple Network Management Protocol version 2)
  • Dimensions (HxWxD): 3.46 inches (88mm) x 17.48 inches (444mm) x 12.80 inches (325mm)
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Storage Temperature: -10°C to 70°C (14°F to 158°F)
   Network Interface:
  • 2 x SFP LAN Ports (100Base-X)
  • 4 x RJ45 LAN Ports (10/100Base-T)


Features

Brand:
FS
Color:
Grey & Black
Conditions:
New
Warranty:
2 Years
