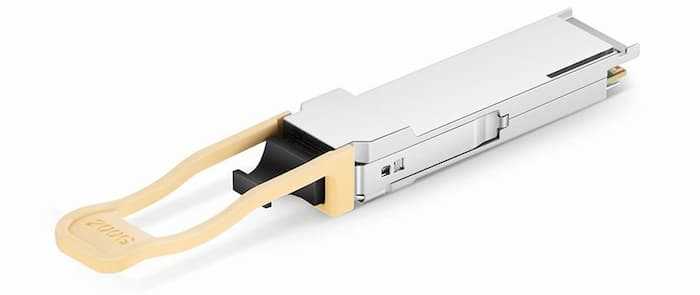

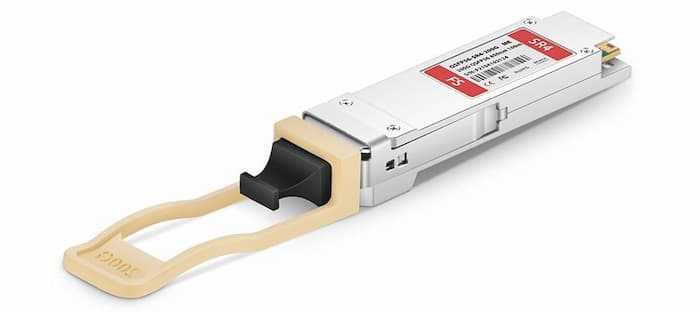

FS For Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module (Silver)


Brand:
No Brand

Specifications

   Product details:
  • 5 Years Warranty
  • Brand:No Brand
   Specification:
  • Max Data Rate: 200Gbps
  • Wavelength: 850nm
  • Max Cable Distance: 70m@OM3/100m@OM4

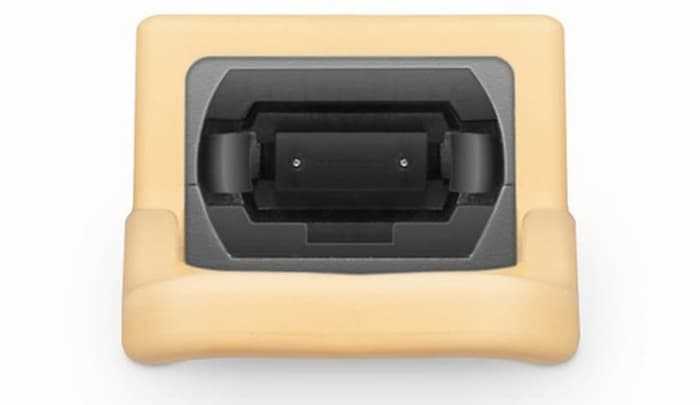

  • Connector: MTP/MPO-12 UPC
  • Media: MMF
  • Transmitter Type: VCSEL 850nm
  • Receiver Type: PIN
  • TX Power: -3~3dBm
  • Receiver Sensitivity: -6.5dBm
  • Powerbudget: 3.5dBm
  • Receiver Overload: 5dBm
  • Typical Power Consumption: =5W
  • Extinction Ratio: 3dB
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • CDR (Clock and Data Recovery): TX & RX Built-in CDR
  • Protocols: IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636
  • Application: 200G Ethernet, Data centers Interconnect, High performance computing
   Features:
  • Built-in Inphi Chip, Max. Power Consumption 5W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable QSFP56 Form Factor
  • I2C management interface Based on MSA SFF-8636
  • 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface



Features

Brand:
No Brand
Color:
Silver
Conditions:
New
Warranty:
5 Years
