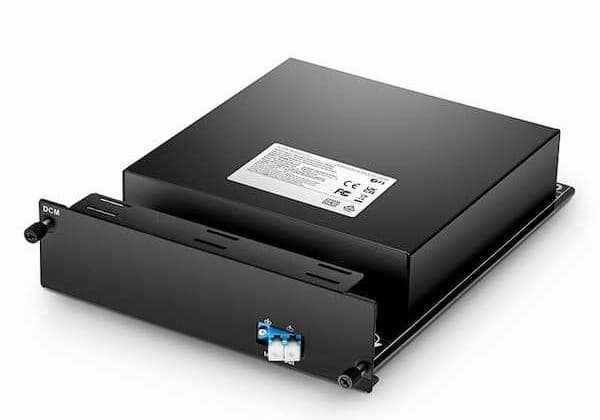

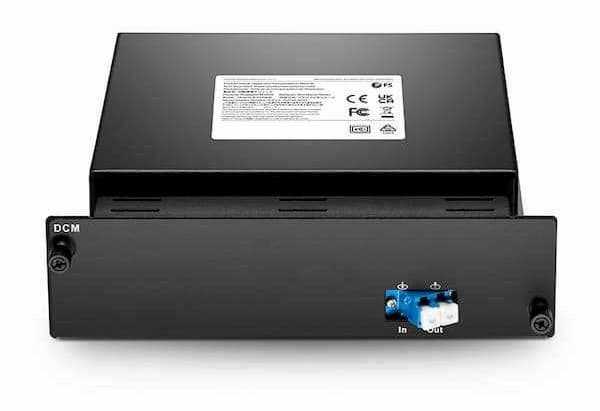

FS FMT40-DCM C-Band DCF-Based Passive Dispersion Compensation Module - 40km


Brand:
FS

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: FS
  • Model: FMT40-DCM
   Overview:
  • Long Distance DWDM Optimization for 40km
  • Low Insertion Loss =4.2dB, Low PMD =0.8ps
  • Completely Passive-No Powering Utilized
  • Low Latency =10µs, Ideal for Time-sensitive Networks
  • Plug-in Module for FMT Chassis to Realize Monitoring
  • Support SDH/SONET, DWDM, CATV System, etc.
   Specification:
  • Compensation Length: 40km
  • Wavelength Range: C-Band (1525nm-1565nm)
  • Dispersion @1545nm (ps/nm): -680±3%
  • Latency: 10µs
  • Insertion Loss: 4.2dB max
  • Return Loss: =45dB
  • Polarization Mode Dispersion: 0.8ps max
  • Polarization Dependence Loss: 0.1dB max
  • Noise Figure: 4.5dB (Typical)
  • Power Consumption: =1W
  • Fiber Type: G.652 and G.655
  • Connector: LC/UPC
  • Housing: Pluggable Module (Occupies 2 slots)
  • Chassis Type: FMT 1U, 2U, 4U Chassis
  • Operating Temperature: –5 to 55°C (23 to 131°F)
  • Storage Temperature: –40 to 85°C (-40 to 185°F)



Features

Brand:
FS
Conditions:
New
Warranty:
1 Year
