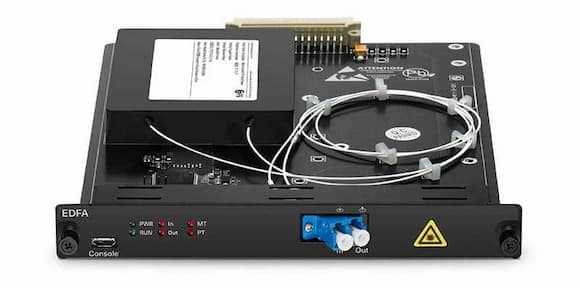

FS FMT26PA-51EDFA 26dB Gain Extended C-Band DWDM EDFA Pre-Amplifier (Black)


Brand:
FS

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: FS
  • Model: FMT26PA-51EDFA
   Overview:
  • Support 1528nm-1568nm for Broader Amplification Bandwidth
  • PA with an Optimum Gain of 26dB and 20dBm Output
  • 4.5dB Ultra Low Noise Figure to Improve Transmission Quality
  • Achieve Optical Power Attenuation Used with FS-VOA-C
  • Support Up to 48/96 Wavelengths
  • Support AGC Operation Mode
   Specification:
  • Amplifier Type: Pre-amplifier
  • Operation Wavelength: 1528nm~1568nm
  • Total Number of Channels Supported: 48CH/96CH
   Channel Spacing:
  • 100GHz(48CH)
  • 50GHz(96CH)
  • Optical Gain: 26dB
  • Gain Flatness: =1.5dB (1dB typical)
  • Input Power: -30dBm~5dBm
  • Saturated Output Power: 20dBm
  • Noise Figure: =6dB (4.5dB typical)
  • Connector: LC/UPC
  • Polarization Mode Dispersion (PMD): =0.3ps
  • Polarization Dependent Gain (PDG): =0.3dB
  • Power Consumption: =10W
  • Operation Mode: AGC (Automatic Gain Control)
  • Housing: Pluggable Module (Occupies 1 slot in FMT managed chassis)
  • Relative Humidity: 5% ~ 95%(Non-condensing)
   Temperature:
  • Operating: –10 to 60°C (14 to 140°F)
  • Storage: -20 to 75°C (-4 to 171°F)
  • Weight: 0.42kg


Features

Brand:
FS
Conditions:
New
Warranty:
1 Year
