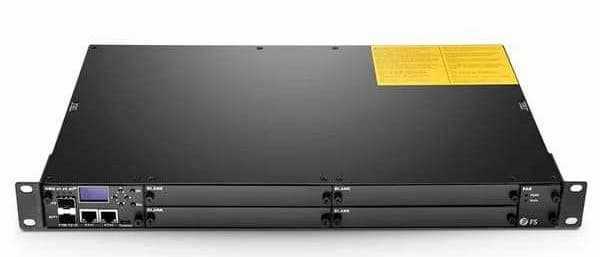

FS FMT-CH 4/8/16 Slots Managed Chassis Unloaded Platform Redundant AC/DC PSUs, Support SNMP Network Management


Brand:
FS

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: FS
  • Model: FMT-CH
   Overview:
  • 100V to 240VAC or 36V to 72VDC Power are Available to Meet Different Demands
  • Host Up to 16x Single Slot FMT Series Line Cards
  • Enables Simplified Operations with Monitor Online System
  • Right-to-Left Airflow
  • Offers Field-replaceable Units, Ensuring no Service Impact during Failures
   Specification:
  • Slot Count: 4/8/16 slots
  • Enclosure Type: Rack mountable
   Power Supply:
  • Dual AC power 100V-240VAC
  • Dual DC power 36V-72VDC
   Power Consumption:
  • 1U Chassis: <50W
  • 2/4U Chassis: 200W (AC), 100W (DC)
  • Management Type: SNMP, Monitor Online, Simple Management Tool
  • Network Interface: Console, SFP, RJ45 Ports
  • Relative Humidity(non-condensing): 5% ~ 95%
  • Operation Temperature: -5 to 60°C (23 to 140°F)
  • Storage Temperature: -40 to 80°C (-40 to 176°F)
  • Dimensions (HxWxD): 1U 1.75"x19"x11.81" (44.5x482.6x300mm)


Features

Brand:
FS
Conditions:
New
Warranty:
1 Year
