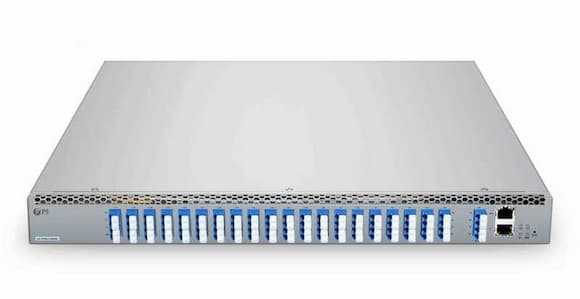

FS DCP910-D40M 40 Channels 100G DWDM PAM4 Open Line System C21-C60, 20 x 100G LC/UPC, Duplex


Brand:
FS

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: FS
  • Model: DCP910-D40M
   Overview:
  • Accepts DWDM Signal Format: PAM4 (20x100G), to Maximize the Usefulness of Fiber
  • Composed of VMUX, EDFA, TDCM,OCM, OTDR and Dispersion Compensator
  • Automated Configuration and Zero Touch Provisioning
  • 1U Rack Mount Delivers Unprecedented Cost Efficiency for 100G DCI
   Specification:
  • Channel: 40 Channels C21-C60
  • Channel Spacing: 100GHz (0.8nm)
  • Connector: LC/UPC (Duplex)
  • Client Side Connectors: PAM4 (100G)
  • Fiber distance: 0-80km
  • Power Budget: = 22dB
  • Fiber Types: G.652/G.655
  • Protocols: HTTPS/SSH
   Power Consumption:
  • Max during power up 100W
  • AC Fuse 85-127 VAC (4A) 200-240 VAC (2A)
  • DC Fuse -42 to -72 VDC (9A)
  • Management Type: WEB
  • Hot-swappable Power Supplies: 2 (1+1 Redundancy)
  • Fans: 4 Slots in 1 Unit Fans
  • Operating Temperature: 0 to 45°C(32 to 113?)
  • Cooling: Front to back
  • Humidity: 5% to 95%
  • Dimensions (HxWxD): 1.73"x17.32"x19.29" (44x440x490mm)


Features

Brand:
FS
Conditions:
New
Warranty:
1 Year
