Specifications

Product Overview:

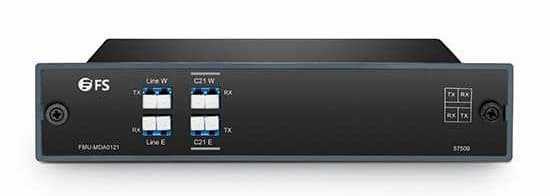

The FS Customized Dual Fiber DWDM Mux Demux is a high-performance optical multiplexing solution designed to maximize bandwidth and optimize fiber infrastructure in modern networks. Using Dense Wavelength Division Multiplexing (DWDM) technology, it enables multiple data channels to be transmitted simultaneously over a single fiber pair, significantly increasing network capacity.
With a dual fiber configuration, this device separates transmit (Tx) and receive (Rx) paths, ensuring stable and efficient signal transmission. Its customizable channel configuration allows it to be tailored to specific network requirements, providing flexibility for diverse deployment scenarios.
Engineered for passive operation, the unit requires no external power, reducing operational costs while maintaining consistent performance. Built with high-quality components and a durable metal enclosure, it ensures long-term reliability in data centers, telecom networks, and enterprise environments across Singapore.
Ideal for scalable and high-capacity optical networks, the FS Customized DWDM Mux Demux offers efficiency, flexibility, and dependable performance.

Features:

Plug-in, 1U Rack Mount and ABS Modules: The plug-in, 1U rack mount design allows easy installation into standard 19" racks for space-saving and efficient network management.
ABS modules offer additional installation flexibility, allowing users to choose the method that works best for their infrastructure.
Monitor Port: The monitor port is provided for troubleshooting, helping you keep an eye on the health of your network by easily checking the signal performance at any time.
1310nm Port for Increased Capacity: The 1310nm port allows for capacity expansion. This port supports wavelengths from 1260nm to 1360nm, which is commonly used to add more capacity to the network without requiring additional fiber, making it a future-proof option.
Passive Transparent Any Rate, Any Service Multiplexing: This system can multiplex signals at any rate and any service, ensuring compatibility with a wide range of network requirements and use cases. Since it is passive, it requires no power and does not interfere with the signals, making it simple and reliable.
ITU Grid Compliance: It is compliant with the ITU Grid, ensuring compatibility with other optical networking products that follow the international standards, which makes integration into existing networks seamless.
Supports Industrial Temperature Range: The device is built to withstand industrial temperatures, allowing it to operate in environments ranging from -40°C to 85°C (-40°F to 185°F). This is ideal for deployment in harsher or less controlled environments.

Specifications:

Number of Channels: The device supports configurations of 1, 2, 4, 8, or 16 channels, providing flexibility depending on your network size and requirements.
Operating Wavelength: Works within the 1520nm to 1570nm range, which is common for dense wavelength division multiplexing (DWDM) systems.
Channel Spacing: The system uses 100 GHz spacing (0.8nm) between channels, which is the typical spacing for high-density optical systems.
Channel Passband: The ± 0.11 nm passband ensures that each channel has sufficient bandwidth to accommodate high-speed data while minimizing interference between adjacent channels.
Line Type: It supports dual fiber line types, which means it can operate in both directions—West and/or East—offering flexibility for different network topologies.
Connector Options: LC, SC, FC, and ST connectors with both UPC (Ultra Polished Connector) and APC (Angled Polished Connector) options provide compatibility with various types of network interfaces.
Special Services: Monitor port and 1310nm port for enhanced troubleshooting and capacity expansion.
Housing: Available in FMU (Fiber Management Unit), 1U rack, and ABS module configurations, providing multiple mounting options for different installation environments.
Technology: Uses TFF (Thin Film Filter) technology, a common WDM technology known for low insertion loss and high isolation, ensuring signal integrity even in high-density environments.

Ideal Uses:

Telecommunications Networks: Ideal for telecom carriers who need to maximize the capacity of their fiber infrastructure with a flexible and scalable WDM solution.
Data Centers: This device is perfect for data centers that require high-density optical connections with the ability to easily expand network capacity through the 1310nm port.
Long-Haul and Metro Networks: It can be used in both long-haul and metropolitan networks, helping to increase bandwidth and maximize the use of existing fiber infrastructure.
Network Expansion: The 1310nm port makes it especially useful for network expansions, where you need to add capacity without new fiber installations.
Industrial Environments: Its wide operating temperature range makes it suitable for deployment in industrial settings where equipment might be exposed to harsh environmental conditions.

Why Choose This Product?

Flexibility in Deployment: The 1U rack mount and ABS module design allow for easy installation and flexible deployment methods in a variety of network setups, from telecom racks to custom modular systems.
Future-Proof Capacity Expansion: The 1310nm port allows you to easily increase capacity without additional fiber, providing future scalability and flexibility to meet growing network demands.
Compliant with ITU Standards: Compliance with the ITU Grid ensures that this device can be easily integrated into existing network infrastructures that follow the same optical networking standards.
High-Density, Low-Loss Technology: The TFF technology offers low insertion loss and high isolation, maintaining the integrity and quality of the multiplexed signals in high-density configurations.
Wide Temperature Range: With its industrial-grade operating temperature range, this product is ideal for use in both harsh environments and standard data center applications.
Easy Troubleshooting: The monitor port allows for easy troubleshooting and network diagnostics, helping to identify and resolve issues quickly and minimize downtime.
Cost-Effective and Passive Design: As a passive solution, it requires no power and introduces no interference, reducing operational costs and complexity while ensuring high reliability.

Features

Brand:

Color:

Black

Conditions:

New

Warranty:

1 Year

FS Customized Dual Fiber DWDM Mux Demux (Black) | Reliable & Efficient Multiplexing
