FS Customized Dual Fiber CWDM Mux Demux with 2.6dB Max IL (Black) | Reliable Wavelength Division Multiplexing
Previous
  1. FS Customized Dual Fiber CWDM Mux Demux with 2.6dB Max IL (Black) | Reliable Wavelength Division Multiplexing
Next

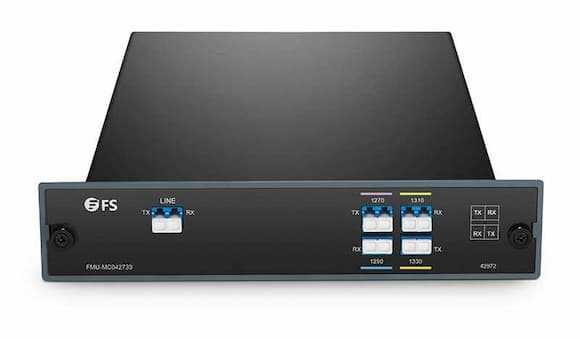

FS Customized Dual Fiber CWDM Mux Demux with 2.6dB Max IL (Black) | Reliable Wavelength Division Multiplexing

Brand:
FS

Specifications

   Product Overview:
  • The FS Customized Dual Fiber CWDM Mux Demux is a high-performance optical multiplexing solution designed to optimize fiber utilization and deliver reliable data transmission in modern networks. Using Coarse Wavelength Division Multiplexing (CWDM) technology, it enables multiple wavelengths to be transmitted over a single fiber pair, significantly increasing network capacity while reducing infrastructure costs.
  • With a low maximum insertion loss of =2.6dB, this device ensures minimal signal attenuation, maintaining high-quality transmission across network links. The dual fiber configuration separates transmit (Tx) and receive (Rx) signals, providing stable and efficient communication.
  • Its customizable channel configuration allows the device to be tailored to specific network requirements, offering flexibility for a wide range of applications. Designed for passive operation, it requires no power supply, making it energy-efficient and easy to maintain.
  • Built with durable metal housing and precision components, this CWDM Mux Demux is ideal for data centers, telecom networks, and enterprise infrastructures in Singapore requiring dependable and scalable optical solutions.
   Features:
  • Housing Options: FMU Plug-in Module: A flexible and modular design for easy integration into various network setups.
  • 1U 19" Rack Mount: Saves space and allows for easy installation into standard 1U rack spaces.
  • ABS Pigtailed Module: Offers additional installation flexibility for environments that require a compact and efficient solution.
  • Multiplexing of Multiple Channels: This product allows for multiplexing of multiple channels onto a single fiber pair, helping to maximize the use of existing fiber infrastructure and increase network capacity.
  • Wavelength Flexibility:  Supports a wide range of wavelengths for different applications, such as:
  • 1270-1330nm, 1410-1470nm, 1470-1530nm, 1510-1570nm, 1530-1590nm, 1550-1610nm, and more custom options. This flexibility allows the device to be used in various optical networks and to support different transmission standards.
  • Channel Configuration: Available in 4, 8, 16, or 18 channels configurations, providing scalability depending on the network's channel needs.
  • Channel Spacing & Bandwidth: 20nm channel spacing and ± 6.5nm bandwidth per channel provide a balanced solution between channel density and signal quality, ensuring efficient use of the available spectrum while reducing interference.
  • 1310/1550nm Port for Capacity Expansion: The 1310nm port (1260-1360nm bandwidth) and 1550nm port allow for capacity expansion, enabling the network to grow without additional fiber deployment.
  • Monitor Port: The monitor port helps in troubleshooting and system maintenance by allowing real-time monitoring of the channel's signal quality.
  • Passive Transparent Any Rate, Any Service: The device is passive and transparent, meaning it does not affect the data transmission and can handle any rate or service type. This ensures flexibility for different data formats or protocols.
  • Compliant with ITU Grid: Fully compliant with the ITU optical networking standards, ensuring seamless integration with other products and technologies in the network.
  • Operating Temperature Range: The unit can operate in -40 to 85°C (-40 to 185°F), making it suitable for deployment in a wide range of environmental conditions, including harsh industrial environments.
  • Storage Temperature: The product can be stored in temperatures between -40 to 85°C (-40 to 185°F), ensuring durability even in extreme conditions.
   Specifications:
  • Number of Channels: 4/8/16/18
  • Wavelength Range: 1270-1610nm
  • Channel Spacing: 20nm
  • Channel Bandwidth: ± 6.5nm
  • 1310nm Port Passband: 1260nm-1360nm
  • Technology: Free Space
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
   Why Choose This Product?
  • Space-Saving Design: The 1U rack mount design makes it a compact solution, saving valuable space in rack-mounted systems. It is ideal for applications where space efficiency is important.
  • High Channel Density: The device can support 4, 8, 16, or 18 channels, providing flexible options for different network needs, from small-scale networks to large, high-capacity systems.
  • Flexibility in Wavelength Options: With wavelength options spanning from 1270nm to 1610nm, the device can support a wide range of network configurations and standards, making it adaptable for various network requirements.
  • Future-Proof Expansion: The inclusion of 1310nm and 1550nm ports for expansion ensures that the system can grow with your network over time, making it a scalable investment.
  • Passive Operation: Being a passive device, it doesn’t introduce any power consumption or interference to the signal, making it an energy-efficient and reliable choice.
  • Wide Temperature Range: Its operating temperature range of -40°C to 85°C makes it suitable for both controlled data centers and harsh, outdoor environments.
  • Easy Troubleshooting: The monitor port allows engineers to monitor and maintain the system without disrupting the operation of the network, ensuring efficient and smooth operation.
  • ITU Grid Compliance: Fully ITU-compliant, ensuring that the device works seamlessly with other industry-standard optical networking products, making it easy to integrate into existing systems.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
1 Year
