Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 9 Channels CWDM Mux Demux with Single Fiber, Side-A & FMU Plug-in Module (Black)- High-Performance Optical Multiplexer

FS 9 Channels CWDM Mux Demux with Single Fiber, Side-A & FMU Plug-in Module (Black)- High-Performance Optical Multiplexer
Previous
  1. FS 9 Channels CWDM Mux Demux with Single Fiber, Side-A & FMU Plug-in Module (Black)- High-Performance Optical Multiplexer
Next

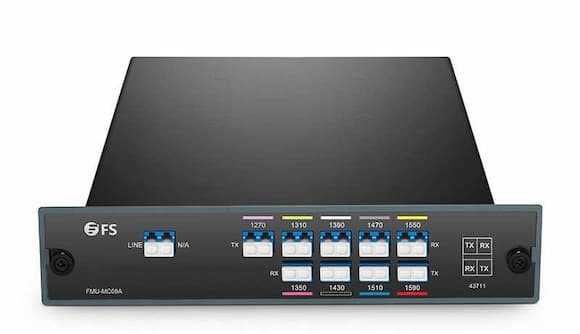

FS 9 Channels CWDM Mux Demux with Single Fiber, Side-A & FMU Plug-in Module (Black)- High-Performance Optical Multiplexer

Brand:
FS

Specifications

   Product Overview:
  • The FS 9-Channel CWDM Mux Demux with Single Fiber (Side-A) is a high-performance optical multiplexing solution designed to maximize fiber efficiency in modern network environments. By transmitting multiple wavelengths over a single fiber, it significantly reduces infrastructure costs while expanding network capacity.
  • Engineered as an FMU plug-in module, this device integrates seamlessly into compatible rack chassis, enabling flexible and scalable deployment. The Side-A configuration combines multiplexing and demultiplexing functions into one compact unit, making it ideal for applications where space and fiber availability are limited.
  • With passive operation and low insertion loss, this CWDM Mux Demux ensures reliable signal transmission without requiring power. Its robust design and high-quality components make it suitable for data centers, telecom networks, and enterprise infrastructures across Singapore.
   Features:
  • Multiplexing up to 9 Channels: Supports the multiplexing of up to 9 channels on a single fiber pair, allowing efficient use of the fiber and expanding the capacity of existing optical networks.
  • Low Insertion Loss: Typical Insertion Loss: 2.4dB, and Maximum Insertion Loss: 2.6dB, ensuring minimal signal degradation and efficient data transmission.
  • Hybrid C/DWDM System: Supports a hybrid C/DWDM system, allowing the addition of DWDM channels via the 1530nm/1550nm range. This provides flexibility for integrating additional dense wavelength division multiplexing (DWDM) channels to further expand the network capacity.
  • Compliant with ITU Grid: Fully compliant with the ITU-T G.694.2 CWDM grid, ensuring interoperability with other optical networking products and systems.
  • Customizable Solution: The device can be customized based on customer application requirements, providing tailored solutions for specific networking needs.
  • Passive Transparent Any Rate, Any Service Multiplexing: Provides transparent multiplexing, allowing any type of service (data, voice, video) at any rate to be transmitted without modification, making it versatile for a variety of applications.
   Specifications:
  • Brand: FS
  • Operating Temperature: Operating Temperature Range: -40 to 85°C (-40 to 185°F), making it suitable for use in harsh environments and a wide range of installation conditions.
  • Storage Temperature: Storage Temperature Range: -40 to 85°C (-40 to 185°F).
  • Power Handling: The device can handle up to 500mW, ensuring it can support high-power optical signals.
  • Dimensions (HxWxD): 1.73"x8.35"x10.04" (44x212x255mm), offering a compact design that fits into 1U rack-mount spaces or other small form-factor enclosures.
  • Passband Ripple: = 0.5dB, ensuring uniform signal quality across the passband.
  • Return Loss: = 45dB, indicating low signal reflection and maintaining signal quality.
  • Directivity: = 50dB, ensuring good isolation between channels and reducing crosstalk.
  • Polarization Dependent Loss (PDL): = 0.3dB, ensuring minimal loss due to polarization, which is essential for maintaining signal quality in optical systems.
  • Polarization Mode Dispersion (PMD): = 0.1ps, indicating excellent control of polarization mode dispersion, which is crucial for high-speed data transmission.
  • Channel Spacing: 20nm channel spacing, which is standard for CWDM systems, ensuring efficient separation of individual channels.
  • Channel Passband: ± 6.5nm passband, providing sufficient bandwidth for high-speed data transmission.
    Ideal Uses:
  • Metro and Regional Networks: Ideal for metro and regional CWDM networks, where maximizing the use of existing fiber is crucial for expanding network capacity and reducing costs.
  • Hybrid CWDM/DWDM Networks: Supports the integration of additional DWDM channels via the 1530nm/1550nm range, making it suitable for hybrid CWDM/DWDM systems, where both types of wavelength division multiplexing are used in the same network.
  • Short-Distance Optical Transmissions: Perfect for short-distance optical transmissions, such as local area networks (LANs), data centers, or campus networks.
  • Fiber Capacity Expansion: Ideal for fiber capacity expansion in existing networks, allowing operators to maximize the use of their current fiber infrastructure without the need for new fiber installations.
  • High-Density Services: Excellent for high-density services, such as video, voice, and data traffic, in networks that require efficient bandwidth usage.
   Why Choose This Product?
  • High Capacity: With the ability to multiplex up to 9 channels, the device allows operators to increase network capacity without laying additional fibers, which saves on installation costs.
  • Hybrid CWDM/DWDM Flexibility: The hybrid CWDM/DWDM system capability provides an easy upgrade path to DWDM systems, making it future-proof for evolving network demands.
  • Low Insertion Loss: The low insertion loss (2.4dB typical) ensures efficient signal transmission, maintaining network performance over longer distances.
  • Cost-Effective Expansion: This product offers a cost-effective solution to expand existing networks, enabling high-performance optical transmissions without the need for extensive infrastructure upgrades.
  • Customization Options: The device can be customized to meet the specific needs of various applications, offering flexibility in deployment and integration.
  • Reliability: Designed to operate within a wide temperature range, it ensures reliable operation in diverse environments, from indoor data centers to outdoor deployments.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
